単一サンプルからのさまざまな標的遺伝子の発現解析に AccuPower® qPCR Array System

カテゴリから探す > 分子生物 > 遺伝子発現解析 > 遺伝子発現解析アレイ

メーカー名：Bioneer Corporation

AccuPower® qPCR Array Systemは、BIONEER社が 20年以上にわたって蓄積したプライマーライブラリに基づいて設計された、がん、免疫、免疫チェックポイントに関するバイオマーカーを一度にスクリーニングするために構築された qPCRアレイパネルです。ユーザーは興味のあるテンプレートとマスターミックスを添加するだけで、すぐに実験を開始できます。

※Exicycler以外の機器を用いる場合は、特注プレートとなり追加費用が必要となる場合がございます。お持ちの機器との適合性につきまして事前にお問い合わせください。

特長

信頼性:すべてのプライマーは、MIQE⁽¹⁾ガイドラインに従って設計および検証されています。
フィデリティ：キットに含まれる qPCR プライマーは、90 ～ 110% の qPCR 効率と 1 回の実行あたり 100 コピーの検出能力を保証します。
使いやすいプロトコル：テンプレートとプライマーを加えるだけでPCRがスタートできます。
お手頃な価格：プライマーの設計、合成、効率テストにかかる時間とコストを削減します。

参考文献

Bustin, S.A., et al. 2009. The MIQE Guidelines: Minimum Information for Publication of Quantitative Real-Time PCR Experiments, Clinical Chemistry 55:4, 611-622.

商品ラインアップ

AccuPower® qPCR Array System: Human Cancer qPCR panel kit(ヒトがんパネル)
AccuPower®qPCR Array System: Human Immune qPCR Panel Kit
AccuPower®qPCR Array System: Mouse Immune qPCR Panel Kit(ヒト・マウス免疫パネル)

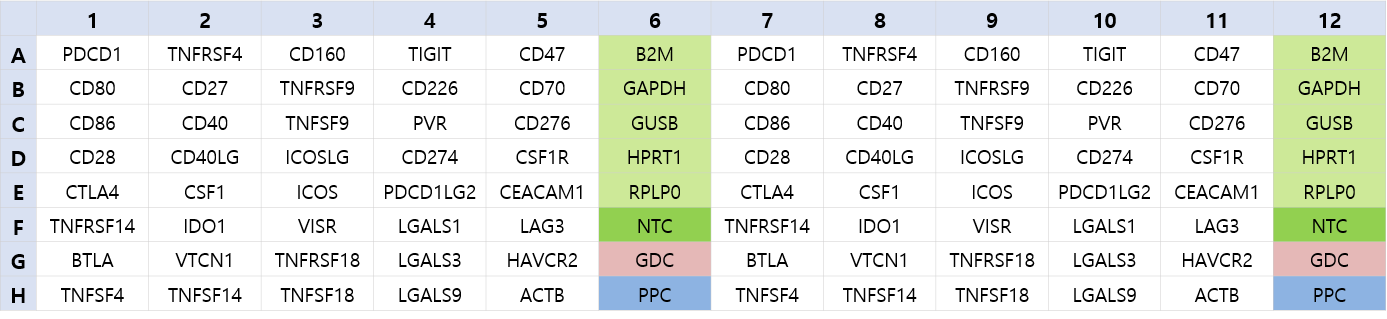

AccuPower® qPCR Array System: Human Immune Checkpoint Panel Kit(ヒト免疫チェックポイントパネル)
AccuPower® qPCR Array System: Human 5-plex Reference qPCR primer and probe set(ヒトリファレンス遺伝子パネル)

AccuPower® qPCR Array System: Human Cancer qPCR panel kit(ヒトがんパネル)

本パネルキットは、がん関連遺伝子として88種類のアポトーシス浸潤と転移、血管新生、がん遺伝子と腫瘍抑制因子、シグナル伝達と転写因子、細胞周期とDNA損傷修復、および8種類の修正遺伝子で構成されています。

(▼をクリックするとGene tableが開きます)

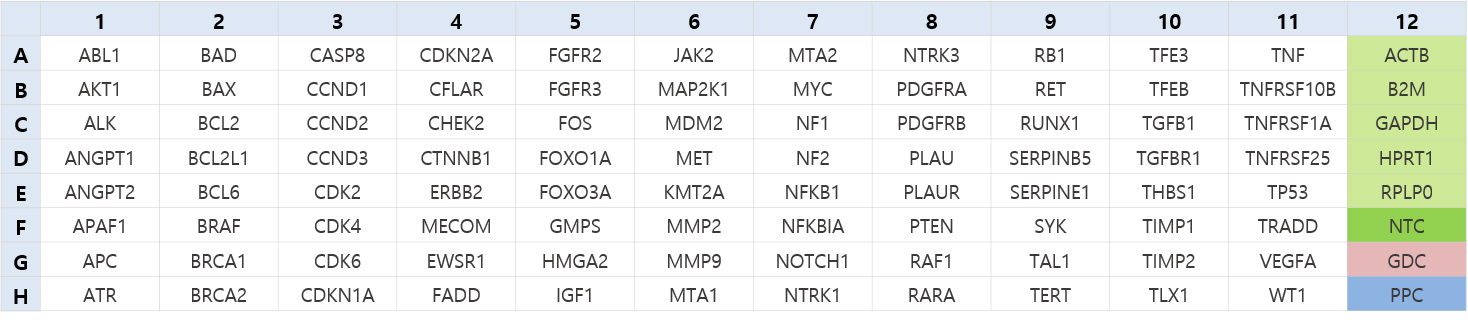

Gene table:Human cancer ▼

**human cancer**
Well	Gene symbol	Accession#	Description	Gene name
A1	ABL1	NM_005157, NM_007313	ABL proto-oncogene 1, non-receptor tyrosine kinase	RP11-83J21.1, ABL, JTK7, bcr/abl, c-ABL, c-ABL1, p150, v-abl
B1	AKT1	NM_001014431, NM_001014432, NM_005163	v-akt murine thymoma viral oncogene homolog 1	AKT, CWS6, PKB, PKB-ALPHA, PRKBA, RAC, RAC-ALPHA
C1	ALK	NM_004304	Anaplastic lymphoma receptor tyrosine kinase	CD246, NBLST3
D1	ANGPT1	NM_001146, NM_001199859	Angiopoietin 1	AGP1, AGPT, ANG1
E1	ANGPT2	NM_001118887, NM_001118888, NM_001147	Angiopoietin 2	AGPT2, ANG2
F1	APAF1	NM_001160, NM_013229, NM_181861, NM_181868, NM_181869	Apoptotic peptidase activating factor 1	APAF-1, CED4
G1	APC	NM_000038, NM_001127510, NM_001127511	Adenomatous polyposis coli	AI047805, AU020952, AW124434, CC1, Min, mAPC
H1	ATR	NM_001184	ATR serine/threonine kinase	FCTCS, FRP1, MEC1, SCKL, SCKL1
A2	BAD	NM_004322, NM_032989	BCL2-associated agonist of cell death	BBC2, BCL2L8
B2	BAX	NM_001291428, NM_001291429, NM_001291430, NM_001291431, NM_004324, NM_138761, NM_138763, NM_138764	BCL2-associated X protein	BCL2L4
C2	BCL2	NM_000633, NM_000657	B-cell CLL/lymphoma 2	Bcl-2, PPP1R50
D2	BCL2L1	NM_001191, NM_138578	BCL2-like 1	RP5-857M17.3, BCL-XL/S, BCL2L, BCLX, BCLXL, BCLXS, Bcl-X, PPP1R52, bcl-xL, bcl-xS
E2	BCL6	NM_001130845, NM_001134738, NM_001706	B-cell CLL/lymphoma 6	BCL5A, LAZ3, ZBTB27, ZNF51, BCL6
F2	BRAF	NM_004333	B-Raf proto-oncogene, serine/threonine kinase	B-RAF11, NS7, RAFB1, BRAF
G2	BRCA1	NM_007294, NM_007297, NM_007298, NM_007299, NM_007300	Breast cancer 1, early onset	BRCAI, BRCC1, BROVCA1, FANCS, IRIS, PNCA4, PPP1R53, PSCP, RNF53
H2	BRCA2	NM_000059	Breast cancer 2, early onset	RP11-298P3.4, BRCC2, BROVCA2, FACD, FAD, FAD1, FANCD, FANCD1, GLM3, PNCA2, XRCC11
A3	CASP8	NM_001080124, NM_001080125, NM_001228, NM_033355, NM_033356, NM_033358	Caspase 8, apoptosis-related cysteine peptidase	ALPS2B, CAP4, Casp-8, FLICE, MACH, MCH5
B3	CCND1	NM_053056	Cyclin D1	BCL1, D11S287E, PRAD1, U21B31
C3	CCND2	NM_001759	Cyclin D2	KIAK0002, MPPH3
D3	CCND3	NM_001136017, NM_001136125, NM_001136126, NM_001287427, NM_001287434, NM_001760	Cyclin D3	RP5-973N23.3
E3	CDK2	NM_001290230, NM_001798, NM_052827	Cyclin-dependent kinase 2	CDKN2, p33(CDK2)
F3	CDK4	NM_000075	Cyclin-dependent kinase 4	CMM3, PSK-J3
G3	CDK6	NM_001145306, NM_001259	Cyclin-dependent kinase 6	MCPH12, PLSTIRE
H3	CDKN1A	NM_000389, NM_001220777, NM_001220778, NM_001291549, NM_078467	Cyclin-dependent kinase inhibitor 1A (p21, Cip1)	CAP20, CDKN1, CIP1, MDA-6, P21, SDI1, WAF1, p21CIP1
A4	CDKN2A	NM_000077, NM_001195132, NM_058195, NM_058197	Cyclin-dependent kinase inhibitor 2A	ARF, CDK4I, CDKN2, CMM2, INK4, INK4A, MLM, MTS-1, MTS1, P14, P14ARF, P16, P16-INK4A, P16INK4, P16INK4A, P19, P19ARF, TP16
B4	CFLAR	NM_001127183, NM_001127184, NM_001202515, NM_001202516, NM_001202517, NM_001202518, NM_001202519, NM_003879	CASP8 and FADD-like apoptosis regulator	CASH, CASP8AP1, CLARP, Casper, FLAME, FLAME-1, FLAME1, FLIP, I-FLICE, MRIT, c-FLIP, c-FLIPL, c-FLIPR, c-FLIPS
C4	CHEK2	NM_001005735, NM_001257387, NM_007194, NM_145862	Checkpoint kinase 2	RP11-436C9.1, CDS1, CHK2, HuCds1, LFS2, PP1425, RAD53, hCds1
D4	CTNNB1	NM_001098209, NM_001098210, NM_001904	Catenin (cadherin-associated protein), beta 1, 88kDa	OK/SW-cl.35, CTNNB, MRD19, armadillo
E4	ERBB2	NM_001005862, NM_001289936, NM_001289937, NM_001289938, NM_004448	Erb-b2 receptor tyrosine kinase	CD340, HER-2, HER-2/neu, HER2, MLN 19, NEU, NGL, TKR1
F4	MECOM	NM_001105077, NM_001105078, NM_001163999, NM_001164000, NM_001205194, NM_004991, NM_005241	MDS1 and EVI1 complex locus	hCG_1640438, AML1-EVI-1, EVI1, MDS1, MDS1-EVI1, PRDM3
G4	EWSR1	NM_001163285, NM_001163286, NM_001163287, NM_005243, NM_013986	EWS RNA-binding protein 1	AC002059.7, EWS, bK984G1.4
H4	FADD	NM_003824	Fas (TNFRSF6)-associated via death domain	GIG3, MORT1
A5	FGFR2	NM_000141, NM_001144913, NM_001144914, NM_001144915, NM_001144916, NM_001144917, NM_001144918, NM_001144919, NM_022970, NM_023029	Fibroblast growth factor receptor 2	BBDS, BEK, BFR-1, CD332, CEK3, CFD1, ECT1, JWS, K-SAM, KGFR, TK14, TK25
B5	FGFR3	NM_000142, NM_001163213, NM_022965	Fibroblast growth factor receptor 3	ACH, CD333, CEK2, HSFGFR3EX, JTK4
C5	FOS	NM_005252	FBJ murine osteosarcoma viral oncogene homolog	AP-1, C-FOS, p55
D5	FOXO1	NM_002015	Forkhead box O1	FKH1, FKHR, FOXO1A
E5	FOXO3	NM_001455, NM_201559	Forkhead box O3	AF6q21, FKHRL1, FKHRL1P2, FOXO2A, FOXO3
F5	GMPS	NM_003875	Guanine monphosphate synthase	?
G5	HMGA2	NM_001300918, NM_001300919, NM_003483, NM_003484	High mobility group AT-hook 2	BABL, HMGI-C, HMGIC, LIPO, STQTL9
H5	IGF1	NM_000618, NM_001111283, NM_001111284, NM_001111285	Insulin-like growth factor 1	IGF-IA, IGFI, IGF1
A6	JAK2	NM_004972	Janus kinase 2	JTK10, THCYT3
B6	MAP2K1	NM_002755	Mitogen-activated protein kinase kinase 1	CFC3, MAPKK1, MEK1, MKK1, PRKMK1
C6	MDM2	NM_001145337, NM_001145339, NM_001145340, NM_001278462, NM_002392	MDM2 proto-oncogene, E3 ubiquitin protein ligase	ACTFS, HDMX, hdm2
D6	MET	NM_000245, NM_001127500	MET proto-oncogene, receptor tyrosine kinase	AUTS9, HGFR, RCCP2,c-Met
E6	KMT2A	NM_001197104, NM_005933	Lysine (K)-specific methyltransferase 2A	hCG_1732268, ALL-1, CXXC7, HRX, HTRX1, MLL, MLL/GAS7, MLL1, MLL1A, TET1-MLL, TRX1, WDSTS
F6	MMP2	NM_001127891, NM_001302508, NM_001302509, NM_001302510, NM_004530	Matrix metallopeptidase 2 (gelatinase A, 72kDa gelatinase, 72kDa type IV collagenase)	CLG4, CLG4A, MMP-2, MMP-II, MONA, TBE-1
G6	MMP9	NM_004994	Matrix metallopeptidase 9 (gelatinase B, 92kDa gelatinase, 92kDa type IV collagenase)	CLG4B, GELB, MANDP2, MMP-9
H6	MTA1	NM_001203258, NM_004689	Metastasis associated 1	?
A7	MTA2	NM_004739	Metastasis associated 1 family, member 2	MTA1L1, PID
B7	MYC	NM_002467	v-myc avian myelocytomatosis viral oncogene homolog	MRTL, bHLHe39, c-Myc, MYCC
C7	NF1	NM_000267, NM_001042492, NM_001128147	Neurofibromin 1	NFNS, VRNF, WSS
D7	NF2	NM_000268, NM_016418, NM_181825, NM_181828, NM_181829, NM_181830, NM_181831, NM_181832, NM_181833	Neurofibromin 2 (merlin)	ACN, BANF, SCH
E7	NFKB1	NM_001165412, NM_003998	Nuclear factor of kappa light polypeptide gene enhancer in B-cells 1	EBP-1, KBF1, NF-kB1, NF-kappa-B, NF-kappaB, NFKB-p105, NFKB-p50, NFkappaB, p105, p50
F7	NFKBIA	NM_020529	Nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor, alpha	IKBA, MAD-3, NFKBI
G7	NOTCH1	NM_017617	Notch 1	AOS5, AOVD1, TAN1, hN1
H7	NTRK1	NM_001007792, NM_001012331, NM_002529	Neurotrophic tyrosine kinase, receptor, type 1	MTC, TRK, TRK1, TRKA, Trk-A, p140-TrkA
A8	NTRK3	NM_001007156, NM_001012338, NM_001243101, NM_002530	Neurotrophic tyrosine kinase, receptor, type 3	TRKC, gp145(trkC)
B8	PDGFRA	NM_006206	Platelet-derived growth factor receptor, alpha polypeptide	CD140A, PDGFR-2, PDGFR2, RHEPDGFRA
C8	PDGFRB	NM_002609	Platelet-derived growth factor receptor, beta polypeptide	CD140B, IBGC4, IMF1, JTK12, PDGFR, PDGFR-1, PDGFR1
D8	PLAU	NM_001145031, NM_002658	Plasminogen activator, urokinase	RP11-417O11.1, ATF, BDPLT5, QPD, UPA, URK, u-PA
E8	PLAUR	NM_001005376, NM_001005377, NM_001301037, NM_002659	Plasminogen activator, urokinase receptor	CD87, U-PAR, UPAR, URKR
F8	PTEN	NM_000314	Phosphatase and tensin homolog	10q23del, BZS, CWS1, DEC, GLM2, MHAM, MMAC11, TEP1, PTEN
G8	RAF1	NM_002880	Raf-1 proto-oncogene, serine/threonine kinase	CMD1NN, CRAF, NS5, Raf-1, c-Raf
H8	RARA	NM_000964, NM_001024809, NM_001145301, NM_001145302	Retinoic acid receptor, alpha	NR1B1, RAR
A9	RB1	NM_000321	Retinoblastoma 1	RP11-174I10.1, OSRC, PPP1R130, RB, p105-Rb, pRb, pp110
B9	RET	NM_020630, NM_020975	Ret proto-oncogene	CDHF12, CDHR16, HSCR1, MEN2A, MEN2B, MTC1, PTC-ELE1, RET51, RET
C9	RUNX1	NM_001001890, NM_001122607, NM_001754	Runt-related transcription factor 1	AML1, AML1-EVI-1, AMLCR1, CBFA2, EVI-1, PEBP2aB
D9	SERPINB5	NM_002639	Serpin peptidase inhibitor, clade B (ovalbumin), member 5	PI5, maspin
E9	SERPINE1	NM_000602	Serpin peptidase inhibitor, clade E (nexin, plasminogen activator inhibitor type 1), member 1	PAI, PAI-1, PAI1, PLANH1
F9	SYK	NM_001135052, NM_001174167, NM_001174168, NM_003177	Spleen tyrosine kinase	p72-Syk
G9	TAL1	NM_001287347, NM_001290403, NM_001290404, NM_001290405, NM_001290406, NM_003189	T-cell acute lymphocytic leukemia 1	SCL, TCL5, bHLHa17, tal-1
H9	TERT	NM_001193376, NM_198253	Telomerase reverse transcriptase	CMM9, DKCA2, DKCB4, EST2, PFBMFT1, TCS1, TP2, TRT, hEST2, hTRT
A10	TFE3	NM_001282142, NM_006521	Transcription factor binding to IGHM enhancer 3	RCCP2, RCCX1, TFEA, bHLHe33
B10	TFEB	NM_001167827, NM_001271943, NM_001271944, NM_001271945, NM_007162	Transcription factor EB	RP4-696P19.3, ALPHATFEB, BHLHE35, TCFEB
C10	TGFB1	NM_000660	Transforming growth factor, beta 1	CED, DPD1, LAP, TGFB, TGFbeta
D10	TGFBR1	NM_001130916, NM_004612	Transforming growth factor, beta receptor 1	RP11-96L7.1, AAT5, ACVRLK4, ALK-5, ALK5, ESS1, LDS1, LDS1A, LDS2A, MSSE, SKR4, TGFR-1, tbetaR-I
E10	THBS1	NM_003246	Thrombospondin 1	THBS, THBS-1, TSP, TSP-1, TSP1
F10	TIMP1	NM_003254	TIMP metallopeptidase inhibitor 1	RP1-230G1.3, CLGI, EPA, EPO, HCI, TIMP
G10	TIMP2	NM_003255	TIMP metallopeptidase inhibitor 2	CSC-21K, DDC8
H10	TLX1	NM_001195517, NM_005521	T-cell leukemia homeobox 1	HOX11, TCL3
A11	TNF	NM_000594	Tumor necrosis factor	DADB-70P7.1, DIF-alpha, TNFA, TNFSF2, TNF
B11	TNFRSF10B	NM_003842, NM_147187	Tumor necrosis factor receptor superfamily, member 10b	UNQ160/PRO186, CD262, DR5, KILLER, KILLER/DR5, TRAIL-R2, TRAILR2, TRICK2, TRICK2A, TRICK2B, TRICKB, ZTNFR9
C11	TNFRSF1A	NM_001065	Tumor necrosis factor receptor superfamily, member 1A	CD120a, FPF, MS5, TBP1, TNF-R, TNF-R-I, TNF-R55, TNFAR, TNFR1, TNFR1-d2, TNFR55, TNFR60, p55, p55-R, p60
D11	TNFRSF25	NM_001039664, NM_003790, NM_148965, NM_148966, NM_148967, NM_148970	Tumor necrosis factor receptor superfamily, member 25	RP4-650H14.2, APO-3, DDR3, DR3, LARD, TNFRSF12, TR3, TRAMP, WSL-1, WSL-LR
E11	TP53	NM_000546, NM_001126112, NM_001126113, NM_001126114, NM_001126115, NM_001126116, NM_001126117, NM_001126118, NM_001276695, NM_001276696, NM_001276697, NM_001276698, NM_001276699, NM_001276760, NM_001276761	Tumor protein p53	BCC7, LFS1, P53, TRP53
F11	TRADD	NM_003789	TNFRSF1A-associated via death domain	Hs.89862
G11	VEGFA	NM_001025366, NM_001025367, NM_001025368, NM_001025369, NM_001025370, NM_001033756, NM_001171622, NM_001171623, NM_001171624, NM_001171625, NM_001171626, NM_001171627, NM_001171628, NM_001171629, NM_001171630, NM_001204384, NM_001204385, NM_001287044, NM_003376	Vascular endothelial growth factor A	RP1-261G23.1, MVCD1, VEGF, VPF
H11	WT1	NM_000378, NM_001198551, NM_001198552, NM_024424, NM_024426	Wilms tumor 1	AWT1, EWS-WT1, GUD, NPHS4, WAGR, WIT-2, WT33

品名	メーカー	品番	包装	希望販売価格
AccuPower^(R) qPCR Array System: Cancer qPCR panel kit, Human	BIN	S-6042-PH1	1 KIT [96 well plate]	お問い合わせ

＊本製品には、分注済みの qPCR プライマーとプローブのみが含まれているため、マスターミックス(品番：K-6603)を別途購入する必要があります。

AccuPower®qPCR Array System: Immune qPCR Panel Kit (Human, Mouse)(ヒト・マウス免疫パネル)

本パネルキットは、複数の免疫バイオマーカーを一度にスクリーニングするために構築された qPCR アレイパネルです。88の免疫バイオマーカー、5つの参照遺伝子、および 3つのコントロールプライマーで構成しています。ヒト免疫遺伝子パネルとマウス免疫遺伝子パネルを取り揃えております。

(▼をクリックするとGene tableが開きます)

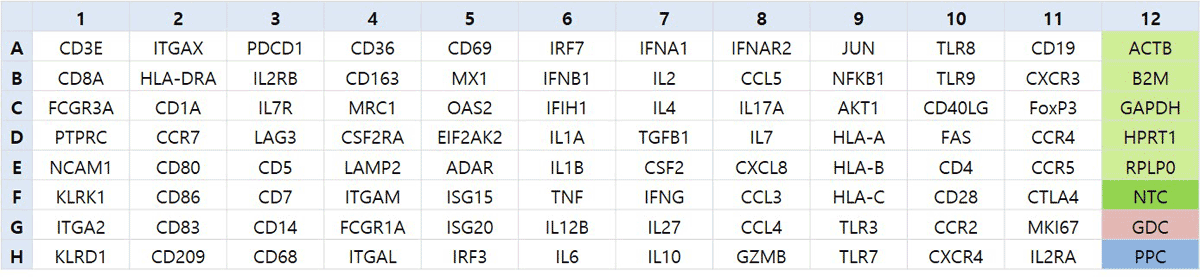

Gene table:Human Immune ▼

**human Immune**
#	Gene symbol	Accession #
1	CD3E	NM_000733.3
2	CD8A	NM_001145873.1, NM_001768.6, NM_171827.3
3	FCGR3A	NM_000569.6, NM_001127592.1, NM_001127593.1, NM_001127595.1, NM_001127596.1, NM_001127596.1, NM_001127595.1, NM_001127593.1, NM_001127592.1, NM_000569.6
4	PTPRC	NM_002838.4
5	NCAM1	NM_001242608.1, NM_001242607.1, NM_001076682.3, NM_181351.4, NM_000615.6
6	KLRK1	NM_007360.3, NM_001199805.1
7	ITGA2	NM_002203.3
8	KLRD1	NM_001114396.1, NM_002262.3
9	ITGAX	NM_000887.4
10	HLA-DRA	NM_019111.4
11	CD1A	NM_001763.2
12	CCR7	NM_001838.3
13	CD80	NM_005191.3
14	CD86	NM_001206925.1, NM_176892.1, NM_175862.4, NM_006889.4
15	CD83	NM_001251901.1, NM_001040280.1, NM_004233.3
16	CD209	NM_001144899.1, NM_001144897.1, NM_001144895.1, NM_021155.3
17	PDCD1	NM_005018.2
18	IL2RB	NM_000878.3, NM_001172226.2, NM_001172225.2
19	IL7R	NM_002185.3
20	LAG3	NM_002286.5
21	CD5	NM_014207.3
22	CD7	NM_006137.6
23	CD14	NM_001174105.1 , NM_001174104.1 , NM_001040021.2 , NM_000591.3
24	CD68	NM_001040059.1 , NM_001251.2
25	CD36	NM_001289909.1 , NM_001289908.1 , NM_001127444.1 , NM_001127443.1, NM_000072.3 , NM_001001547.2, NM_001001548.2
26	CD163	NM_203416.3
27	MRC1	NM_002438.3
28	CSF2RA	NM_001161531.1, NM_001161530.1 , NM_001161529.1 ,NM_172249.2 ,NM_172247.2 , NM_172246.2, NM_172245.2 ,NM_006140.4
29	LAMP2	NM_002294.2
30	ITGAM	NM_001145808.1, NM_000632.3
31	FCGR1A	NM_000566.3, NM_001301128.1 , NM_012301.3
32	ITGAL	NM_002209.2
33	CD69	NM_001781.2
34	MX1	NM_001282920.1, NM_001178046.2, NM_002462.4, NM_001144925.2
35	OAS2	NM_002535.2, NM_016817.2
36	EIF2AK2	NM_001135652.2, NM_002759.3, NM_001135651.2
37	ADAR	NM_001025107.2, NM_001193495.1, NM_015841.3, NM_015840.3, NM_001111.4
38	ISG15	NM_005101.3
39	ISG20	NM_002201.4
40	IRF3	NM_001197127.1, NM_001197125.1, NM_001197124.1, NM_001197123.1, NM_001197122.1, NM_001571.5
41	IRF7	NM_001572.3, NM_004031.2, NM_004029.2
42	IFNB1	NM_002176.2
43	IFIH1	NM_022168.3
44	IL1A	NM_000575.3
45	IL1B	NM_000576.2
46	TNF	NM_000594.3
47	IL12B	NM_002187.2
48	IL6	NM_000600.3
49	IFNA1	NM_024013.2
50	IL2	NM_000586.3, NM_015057.4
51	IL4	NM_172348.2 , NM_000589.3 , NM_032340.3
52	TGFB1	NM_000660.5
53	CSF2	NM_000758.3
54	IFNG	NM_000619.2
55	IL27	NM_145659.3
56	IL10	NM_000572.2
57	IFNAR2	NM_001289128.1, NM_001289126.1, NM_001289125.1, NM_207585.2
58	CCL5	NM_001278736.1 , NM_002985.2
59	IL17A	NM_002190.2
60	IL7	NM_000880.3, NM_001199886.1, NM_001199887.1, NM_001199888.1
61	CXCL8	NM_000584.3
62	CCL3	NM_002983.2
63	CCL4	NM_207007.3 , NM_002984.2, NM_001291475.1, NM_001291473.1 , NM_001291472.1 ,NM_001291471.1, NM_001291470.1, NM_001291469.1,NM_001291468.1
64	GZMB	NM_004131.4
65	JUN	NM_002228.3
66	NFKB1	NM_001165412.1 , NM_003998.3
67	AKT1	NM_001014432.1, NM_001014431.1 , NM_005163.2
68	HLA-A	NM_002116.7, NM_001242758.1 , NM_012471.2
69	HLA-B	NM_005514.6, NM_002116.7, NM_001242758.1, NM_002127.5
70	HLA-C	NM_001243042.1, NM_002117.6
71	TLR3	NM_003265.2
72	TLR7	NM_016562.3
73	TLR8	NM_016610.3, NM_138636.5
74	TLR9	NM_017442.3
75	CD40LG	NM_000074.2
76	FAS	NM_152872.2, NM_152871.2, NM_000043.4
77	CD4	NM_001195017.2, NM_001195016.2 , NM_001195015.2 , NM_000616.4, NM_001195014.2
78	CD28	NM_001243078.1, NM_001243077.1, NM_006139.3
79	CCR2	NM_001123041.2
80	CXCR4	NM_003467.2, NM_001008540.1
81	CD19	NM_001178098.1, NM_001770.5
82	CXCR3	NM_001142797.1, NM_001504.1
83	FoxP3	NM_001114377.1, NM_014009.3
84	CCR4	NM_005508.4
85	CCR5	NM_000579.3, NM_001100168.1
86	CTLA4	NM_001037631.2 , NM_005214.4
87	MKI67	NM_002417.4
88	IL2RA	NM_000417.2

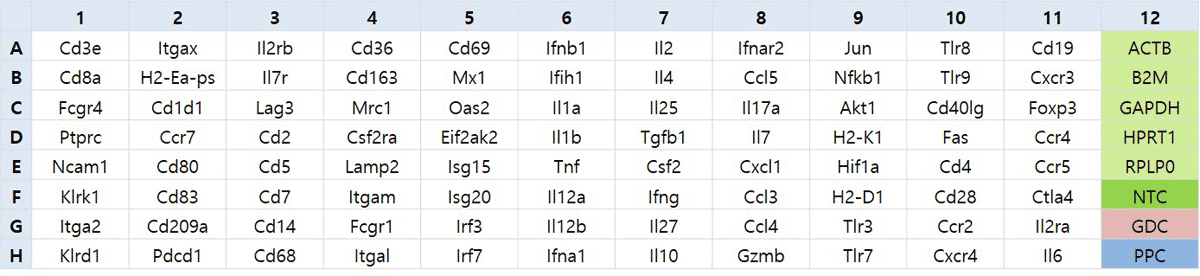

Gene table:Mouse Immune ▼

**human Immune**
#	Gene	Gene bank (2015-02-16)
1	Cd3e	NM_007648.4
2	Cd8a	NM_001081110.2 NM_009857.1
3	Fcgr4	NM_144559.2
4	Ptprc	NM_001111316.2, NM_011210.4, NM_001268286.1
5	Ncam1	NM_001081445.1 NM_001113204.1 NM_010875.3
6	Klrk1	NM_001286018.1 NM_033078.4 NM_001083322.2
7	Itga2	NM_008396.2
8	Klrd1	NM_010654.3
9	Itgax	NM_021334.2
10	H2-Ea-ps	NM_010381.2
11	Cd1d1	NM_007639.3
12	Ccr7	NM_001301713.1, NM_007719.2
13	Cd80	NM_009855.2
14	Cd83	NM_009856.3, NM_001289915.1
15	Cd209a	NM_133238.5
16	Pdcd1	NM_008798.2
17	Il2rb	NM_008368.4
18	Il7r	NM_008372.4
19	Lag3	NM_008479.2
20	Cd2	NM_013486.2
21	Cd5	NM_007650.3
22	Cd7	NM_009854.2
23	Cd14	NM_009841.4
24	Cd68	NM_001291058.1
25	Cd36	NM_001159558.1, NM_001159557.1, NM_001159556.1, NM_001159555.1, NM_007643.4
26	Cd163	NM_001170395.1, NM_053094.2
27	Mrc1	NM_008625.2
28	Csf2ra	NM_009970.2
29	Lamp2	NM_010685.4, NM_001017959.2, NM_001290485.1
30	Itgam	NM_008401.2, NM_001082960.1
31	Fcgr1	NM_010186.5
32	Itgal	NM_001253874.1, NM_001253873.1, NM_001253872.1, NM_008400.3
33	Cd69	NM_001033122.3
34	Mx1	NM_010846.1
35	Oas2	NM_145227.3
36	Eif2ak2	NM_011163.4
37	Isg15	NM_015783.3
38	Isg20	NM_001113527.1 NM_001291220.1 NM_001291221.1 NM_020583.5
39	Irf3	NM_016849.4
40	Irf7	NM_001252601.1NM_016850.3NM_001252600.1
41	Ifnb1	NM_010510.1
42	Ifih1	NM_001164477.1, NM_027835.3
43	Il1a	NM_010554.4
44	Il1b	NM_008361.3
45	Tnf	NM_001278601.1, NM_013693.3
46	Il12a	NM_001159424.2, NM_008351.3
47	Il12b	NM_001303244.1
48	Ifna1	NM_010502.2
49	Il2	NM_008366.3
50	Il4	NM_021283.2
51	Il25	NM_080729.3
52	Tgfb1	NM_011577.1
53	Csf2	NM_009969.4
54	Ifng	NM_008337.3
55	Il27	NM_145636.1
56	Il10	NM_010548.2
57	Ifnar2	NM_010509.2, NM_001110498.1
58	Ccl5	NM_013653.3
59	Il17a	NM_010552.3
60	Il7	NM_008371.4
61	Cxcl1	NM_008176.3
62	Ccl3	NM_011337.2
63	Ccl4	NM_013652.2
64	Gzmb	NM_013542.2
65	Jun	NM_010591.2
66	Nfkb1	NM_008689.2
67	Akt1	NM_001165894.1, NM_009652.3
68	H2-K1	NM_001001892.2
69	Hif1a	NM_010431.2
70	H2-D1	NM_010380.3
71	Tlr3	NM_126166.4
72	Tlr7	NM_001290758.1, NM_001290755.1, NM_001290757.1, NM_001290756.1, NM_133211.4
73	Tlr8	NM_133212.2
74	Tlr9	NM_031178.2
75	Cd40lg	NM_011616.2
76	Fas	NM_001146708.1, NM_007987.2
77	Cd4	NM_013488.2
78	Cd28	NM_007642.4
79	Ccr2	NM_009915.2
80	Cxcr4	NM_009911.3
81	Cd19	NM_009844.2
82	Cxcr3	NM_009910.2
83	Foxp3	NM_001199348.1, NM_001199347.1, NM_054039.2
84	Ccr4	NM_009916.2
85	Ccr5	NM_009917.5
86	Ctla4	NM_001281976.1, NM_009843.4
87	Il2ra	NM_008367.3
88	Il6	NM_031168.1

品名	メーカー	品番	包装	希望販売価格
AccuPower^(R) qPCR Array System: Immune qPCR Panel Kit, Human	BIN	S-6042-PH2	1 KIT	お問い合わせ
AccuPower^(R) qPCR Array System: Immune qPCR Panel Kit, Mouse	BIN	S-6042-PM2	1 KIT	お問い合わせ

＊本製品には、分注済みの qPCR プライマーとプローブのみが含まれているため、マスターミックス(品番：K-6603)を別途購入する必要があります。

AccuPower® qPCR Array System: Human Immune Checkpoint Panel Kit(ヒト免疫チェックポイントパネル)

本パネルキットは、39個のヒト免疫チェックポイント関連遺伝子と6つの参照遺伝子と3つのコントロールプライマーで構成されています。

(▼をクリックするとGene tableが開きます)

Gene table:Human Immune Checkpoint ▼

**human Immune Checkpoit**
#	Gene symbol	Description
1	PDCD1	programmed cell death 1
2	CD80	CD80 molecule
3	CD86	CD86 molecule
4	CD28	CD28 molecule
5	CTLA4	Cytotoxic T-lymphocyte-associated protein 4
6	TNFRSF14	Tumor necrosis factor receptor superfamily, member 14
7	BTLA	B and T lymphocyte associated
8	TNFSF4	Tumor necrosis factor (ligand) superfamily, member 4
9	TNFRSF4	Tumor necrosis factor receptor superfamily, member 4
10	CD27	CD27 molecule
11	CD40	CD40 molecule, TNF receptor superfamily member 5
12	CD40LG	CD40 ligand
13	CSF1	Colony stimulating factor 1
14	IDO1	Indoleamine 2,3-dioxygenase 1
15	VTCN1	V-set domain containing T cell activation inhibitor 1
16	TNFSF14	tumor necrosis factor superfamily member 14 [ Homo sapiens (human) ]
17	CD160	CD160 molecule
18	TNFRSF9	tumor necrosis factor receptor superfamily member 9
19	TNFSF9	tumor necrosis factor superfamily member 9
20	ICOSLG	inducible T-cell co-stimulator ligand
21	ICOS	inducible T-cell co-stimulator
22	VISR	V-set immunoregulatory receptor
23	TNFRSF18	tumor necrosis factor receptor superfamily member 18
24	TNFSF18	tumor necrosis factor superfamily member 18
25	TIGIT	T-cell immunoreceptor with Ig and ITIM domains
26	CD226	CD226 molecule
27	PVR	poliovirus receptor
28	CD274	CD274 molecule
29	PDCD1LG2	programmed cell death 1 ligand 2
30	LGALS1	lectin, galactoside-binding, soluble, 1
31	LGALS3	Lectin, galactoside-binding, soluble, 3
32	LGALS9	Lectin, galactoside-binding, soluble, 9
33	CD47	CD47 molecule
34	CD70	CD70 molecule
35	CD276	CD276 molecule
36	CSF1R	Colony stimulating factor 1 receptor
37	CEACAM1	Carcinoembryonic antigen-related cell adhesion molecule 1 (biliary glycoprotein
38	LAG3	Lymphocyte-activation gene 3
39	HAVCR2	Hepatitis A virus cellular receptor 2

品名	メーカー	品番	包装	希望販売価格
AccuPower^(R) qPCR Array System: Immune Checkpoint Panel Kit, Human	BIN	S-6042-PH3	1 KIT	お問い合わせ

＊本製品には、分注済みの qPCR プライマーとプローブのみが含まれているため、マスターミックス(品番：K-6603)を別途購入する必要があります。

AccuPower® qPCR Array System: Human 5-plex Reference qPCR primer and probe set(ヒトリファレンス遺伝子パネル)

正確な相対定量分析のためには、内部対照として使用される参照遺伝子が確実に発現し、発現量がサンプル中の Total RNA の量と密接に関連している必要があります。本セットでは、代表的なリファレンス遺伝子15種類をMultiplex（5プレックス）として提供しており、少量のサンプルでも1回の実験で15種類すべてのリファレンス遺伝子を確認することができます。

(▼をクリックするとGene tableが開きます)

Gene table:Human Reference ▼

**human Reference**
#	Gene symbol	Accession number	Description
A set	ACTB	NM_001101.3	actin, beta
	B2M	NM_004048.2	beta-2-microglobulin
	TFRC	NM_001128148.1, NM_003234.2	transferrin receptor
	GUSB	NM_000181.3, NM_001284290.1, NM_001293104.1, NM_001293105.1	glucuronidase, beta
	HPRT1	NM_000194.2	hypoxanthine phosphoribosyltransferase 1
B set	GAPDH	NM_001256799.2, NM_001289745.1, NM_001289746.1, NM_002046.5	glyceraldehyde-3-phosphate dehydrogenase
	TUBB	NM_001293212.1, NM_001293213.1, NM_001293214.1, NM_001293215.1, NM_001293216.1, NM_178014.3	tubulin, beta class I
	RPLP0	NM_001002.3, NM_053275.3	ribosomal protein, large, P0
	PPIA	NM_001300981.1, NM_021130.4	peptidylprolyl isomerase A (cyclophilin A)
	G6PD	NM_000402.4, NM_001042351.2	glucose-6-phosphate dehydrogenase
C set	TBP	NM_001172085.1, NM_003194.4	TATA box binding protein
	PGK1	NM_000291.3	phosphoglycerate kinase 1
	YWHAZ	NM_001135699.1, NM_001135700.1, NM_001135701.1, NM_001135702.1, NM_003406.3, NM_145690.2	tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein, zeta
	ALAS1	NM_000688.5, NM_001304443.1, NM_001304444.1, NM_199166.2	5'-aminolevulinate synthase 1
	RPL13A	NM_001270491.1, NM_012423.3	ribosomal protein L13a
