本キットは、遊離リン酸を検出する BIOMOL GREEN を組み合わせた、サイクリックヌクレオチド・ホスホエステラーゼ活性やその阻害剤、モジュレーターをスクリーニングするキットです。アッセイ原理は、サイクリックヌクレオチド・ホスホジエステラーゼがその基質である cAMP/cGMP を加水分解し、生じた 5'-ヌクレオチドをさらに 5'-ヌクレオチダーゼによりヌクレオシドとリン酸に開裂させることを利用しています。遊離したリン酸を BIOMOL GREEN™ で比色定量することで、酵素活性を測定できます。キットには、バリデーション用にI型cAMP ホスフォジエステラーゼ (PDE)、阻害剤スクリーニング用のテストコントロールとして非特異的なサイクリックヌクレオチド・ホスホジエステラーゼ阻害剤、3-isobutyl-1-methylxanthine (IBMX) が添付されています。本アッセイでは、スクリーニング化合物が 5'-ヌクレオチダーゼ活性を阻害しないことが重要になるので、阻害活性がないことを添付の 5'-AMP/GMP で確認することができます。
特長
- 放射性物質を使わないユニークな比色アッセイ
- 酵素活性、その阻害剤・モジュレーターのスクリーニングに有用
- ハイスループットフォーマット
構成内容
- PDE 酵素(ウシ脳由来)
- 5’ - ヌクレオチダーゼ(Crotalus atrox venom 由来)
- 3’,5’-cAMP 基質
- 3’,5’-cGMP 基質
- PDE アッセイバッファー
- BIOMOL Green™試薬
- 5’-AMP スタンダード
- 5’-GMP スタンダード
- IBMX(阻害剤)
- 脱塩カラム・レジン
- 1/2 容量マイクロプレート
使用例

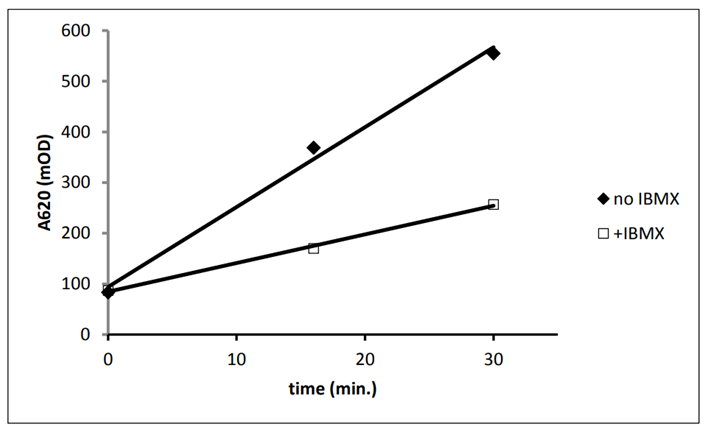

図1. PDEによるcAMP加水分解の継時変化(IBMX阻害の影響)
PDE酵素(20mU / well)を、阻害剤IBMX(40µM)の有無で、cAMP (200µM) 及び5'-nucleotidase (50kU / well) と共に、30℃下で指示された時間インキュベートした。反応はBIOMOL GREEN™ を100µL添加することで停止させ、その30分後にOD620を測定した。
Cyclic Nucleotide phosphodiesterase assay kit
品名 | メーカー | 品番 | 包装 | 希望販売価格 |
---|---|---|---|---|
Cyclic Nucleotide phosphodiesterase assay kit![]() |
ENZ | BML-AK800-0001 | 1 KIT [96 wells] |
販売終了 |
【関連商品】
■ 酵素
品名 | メーカー | 品番 | 包装 | 希望販売価格 |
---|---|---|---|---|
5'-Nucleotidase, Snake![]() |
ENZ | BML-KI307-5000 | 5000 K.UNIT |
¥49,000 |
■ 阻害剤
品名 | メーカー | 品番 | 包装 | 希望販売価格 |
---|---|---|---|---|
IBMX![]() |
ENZ | BML-PD140-1000 | 1 G |
¥65,000 |
製品使用文献
- A novel systems pharmacology platform to dissect action mechanisms of Traditional Chinese Medicines for Bovine viral diarrhea disease: C. Zheng, et al.; Eur. J. Pharmacol. (2016)
- Exposure to an Extremely-Low-Frequency Magnetic Field Stimulates Adrenal Steroidogenesis via Inhibition of Phosphodiesterase Activity in a Mouse Adrenal Cell Line: K. Kitaoka, et al.; Plos One 11, e0154167 (2016)
- Novel, primate-specific PDE10A isoform highlights gene expression complexity in human striatum with implications on the molecular pathology of bipolar disorder: C.M. MacMullen, et al.; Transl. Psychiatry 6, e742 (2016)
- Chromatographic fraction of Abrus precatorius leaf extract increases cGMP and nitric oxide concentration in female rats: I.H. Ogbuehi, et al.; Der Pharmacia Sinica 6, 29 (2015)
- Constitutively Active Signaling by the G Protein βγ-Subunit Mediates Intrinsically Increased Phosphodiesterase-4 Activity in Human Asthmatic Airway Smooth Muscle Cells: A. Hu, et al.; PLoS One 10, e0118712 (2015)
- Cross-talk between PKA-Cβ and p65 mediates synergistic induction of PDE4B by roflumilast and NTHi: S. Susuki-Miyata, et al.; PNAS 112, E1800 (2015)
- Increased yield of high purity recombinant human brain natriuretic peptide by acid hydrolysis of short fusion partner in Escherichia coli: R. M. Kanumuri, et al.; Protein Expr. Purif. 111, 61 (2015)
- Involvement of inducible nitric oxide synthase and dimethyl arginine dimethylaminohydrolase in Nω-Nitro-L-arginine methyl ester (L-NAME)-induced hypertension: M.D. Leo, et al.; Cardiovasc. Pathol. 24, 49 (2015)
- The cAMP phosphodiesterase Prune localizes to the mitochondrial matrix and promotes mtDNA replication by stabilizing TFAM: F. Zhang, et al.; EMBO Rep. 16, 520 (2015)
商品は「研究用試薬」です。人や動物の医療用・臨床診断用・食品用としては使用しないように、十分ご注意ください。
