■ CD8a モノクローナル抗体(品番:65113-1-Ig)

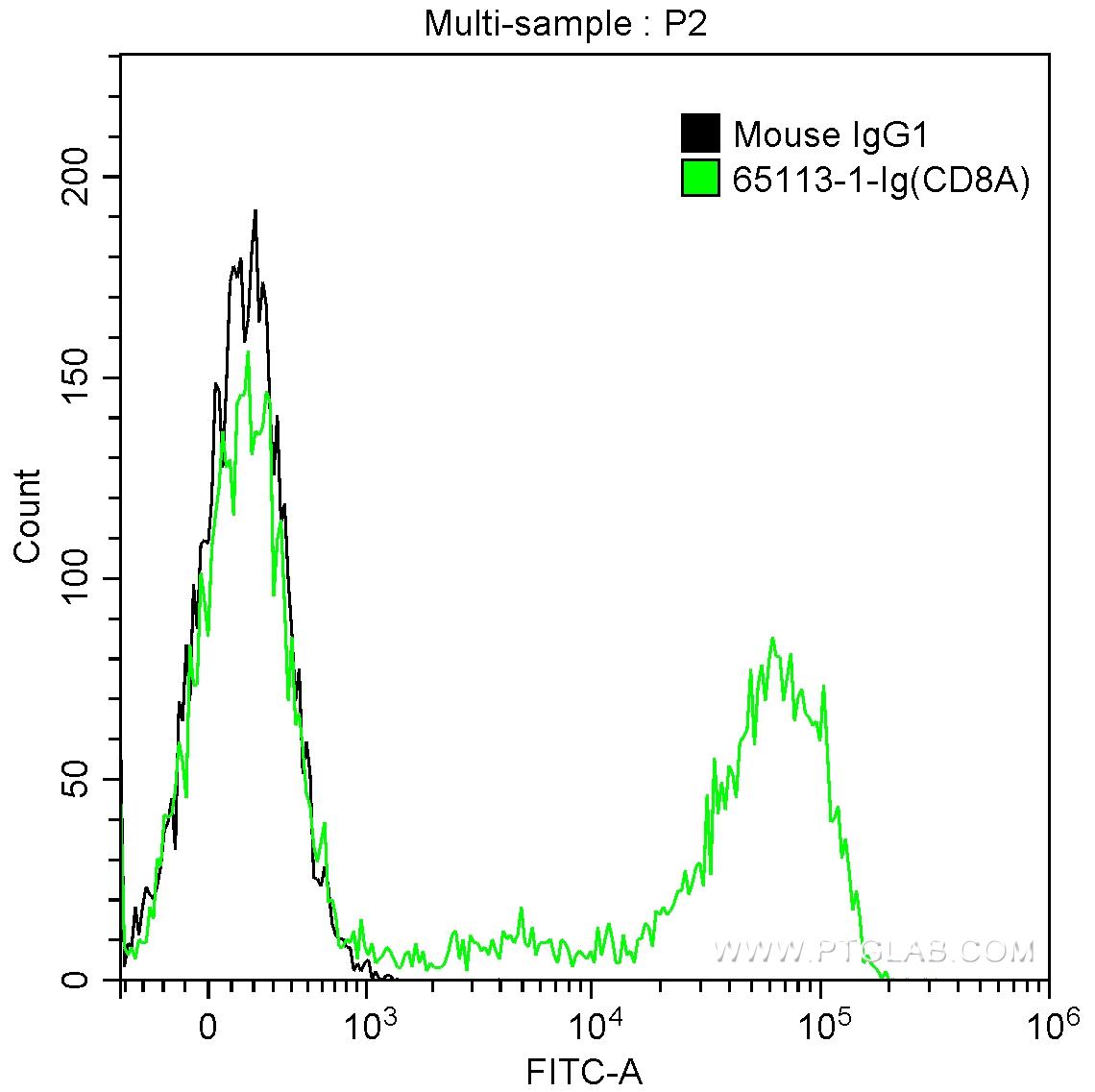

図1. CD8a抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with 0.25 ug Anti-Human CD8a (65113-1-Ig, Clone: Hit8a) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (green), or stained with 0.25 ug mouse IgG1 isotype control antibody and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (black). Samples were not fixed.
■ CD8a モノクローナル抗体(品番:FITC-65113)

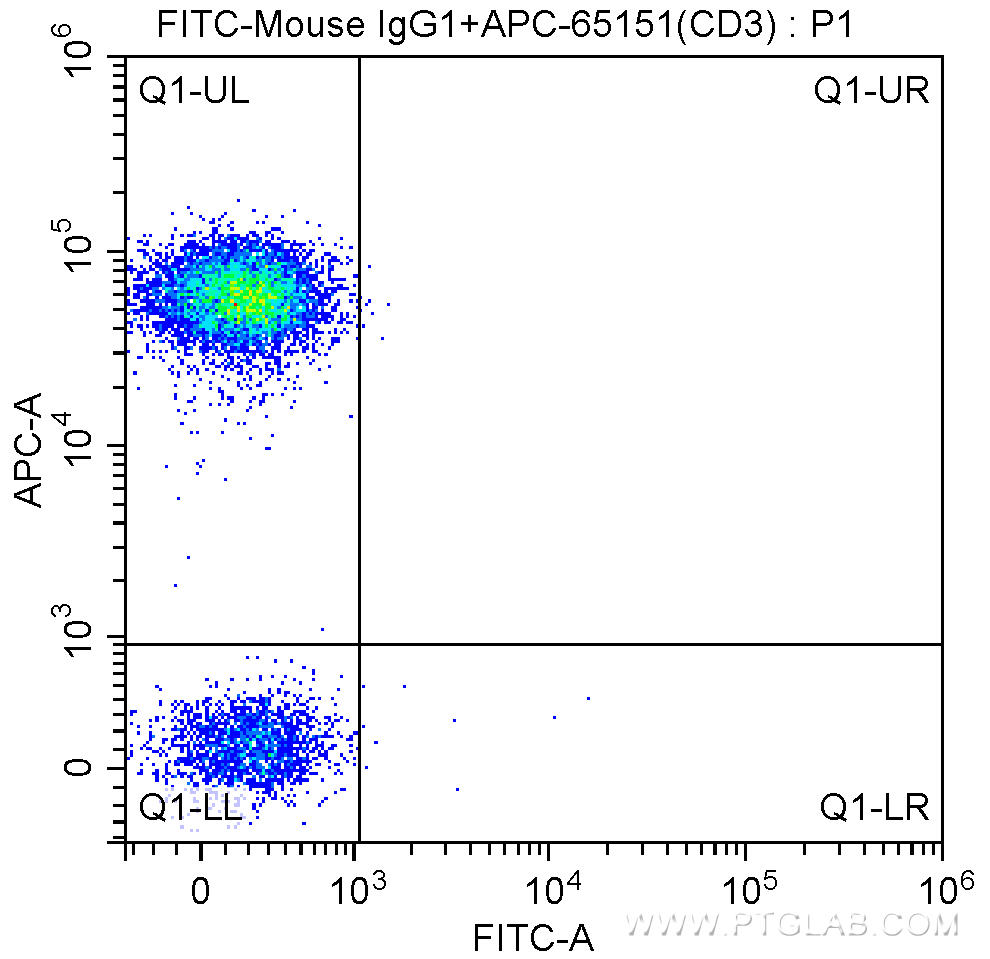

図1. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and FITC-Mouse IgG1 isotype control antibody. Cells were not fixed.

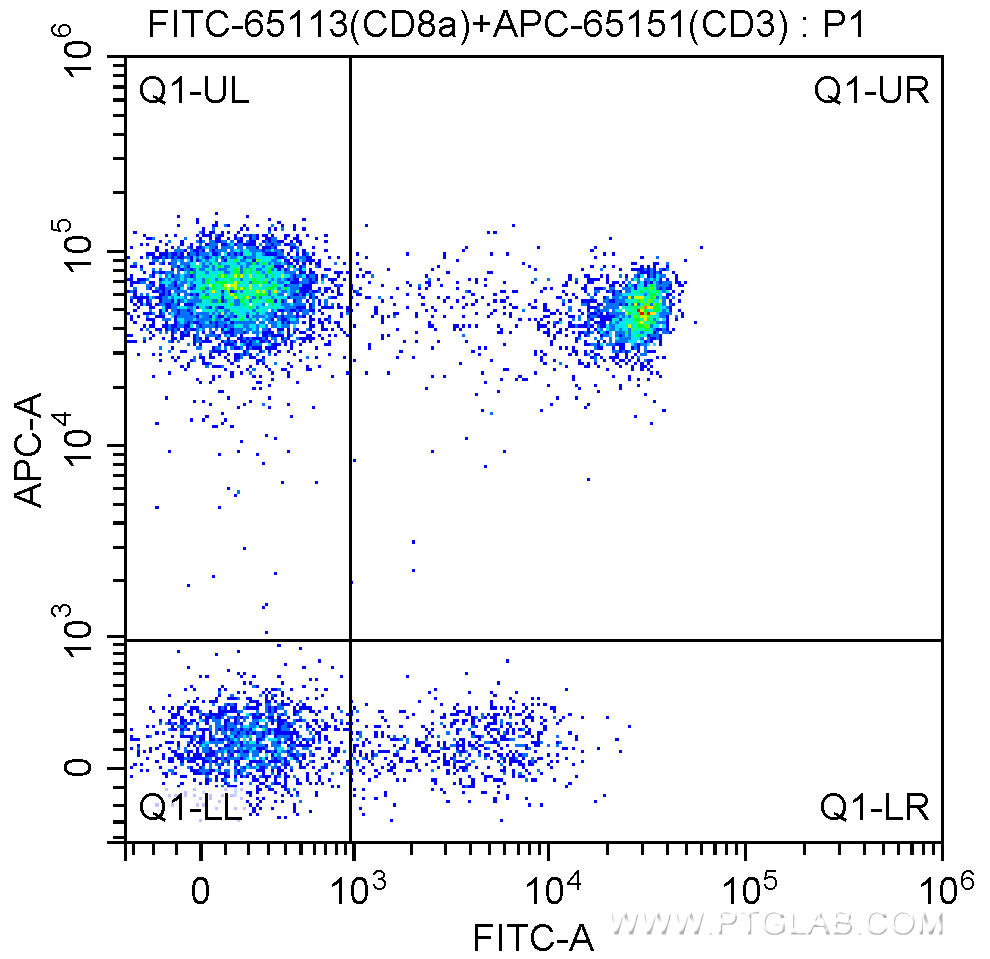

図2. CD8a抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and 5.00 ul FITC Anti-Human CD8a (FITC-65113, Clone: Hit8a). Cells were not fixed.
■ CD8a モノクローナル抗体(品番:APC-65113)

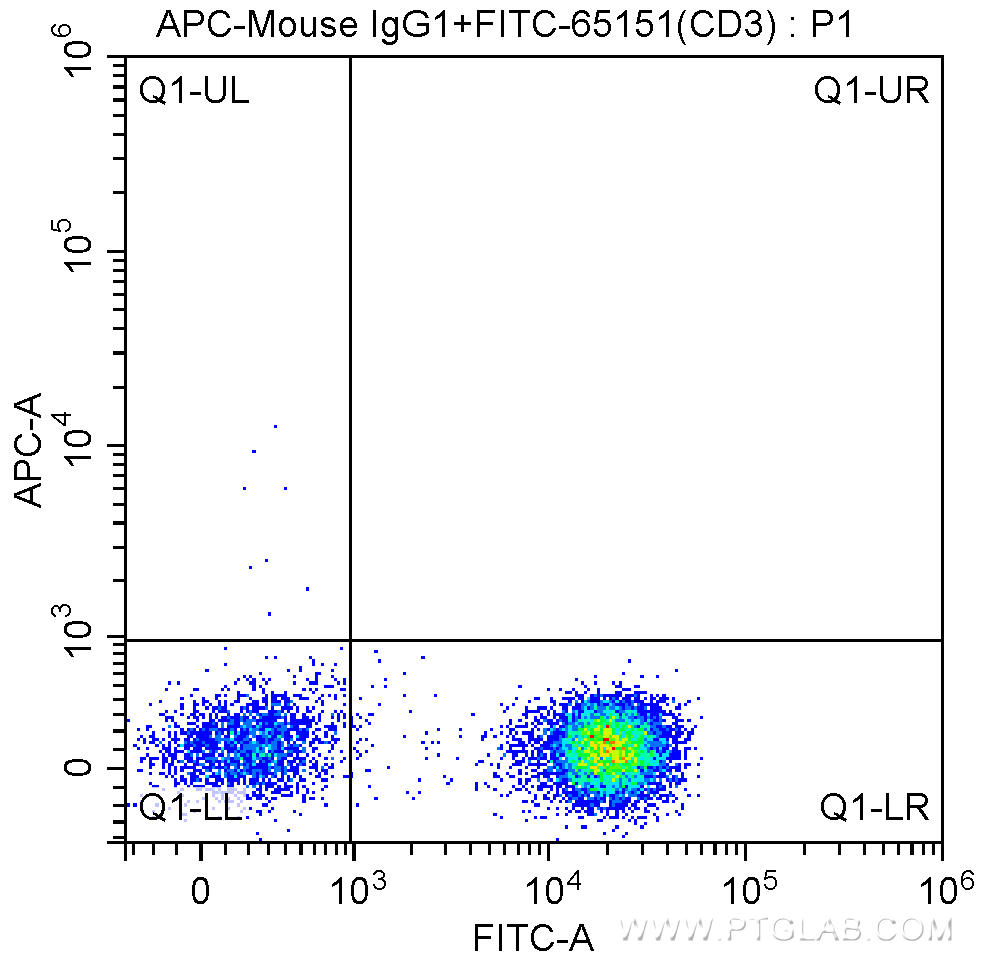

図1. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and APC-Mouse IgG1 isotype control antibody. Cells were not fixed.
図2. CD8a抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and 5.00 ul APC Anti-Human CD8a (APC-65113, Clone: Hit8a). Cells were not fixed.
■ CD8a モノクローナル抗体(品番:CL488-65113)

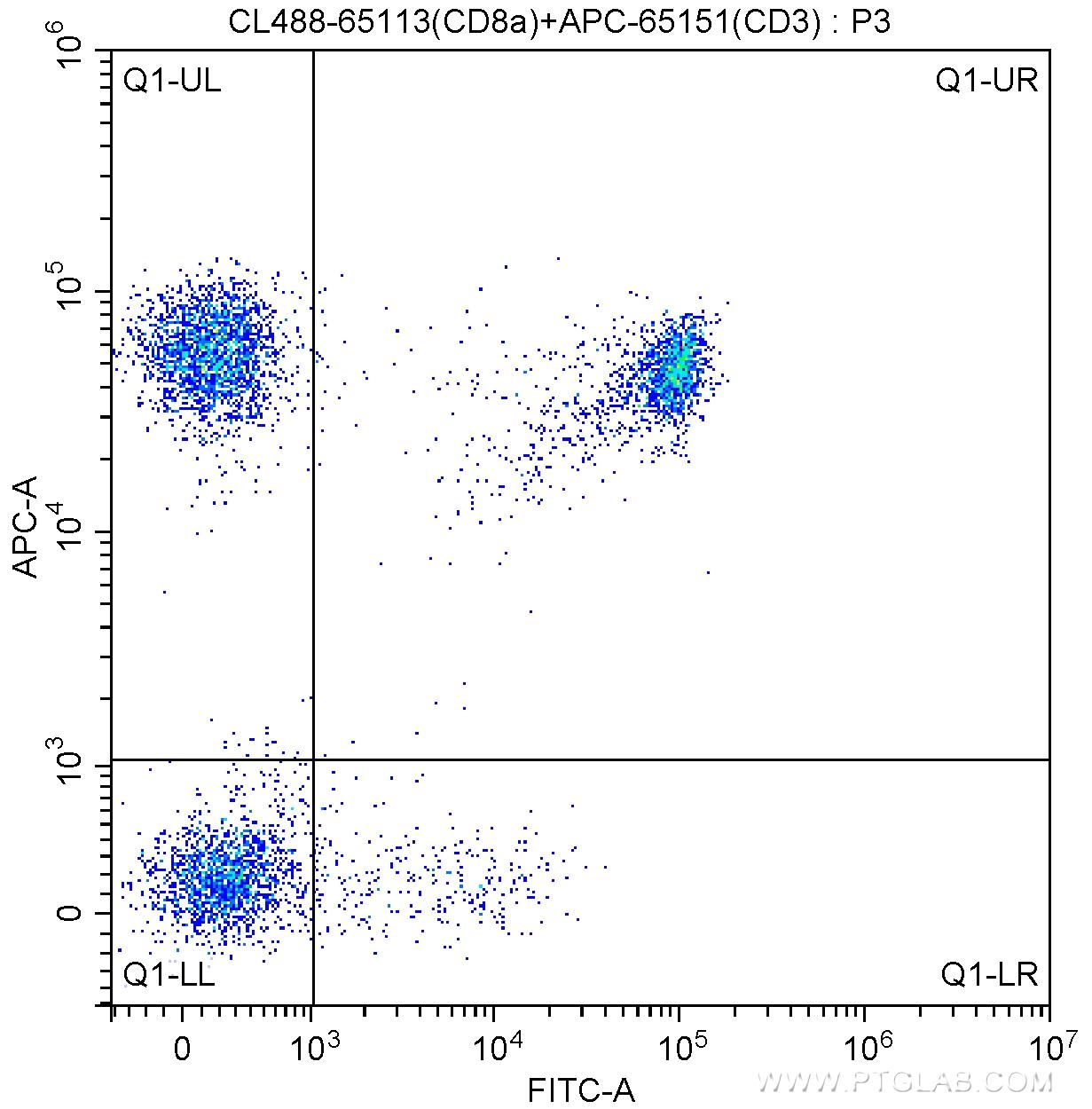

図1. CD8a抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and 5.00 ul CoraLite®488-conjugated Anti-Human CD8a (CL488-65113, Clone: Hit8a). Cells were not fixed.

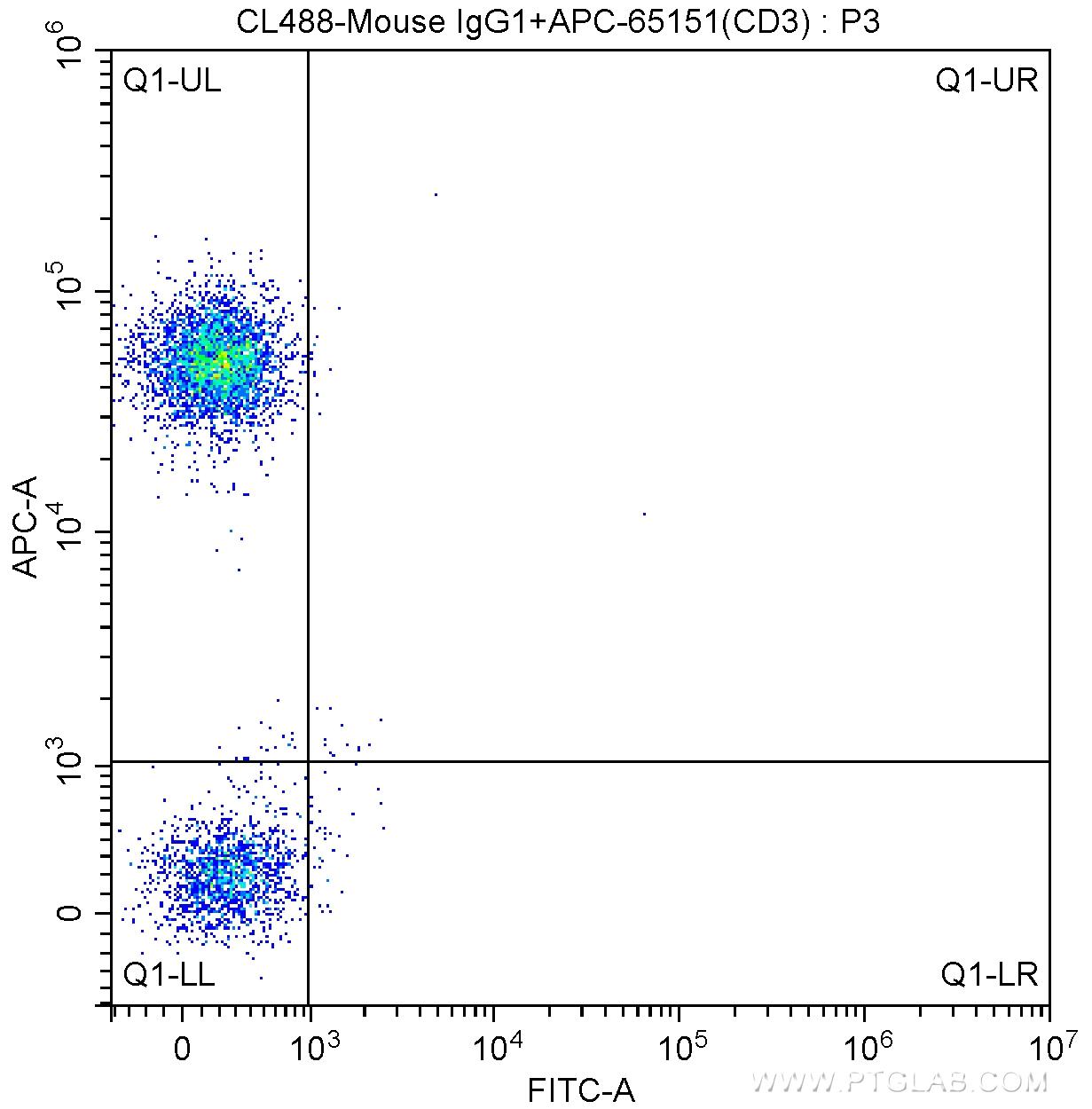

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and CoraLite®488-conjugated Mouse IgG1 isotype control antibody. Cells were not fixed.
■ CD8a モノクローナル抗体(品番:CL647-65113)

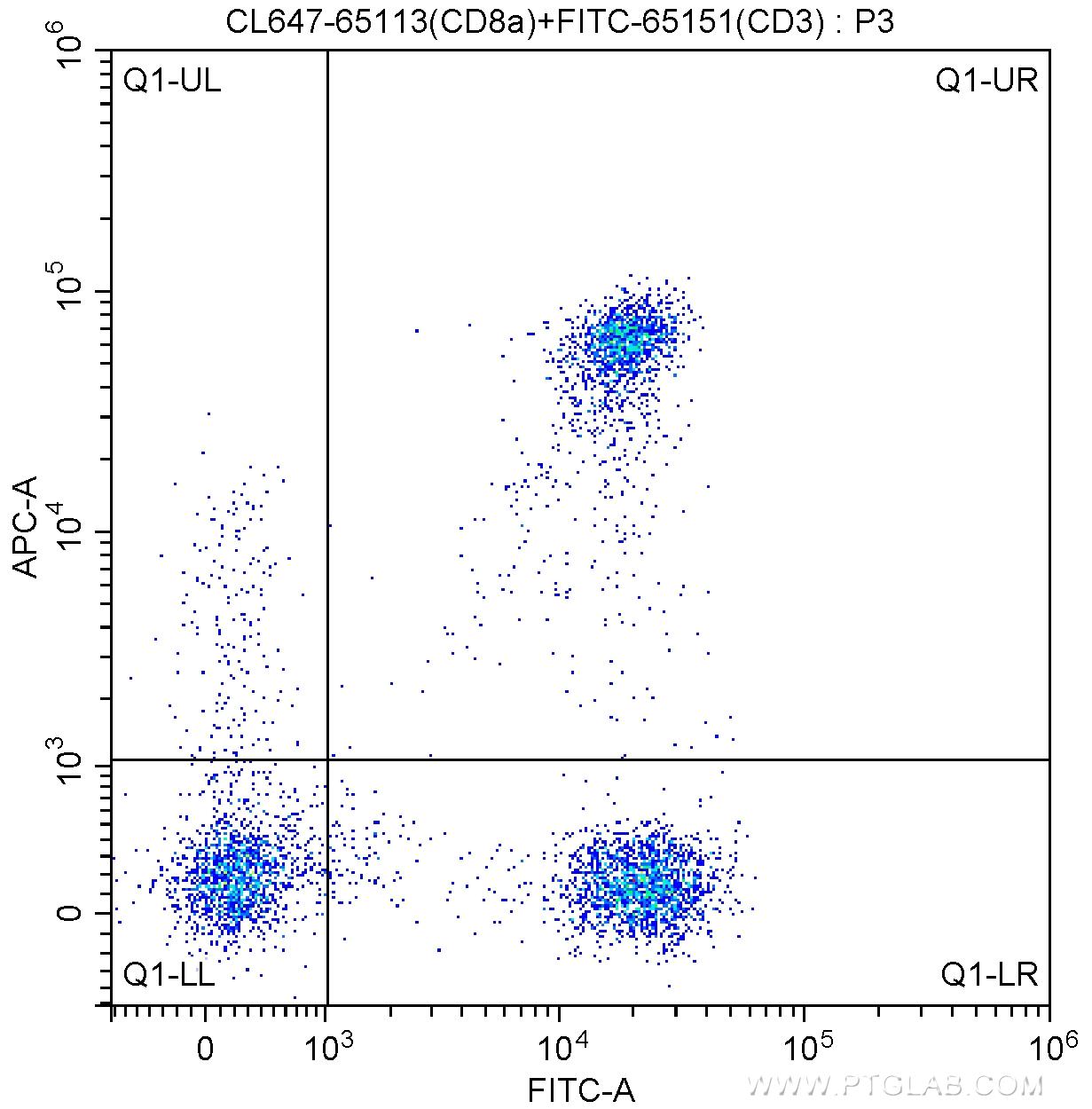

図1. CD8a抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and 5.00 ul CoraLite®647-conjugated Anti-Human CD8a (CL647-65113, Clone: Hit8a). Cells were not fixed.

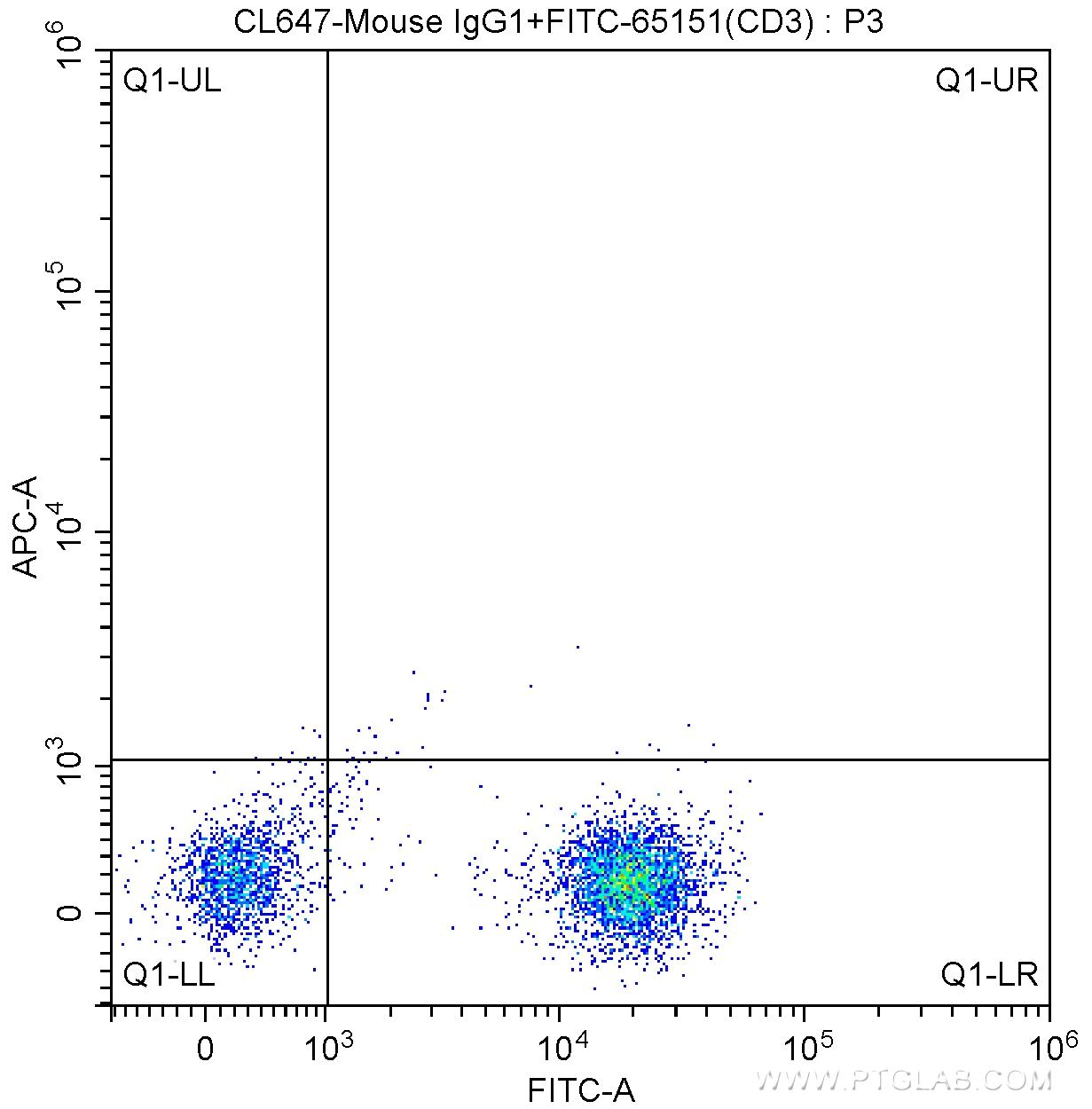

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and CoraLite®647-conjugated Mouse IgG1 isotype control antibody. Cells were not fixed.
