■ CD103 モノクローナル抗体(品番:65047-1-Ig)

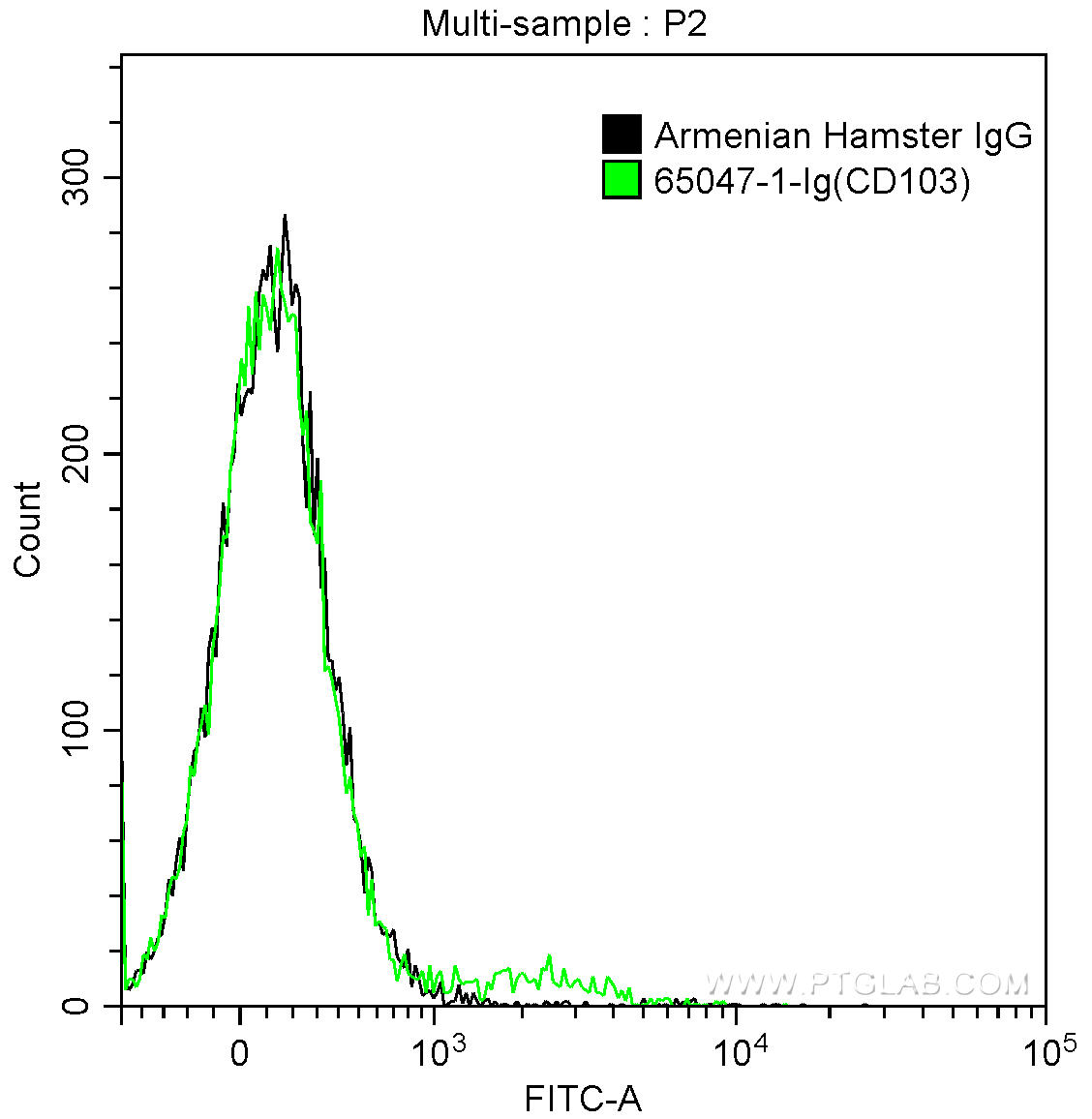

図1. CD103抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 mouse splenocytes were surface stained with 0.5 ug Anti-Mouse CD103 (65047-1-Ig, Clone: 2E7) and FITC Goat anti-hamster (Armenian) IgG Antibody at dilution 1:200 (green), or stained with 0.5 ug Armenian Hamster IgG Isotype Control and FITC Goat anti-hamster (Armenian) IgG Antibody at dilution 1:200 (black). Samples were not fixed.
■ CD103 モノクローナル抗体(品番:FITC-65047)

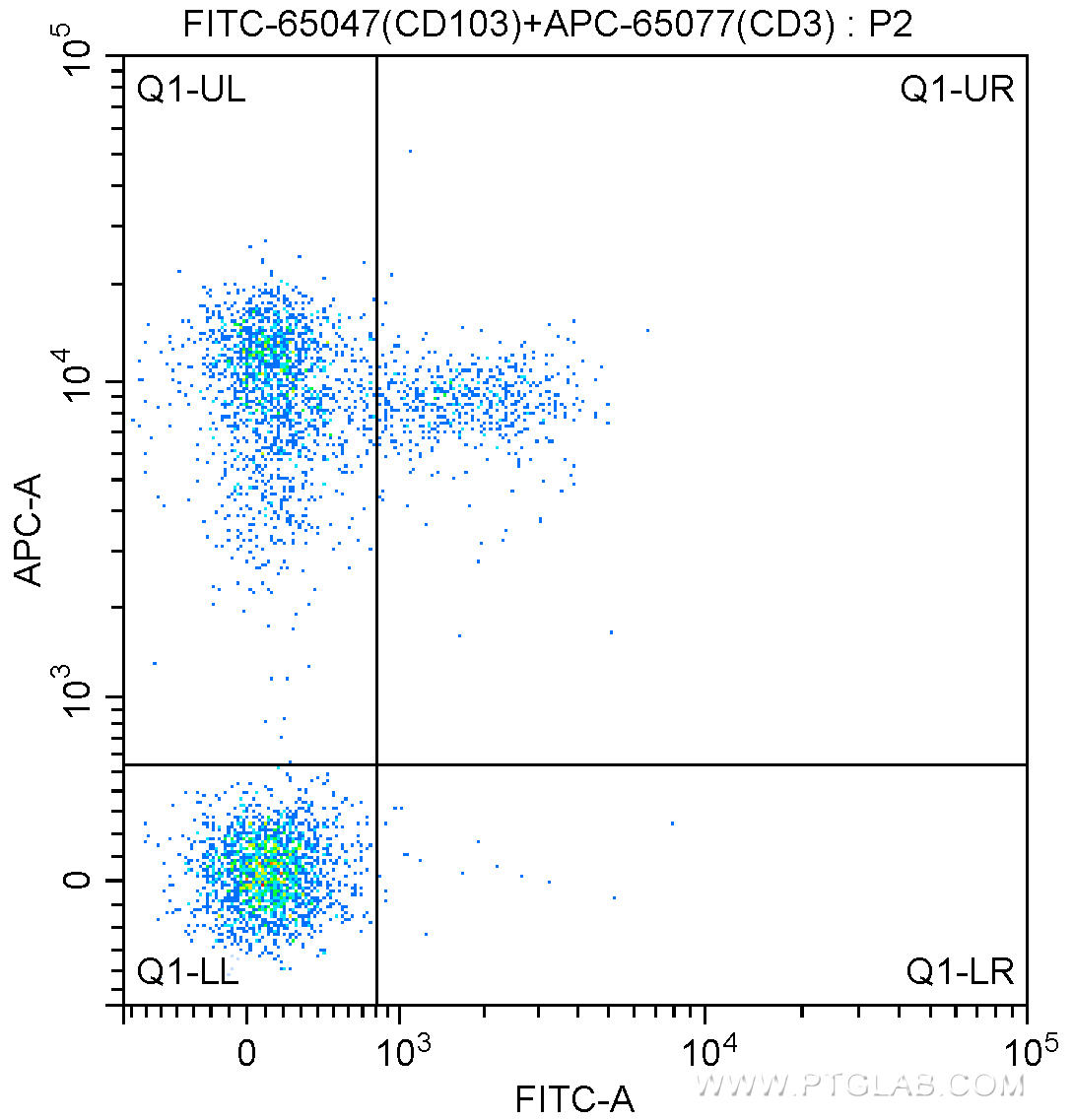

図1. CD103抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and 1.00 ug FITC Anti-Mouse CD103 (FITC-65047, Clone: 2E7). Cells were not fixed.

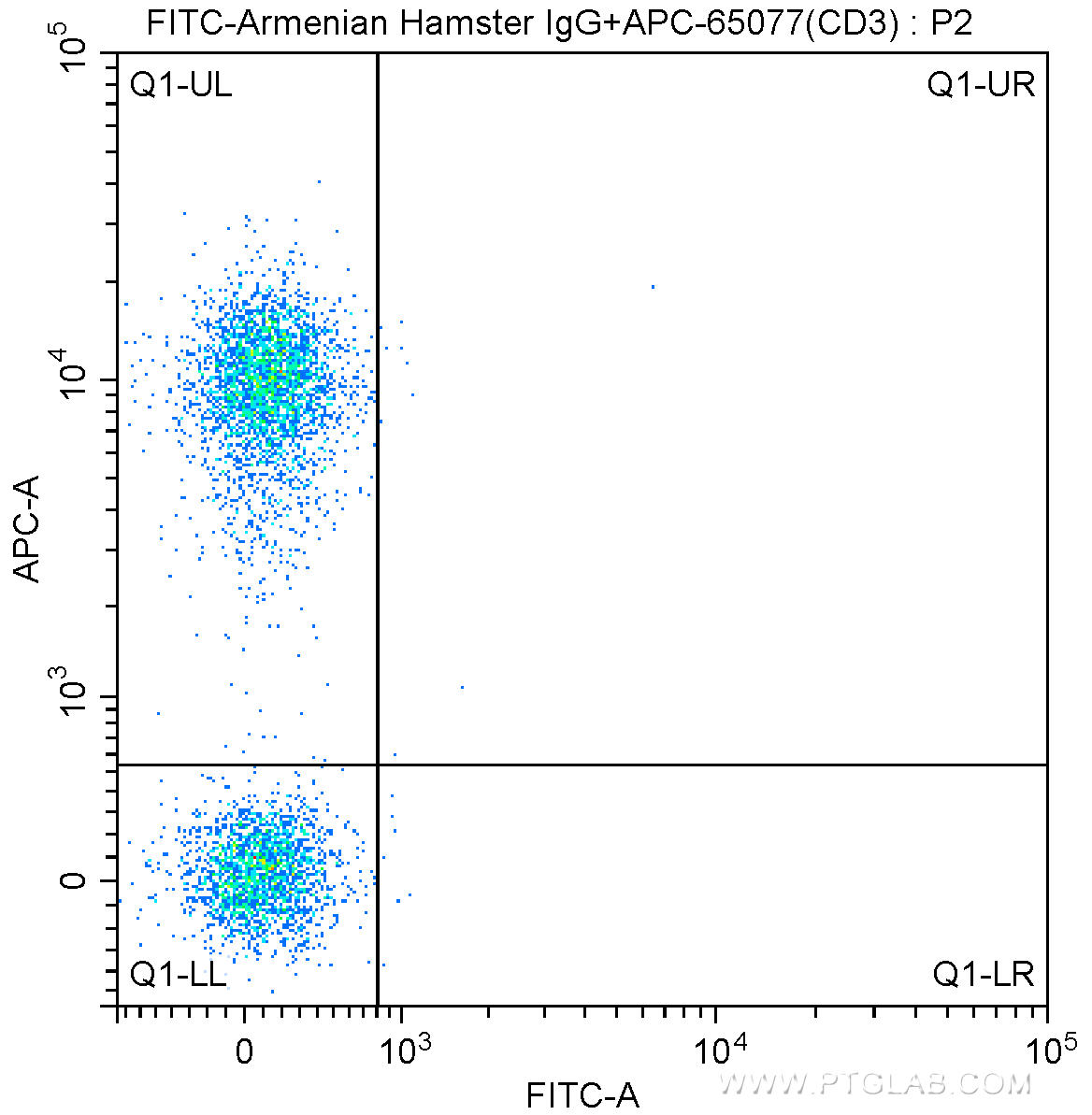

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and 1.00 ug FITC-Armenian Hamster IgG isotype control antibody. Cells were not fixed.
■ CD103 モノクローナル抗体(品番:PE-65047)

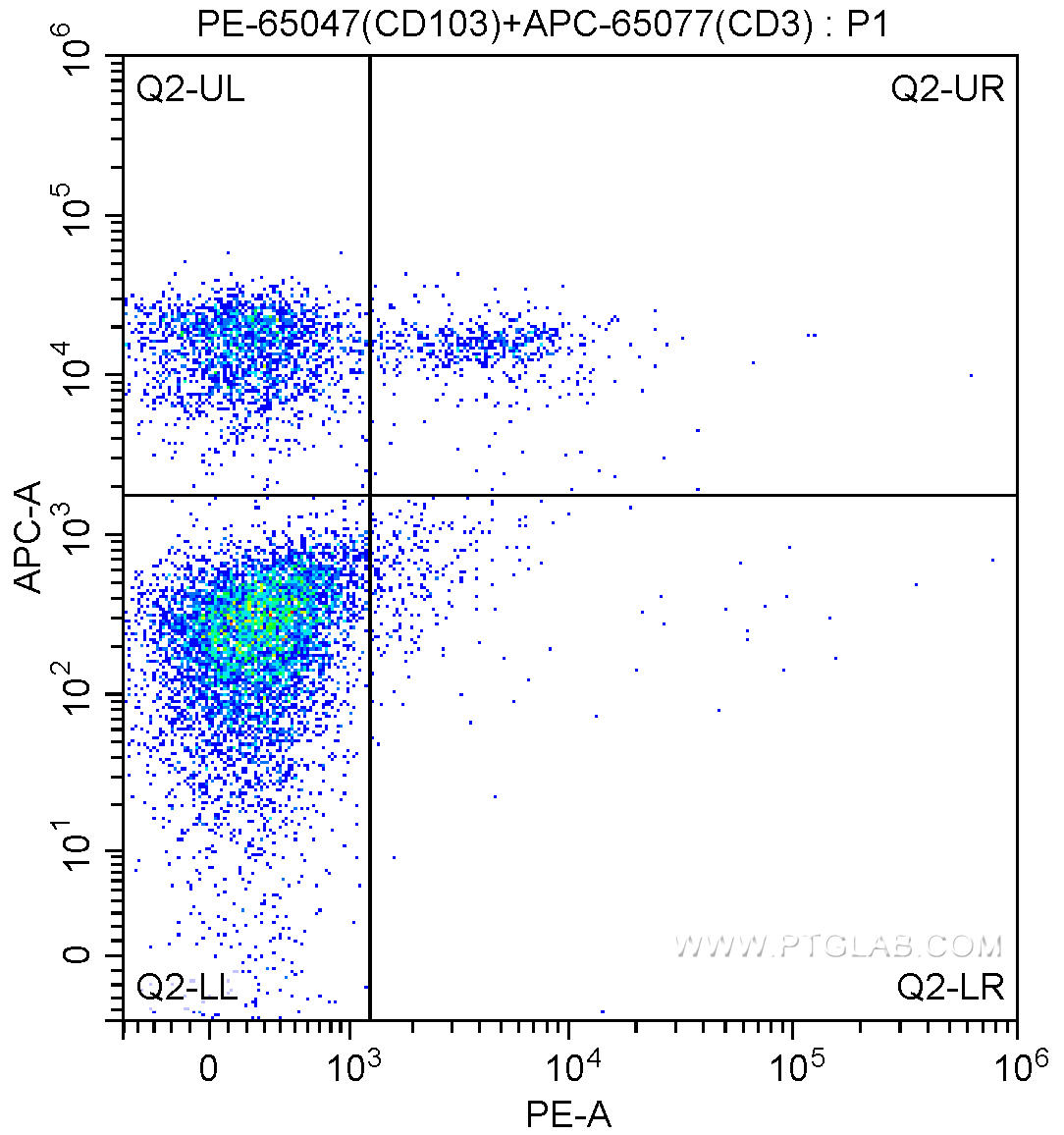

図1. CD103抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug APC-Anti-Mouse CD3 (APC-65077, clone 17A2) and 0.20 ug PE-Anti-Mouse CD103 (PE-65047, clone 2E7). Samples were not fixed.

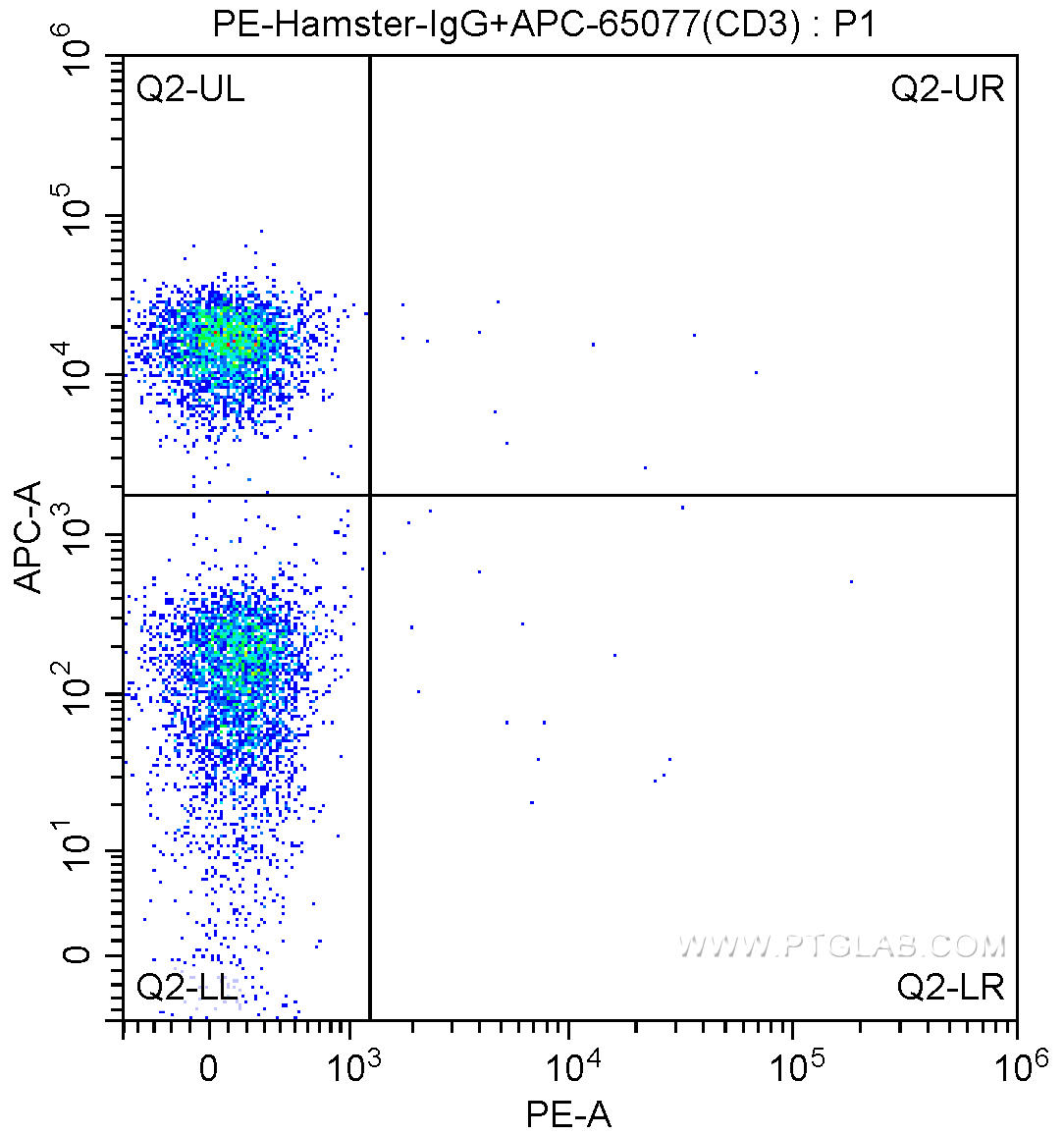

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug APC-Anti-Mouse CD3 (APC-65077, clone 17A2) and 0.20 ug PE-Hamster IgG isotype control antibody. Samples were not fixed.
■ CD103 モノクローナル抗体(品番:CL488-65047)

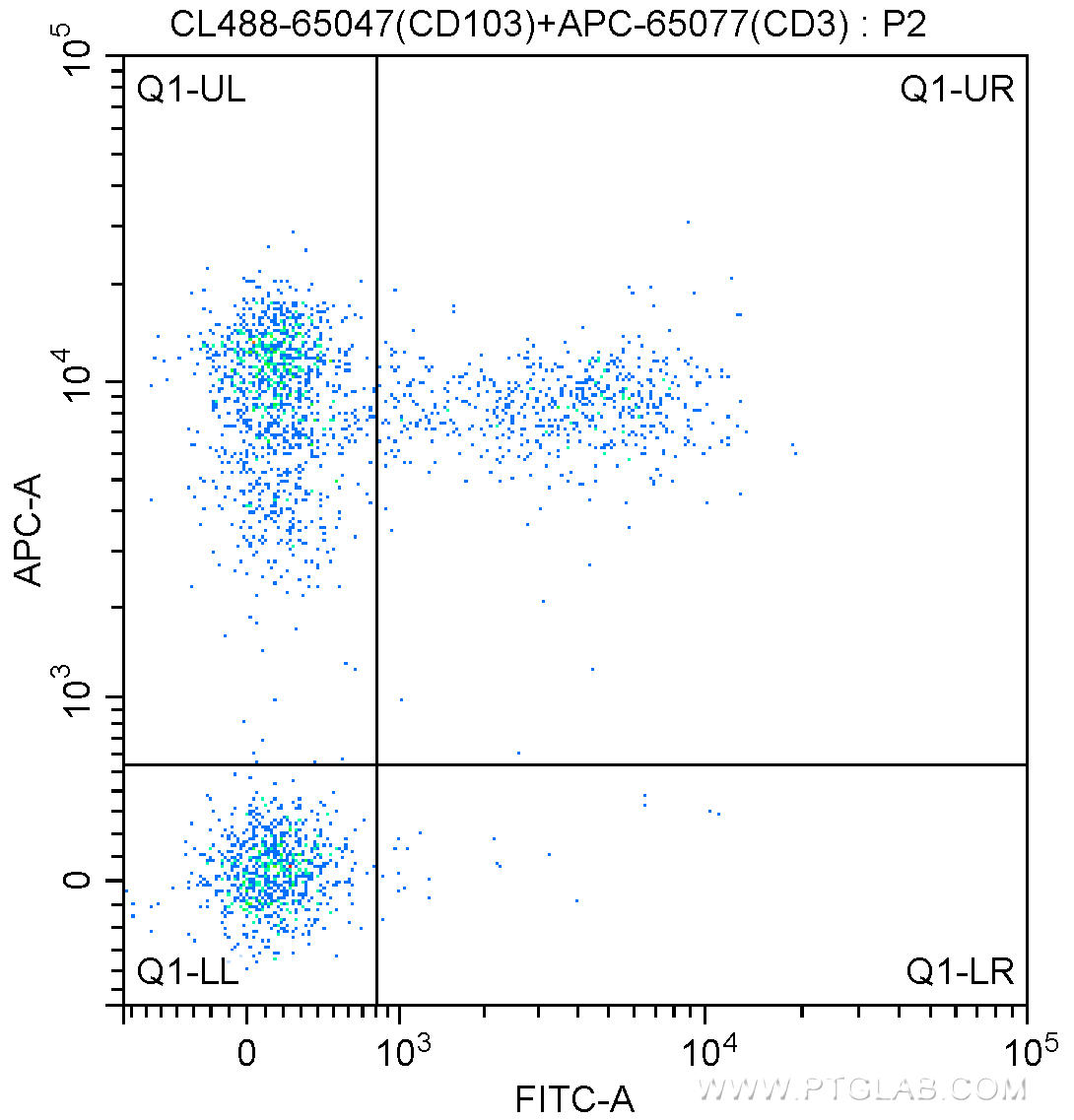

図1. CD103抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and 5.00 ul CoraLite®488-conjugated Anti-Mouse CD103 (CL488-65047, Clone: 2E7). Cells were not fixed.
図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and CoraLite®488-conjugated Armenian Hamster IgG isotype control antibody. Cells were not fixed.
■ CD103 モノクローナル抗体(品番:CL647-65047)

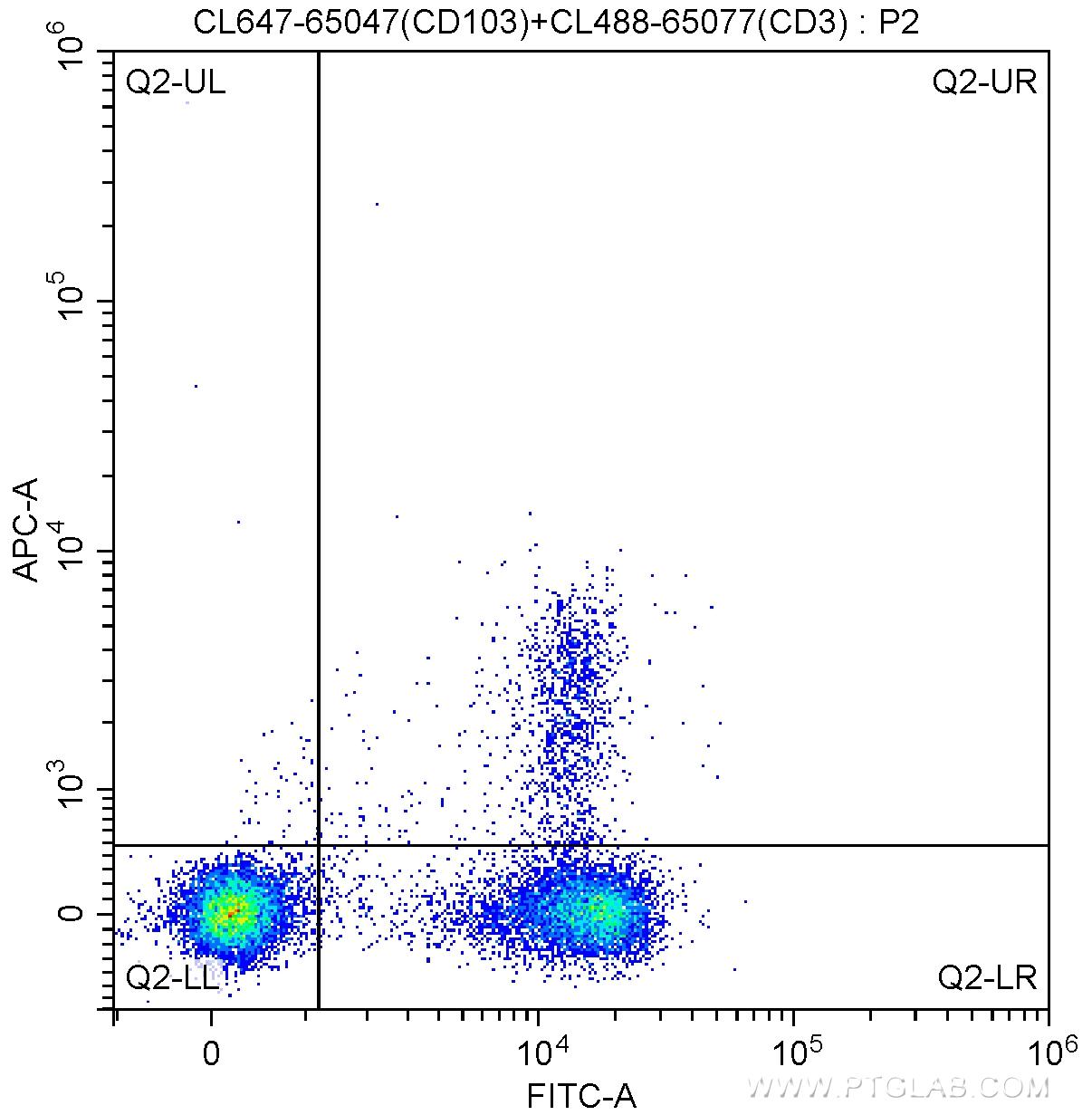

図1. CD103抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with CoraLite®488-conjugated Anti-Mouse CD3 antibody (CL488-65077, Clone: 17A2) and 5.00 ul CoraLite®647-conjugated Anti-Mouse CD103 (CL647-65047, Clone: 2E7). Cells were not fixed.

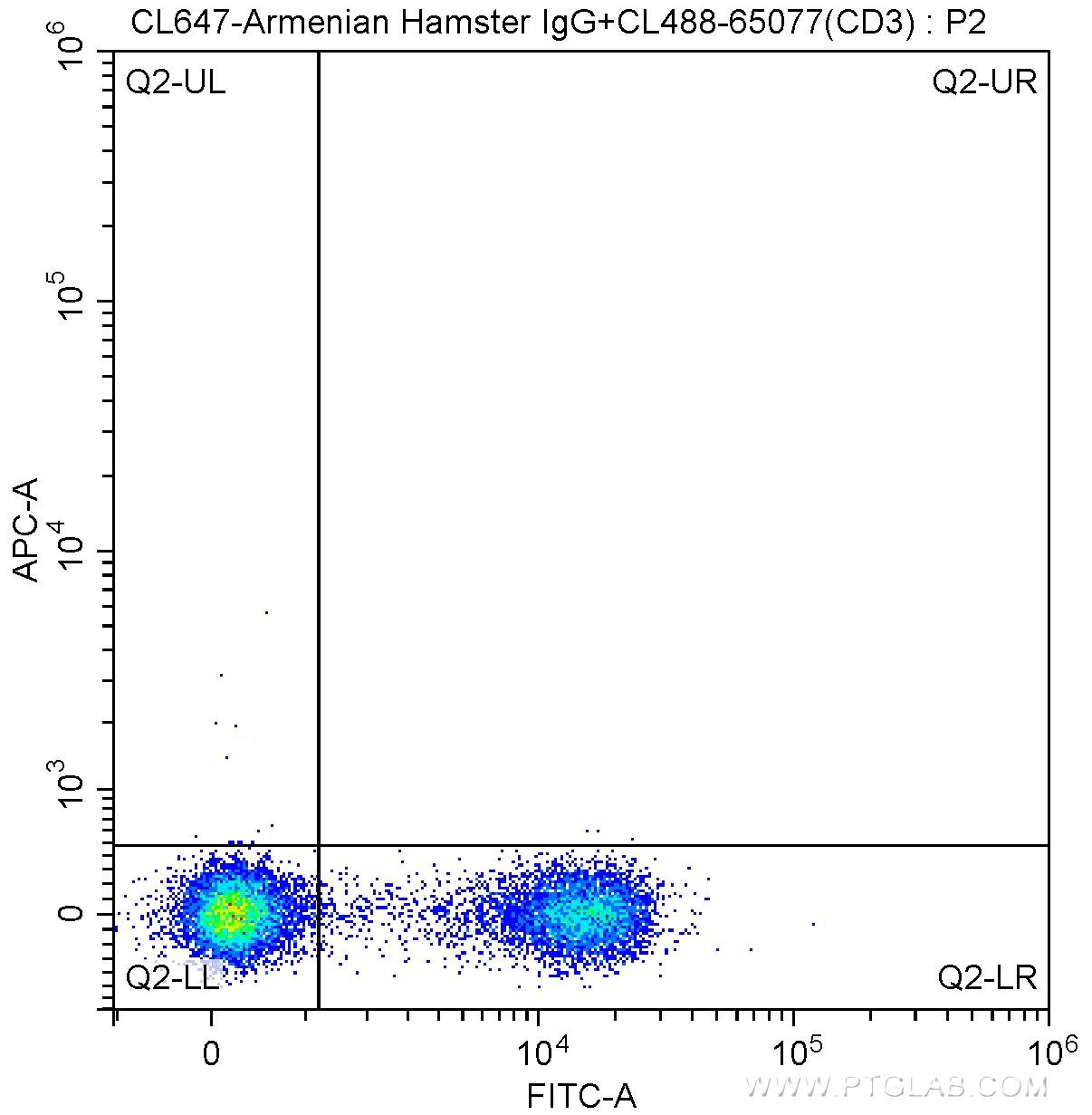

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with CoraLite®488-conjugated Anti-Mouse CD3 antibody (CL488-65077, Clone: 17A2) and CoraLite®647-conjugated Armenian Hamster IgG isotype control antibody. Cells were not fixed.
