■ CD38 モノクローナル抗体(品番:65059-1-Ig)

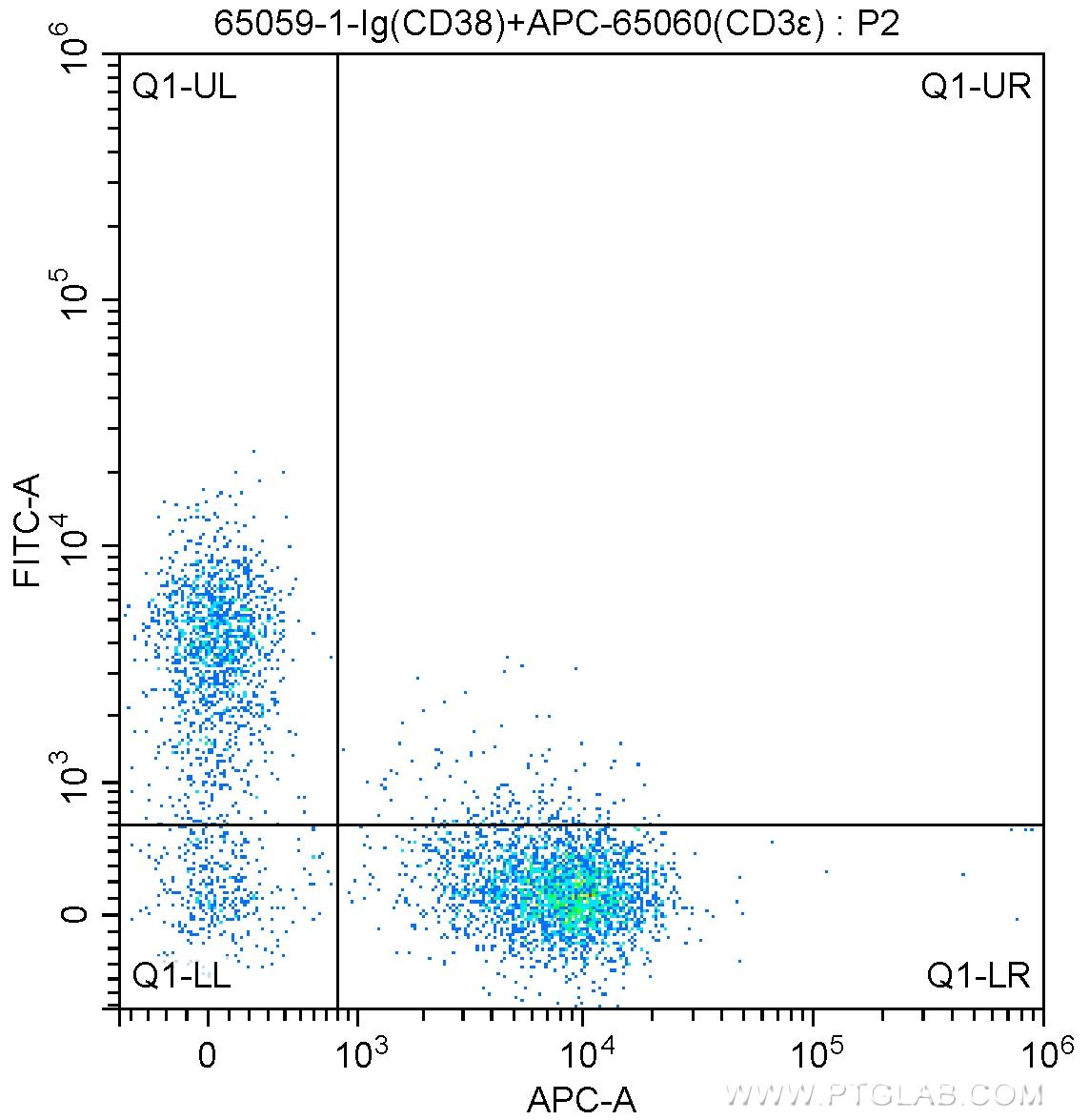

図1. CD38抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3ε (APC-65060, Clone: 145-2C11), and 0.5 ug Anti-Mouse CD38 (65059-1-Ig, Clone: 90) and FITC anti-rat IgG2a antibody at dilution 1:200. Samples were not fixed.

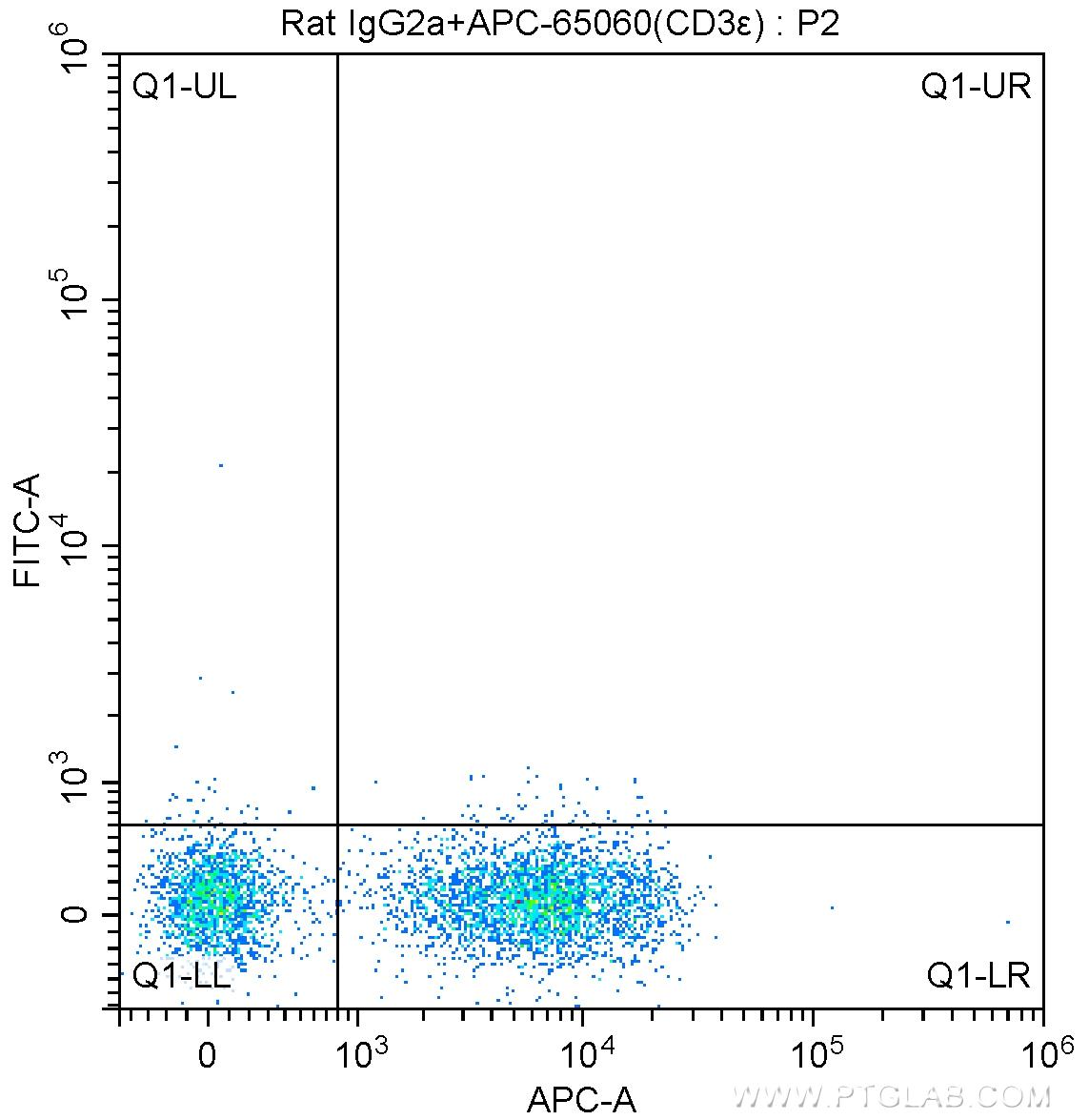

図2. アイソタイプコントロール抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3ε (APC-65060, Clone: 145-2C11), and 0.5 ug rat IgG2a isotype control and FITC anti-rat IgG2a antibody at dilution 1:200. Samples were not fixed.
■ CD38 モノクローナル抗体(品番:FITC-65059)

図1. CD38抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug FITC-Anti-Mouse CD38 (FITC-65059, clone 90) (red) or 0.20 ug FITC-rat IgG2a isotype control (blue). Samples were not fixed.
■ CD38 モノクローナル抗体(品番:PE-65059)

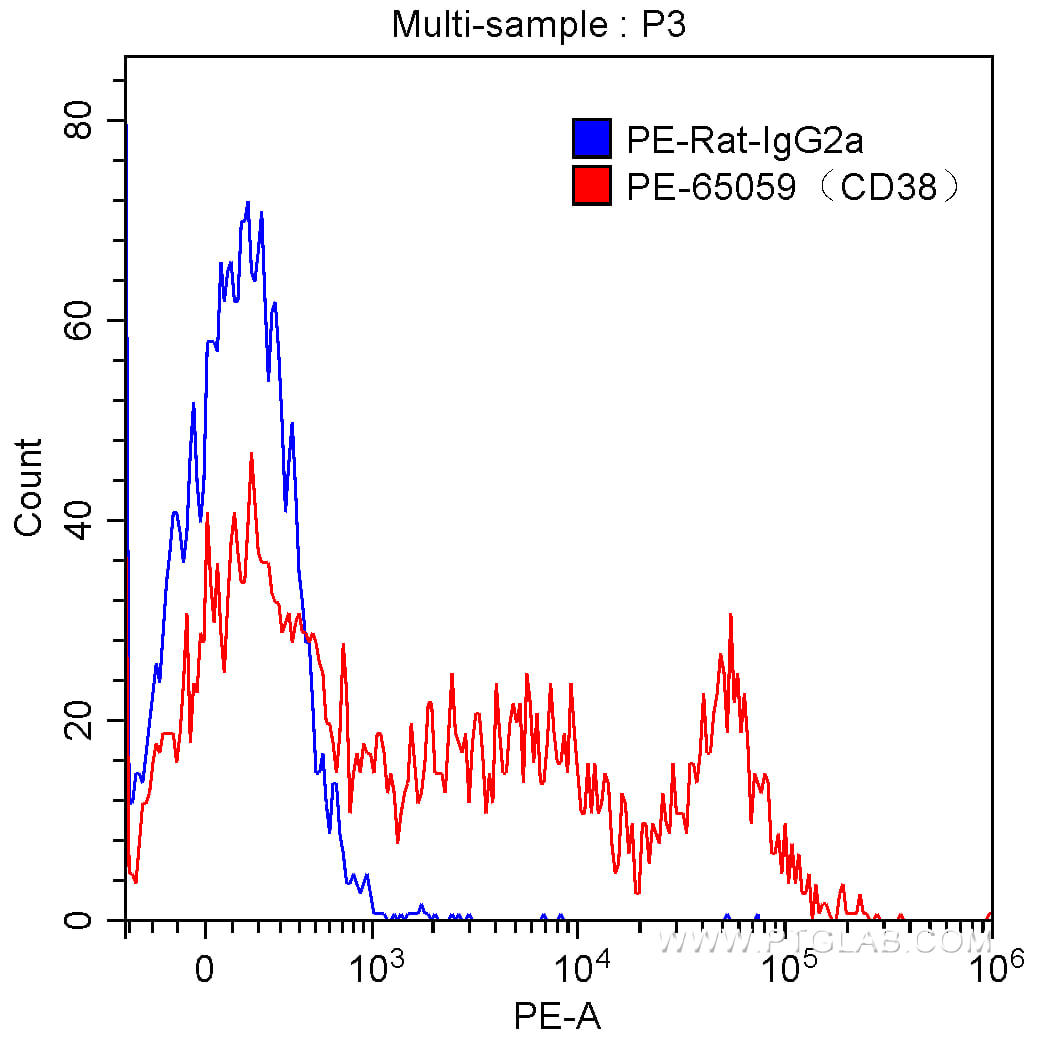

図1. CD38抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug PE Anti-Mouse CD38 (PE-65059, Clone: 90) (red) or 0.20 ug isotype control antibody (blue). Samples were not fixed.
■ CD38 モノクローナル抗体(品番:APC-65059)

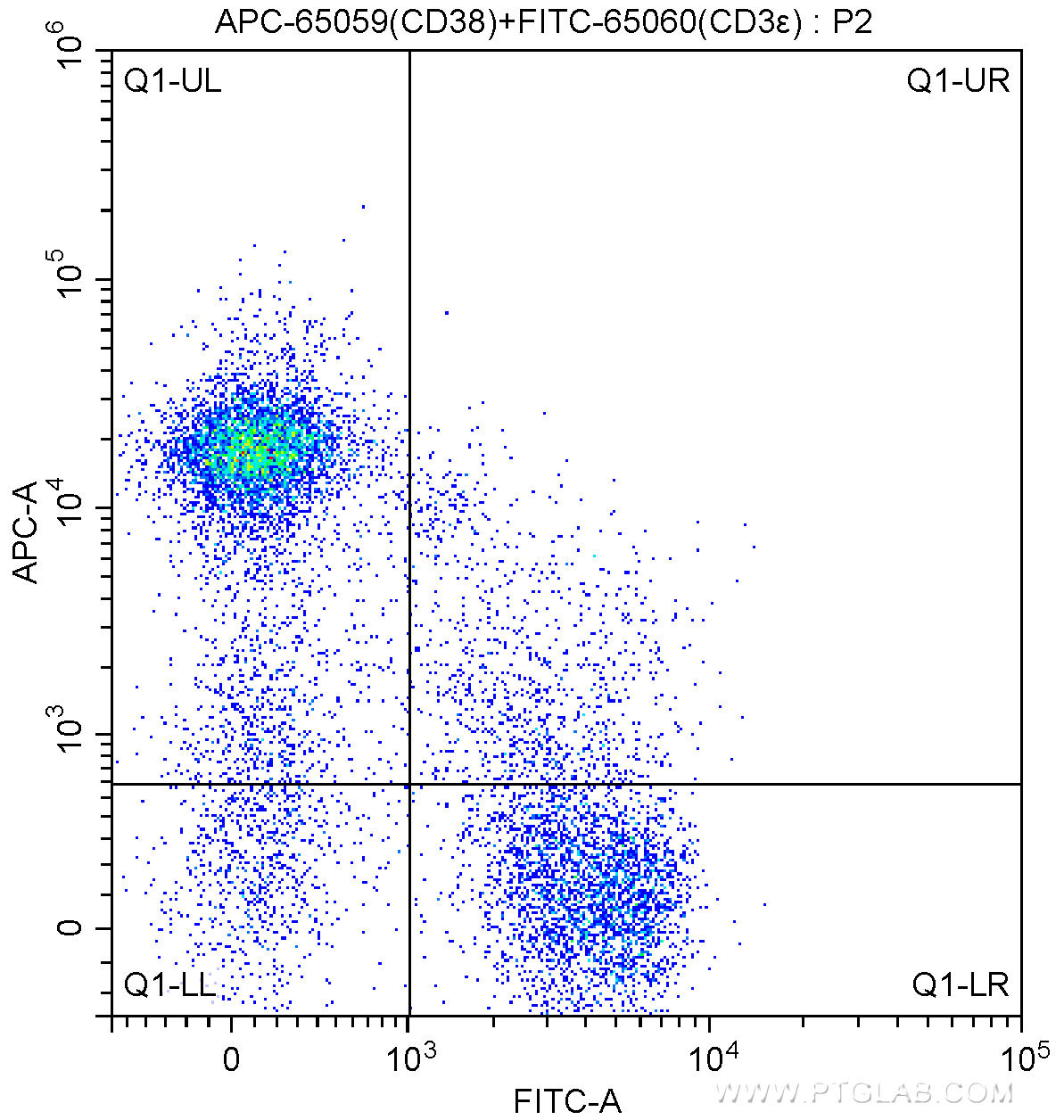

図1. CD38抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC Anti-Mouse CD3ε (FITC-65060, Clone: 145-2C11) and 0.20 ug APC Anti-Mouse CD38 (APC-65059, Clone: 90). Cells were not fixed.

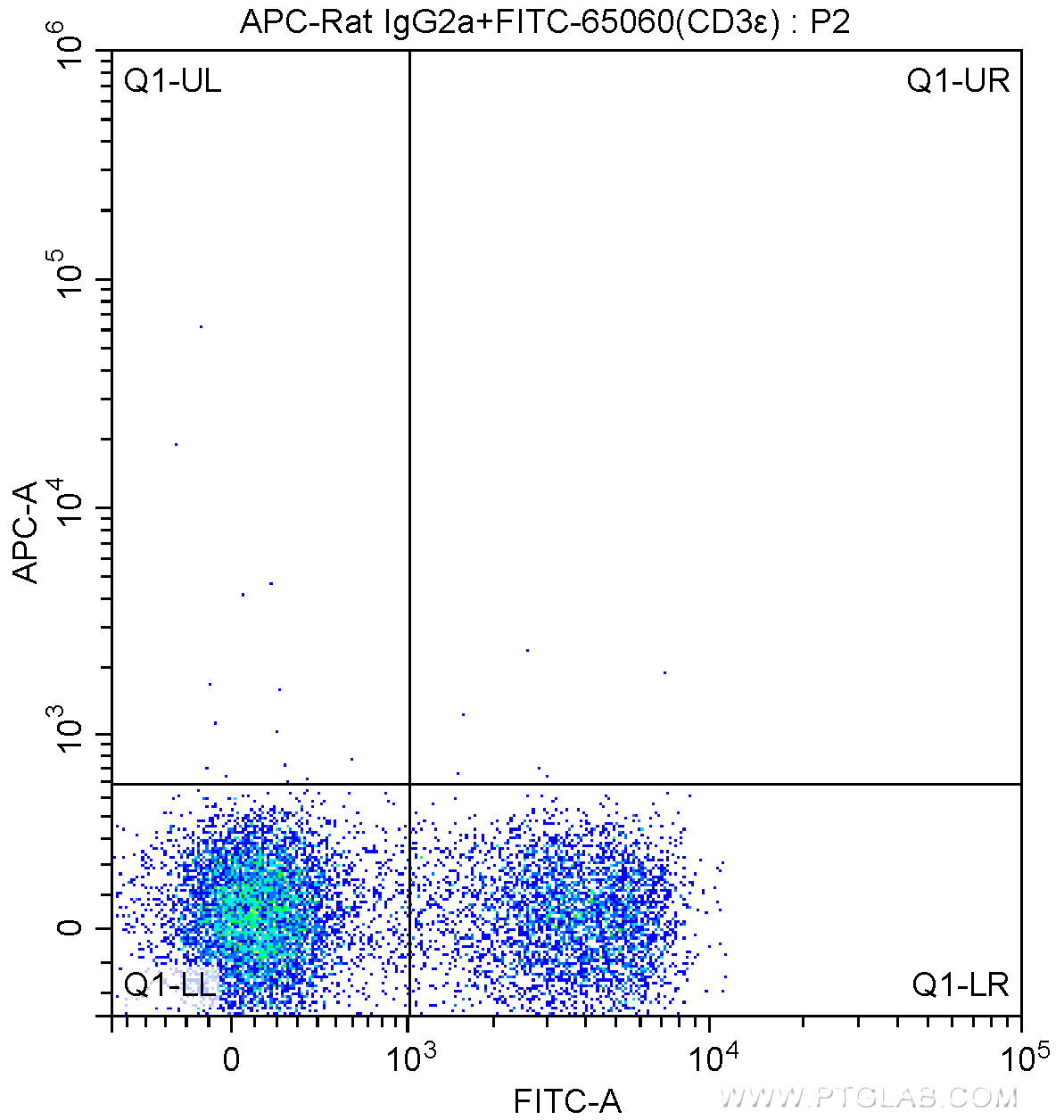

図2. アイソタイプコントロール抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC Anti-Mouse CD3ε (FITC-65060, Clone: 145-2C11) and 0.20 ug APC-Rat IgG2a isotype control antibody. Cells were not fixed.
■ CD38 モノクローナル抗体(品番:CL488-65059)

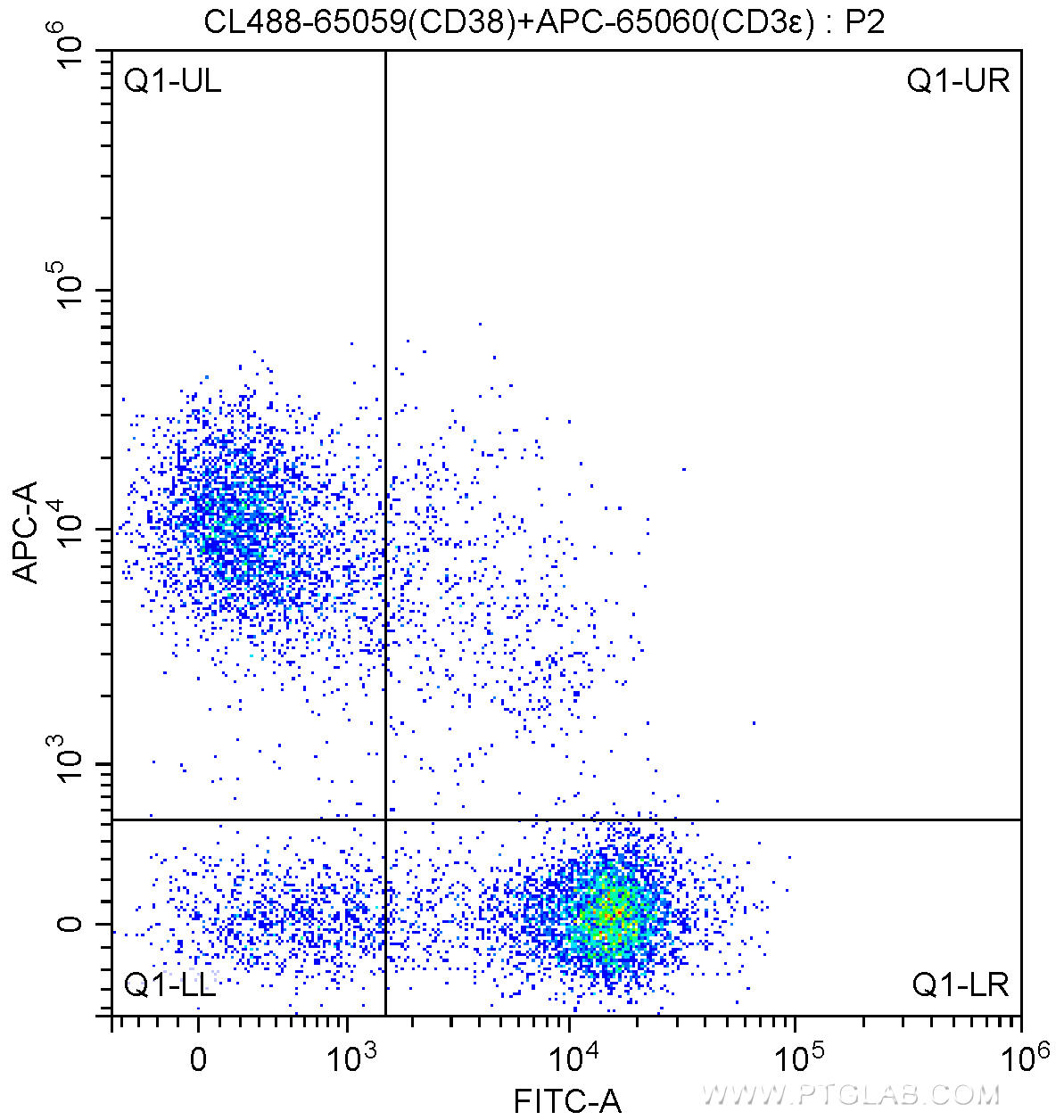

図1. CD38抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC Anti-Mouse CD3ε (APC-65060, Clone: 145-2C11) and 5.00 ul CoraLite®488-conjugated Anti-Mouse CD38 (CL488-65059, Clone: 90). Cells were not fixed.

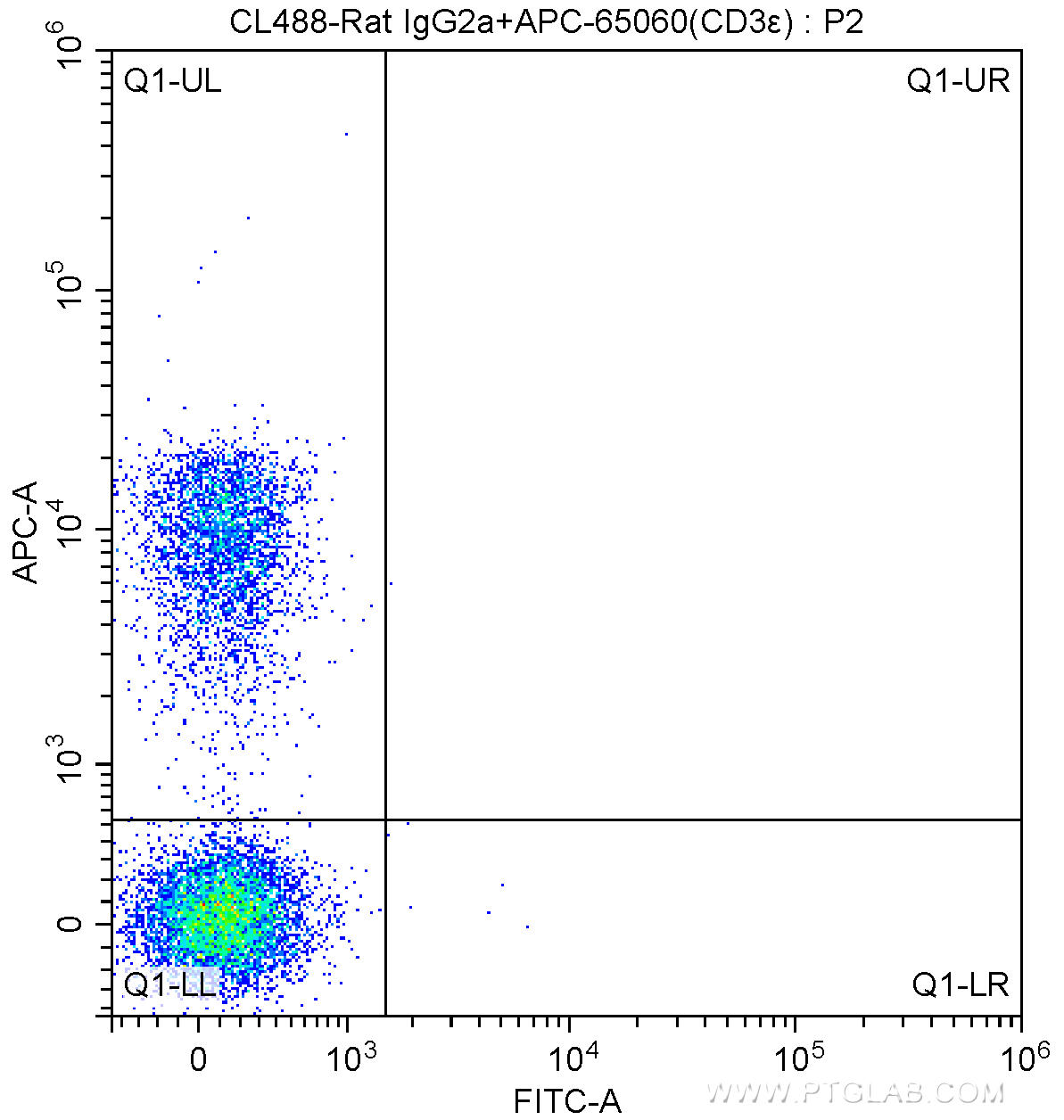

図2. アイソタイプコントロール抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC Anti-Mouse CD3ε (APC-65060, Clone: 145-2C11) and CoraLite®488-conjugated Rat IgG2a isotype control antibody. Cells were not fixed.
■ CD38 モノクローナル抗体(品番:CL594-65059)

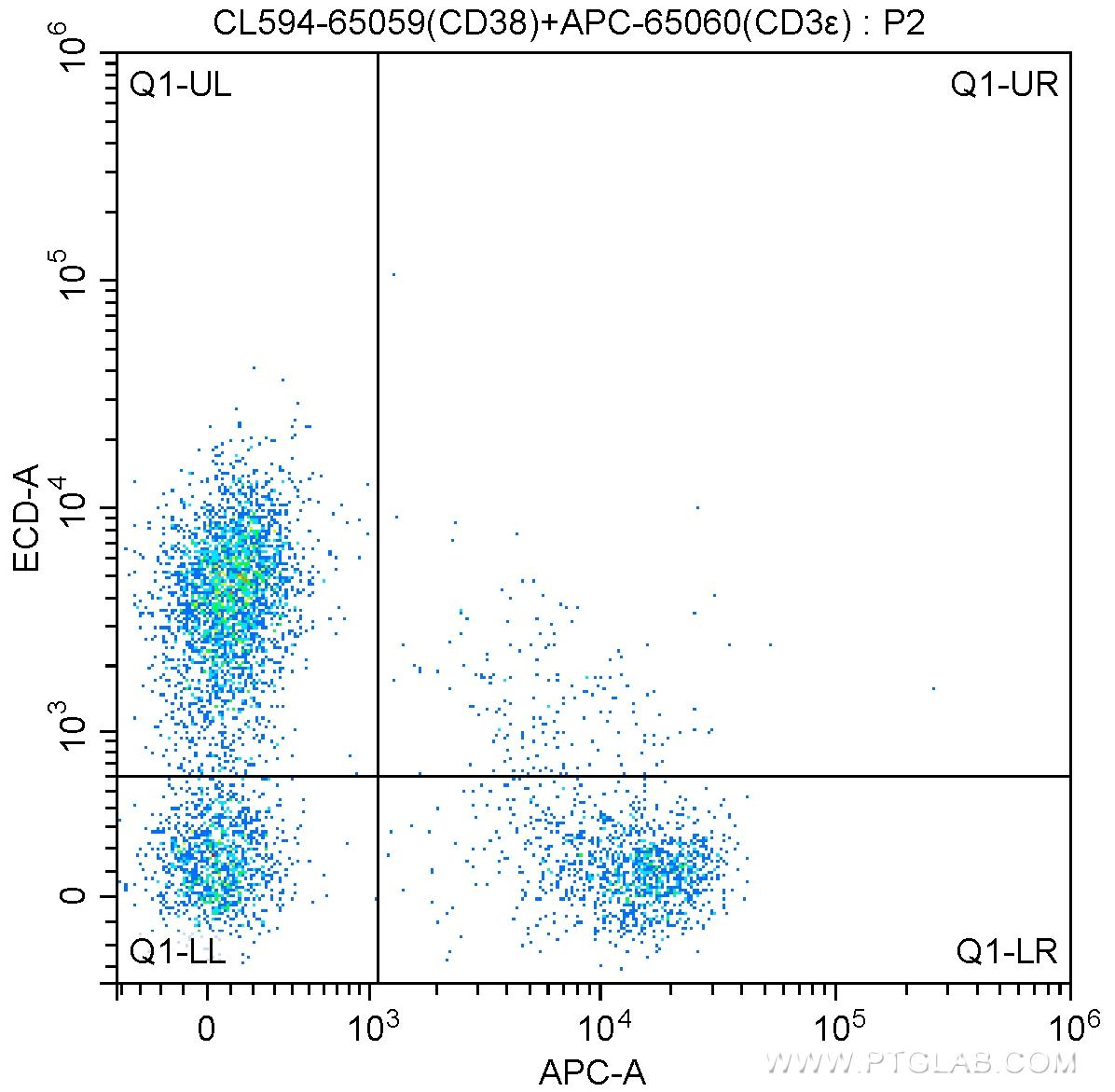

図1. CD38抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC Anti-Mouse CD3ε (APC-65060, Clone: 145-2C11) and 5.00 ul CoraLite®594-conjugated Anti-Mouse CD38 (CL594-65059, Clone: 90). Cells were not fixed.

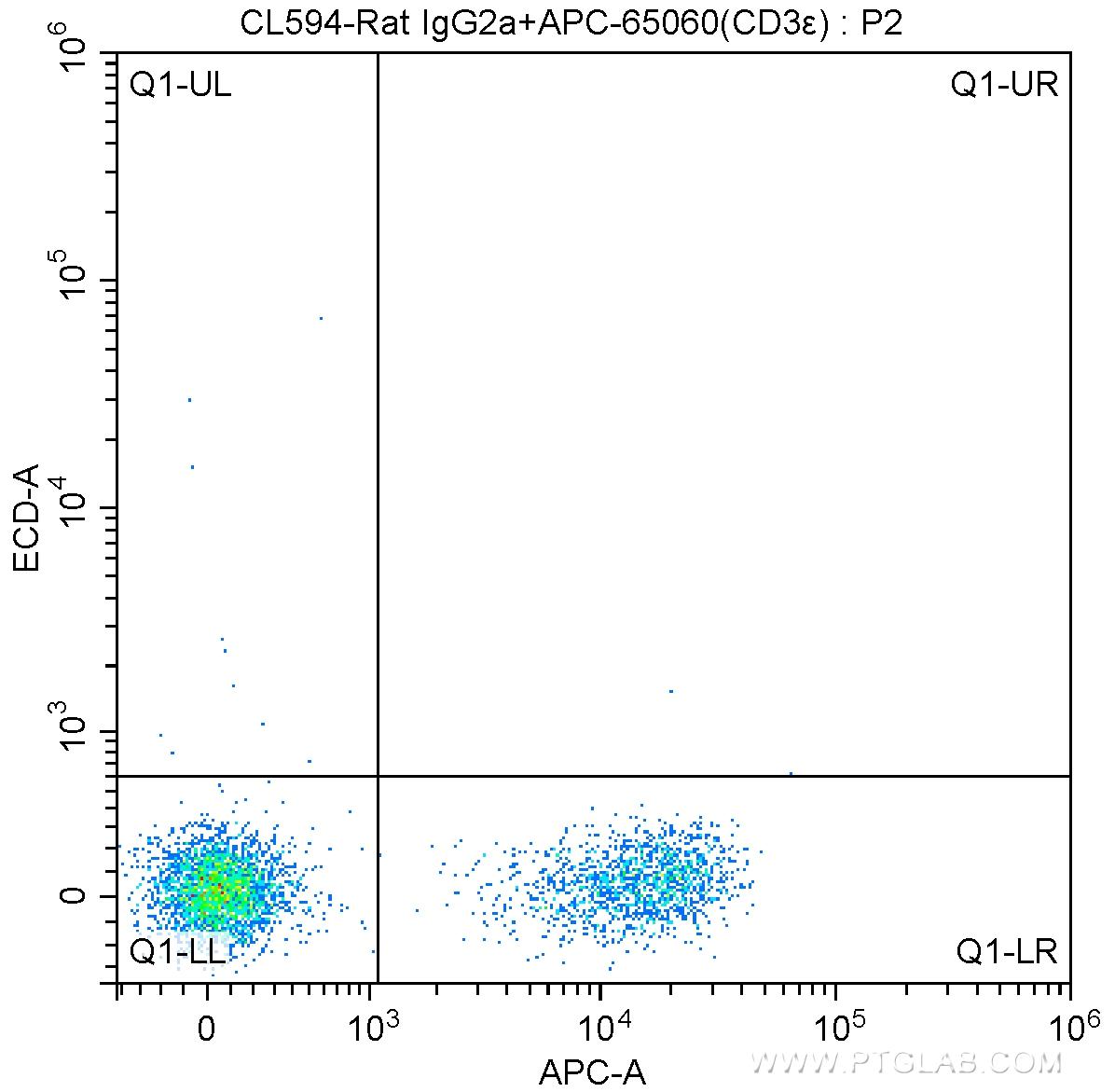

図2. アイソタイプコントロール抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC Anti-Mouse CD3ε (APC-65060, Clone: 145-2C11) and CoraLite®594-conjugated Rat IgG2a isotype control antibody. Cells were not fixed.
■ CD38 モノクローナル抗体(品番:CL647-65059)

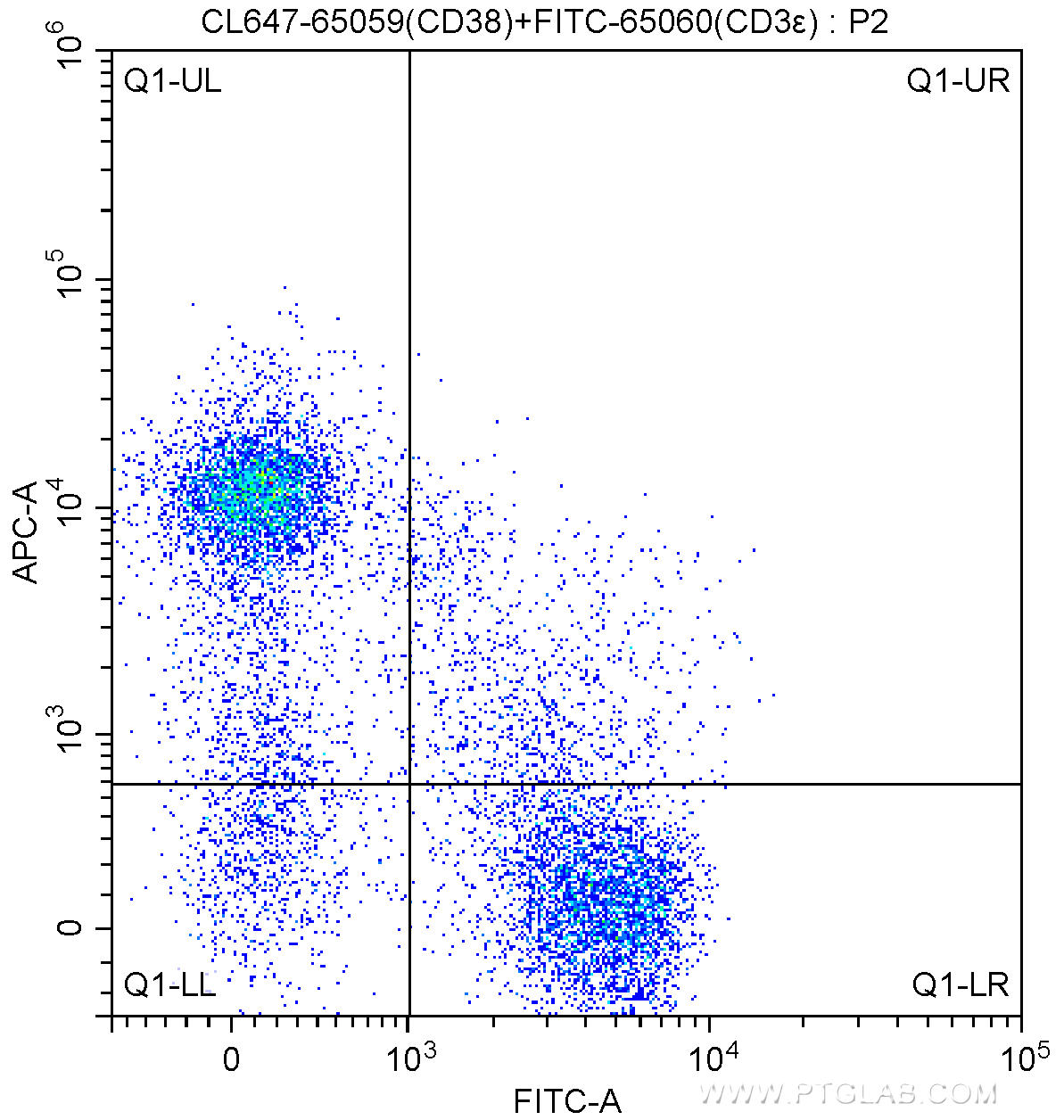

図1. CD38抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC Anti-Mouse CD3ε (FITC-65060, Clone: 145-2C11) and 5.00 ul CoraLite®647-conjugated Anti-Mouse CD38 (CL647-65059, Clone: 90). Cells were not fixed.
図2. アイソタイプコントロール抗体とCD3ε抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC Anti-Mouse CD3ε (FITC-65060, Clone: 145-2C11) and CoraLite®647-conjugated Rat IgG2a isotype control antibody. Cells were not fixed.
