■ CD62L (L-Selectin) モノクローナル抗体(品番:65123-1-Ig)

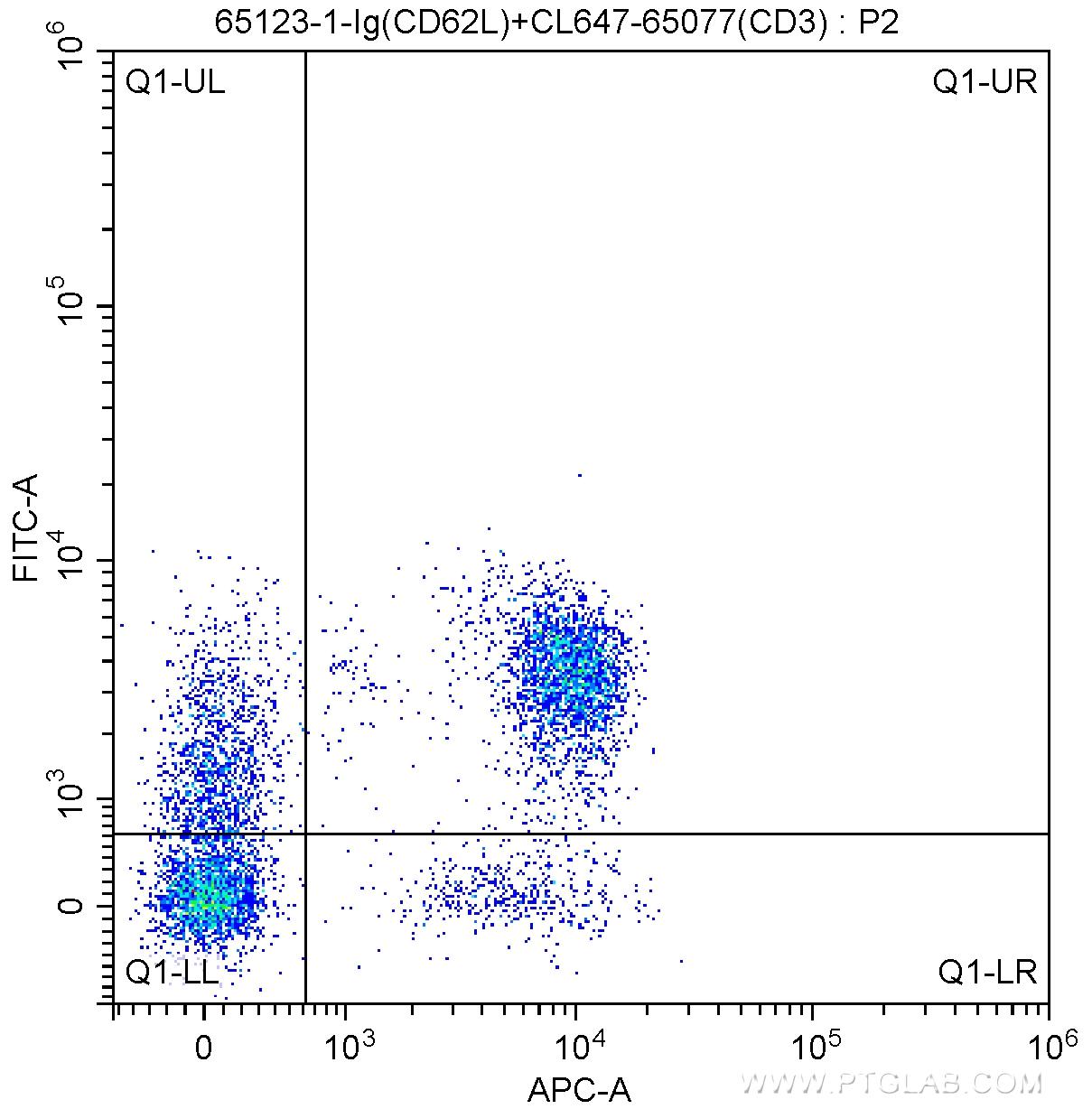

図1. CD62L抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 5 ul CoraLite®647-conjugated Anti-Mouse CD3 (CL647-65077, Clone: 17A2), and 0.5 ug Anti-Mouse CD62L (L-Selectin) (65123-1-Ig, Clone: MEL-14) and FITC Anti-Rat IgG2a Antibody at dilution 1:200. Cells were not fixed.

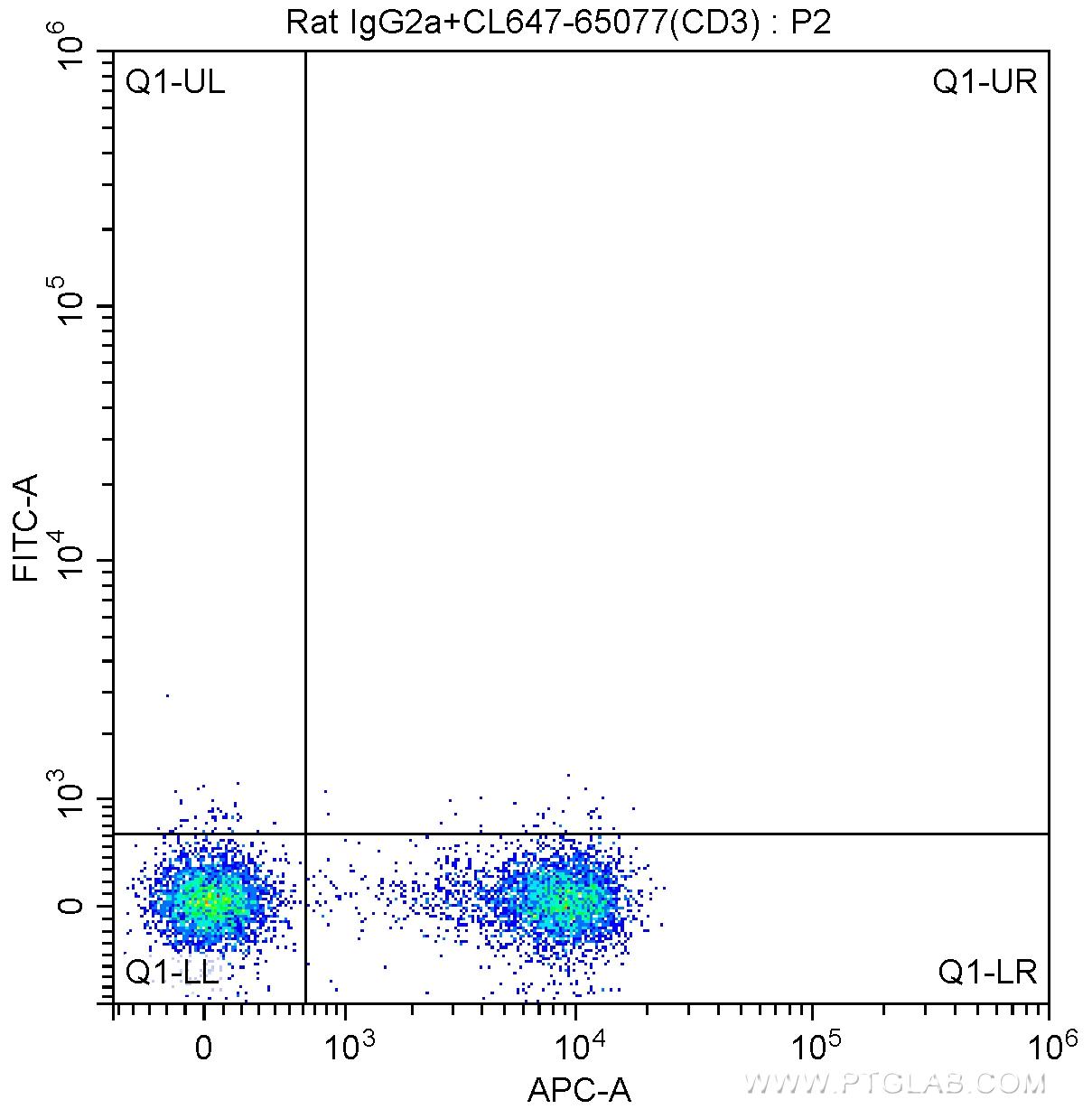

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 5 ul CoraLite®647-conjugated Anti-Mouse CD3 (CL647-65077, Clone: 17A2), and 0.5 ug Rat IgG2a Isotype Control and FITC Anti-Rat IgG2a Antibody at dilution 1:200. Cells were not fixed.
■ CD62L (L-Selectin) モノクローナル抗体(品番:FITC-65123)

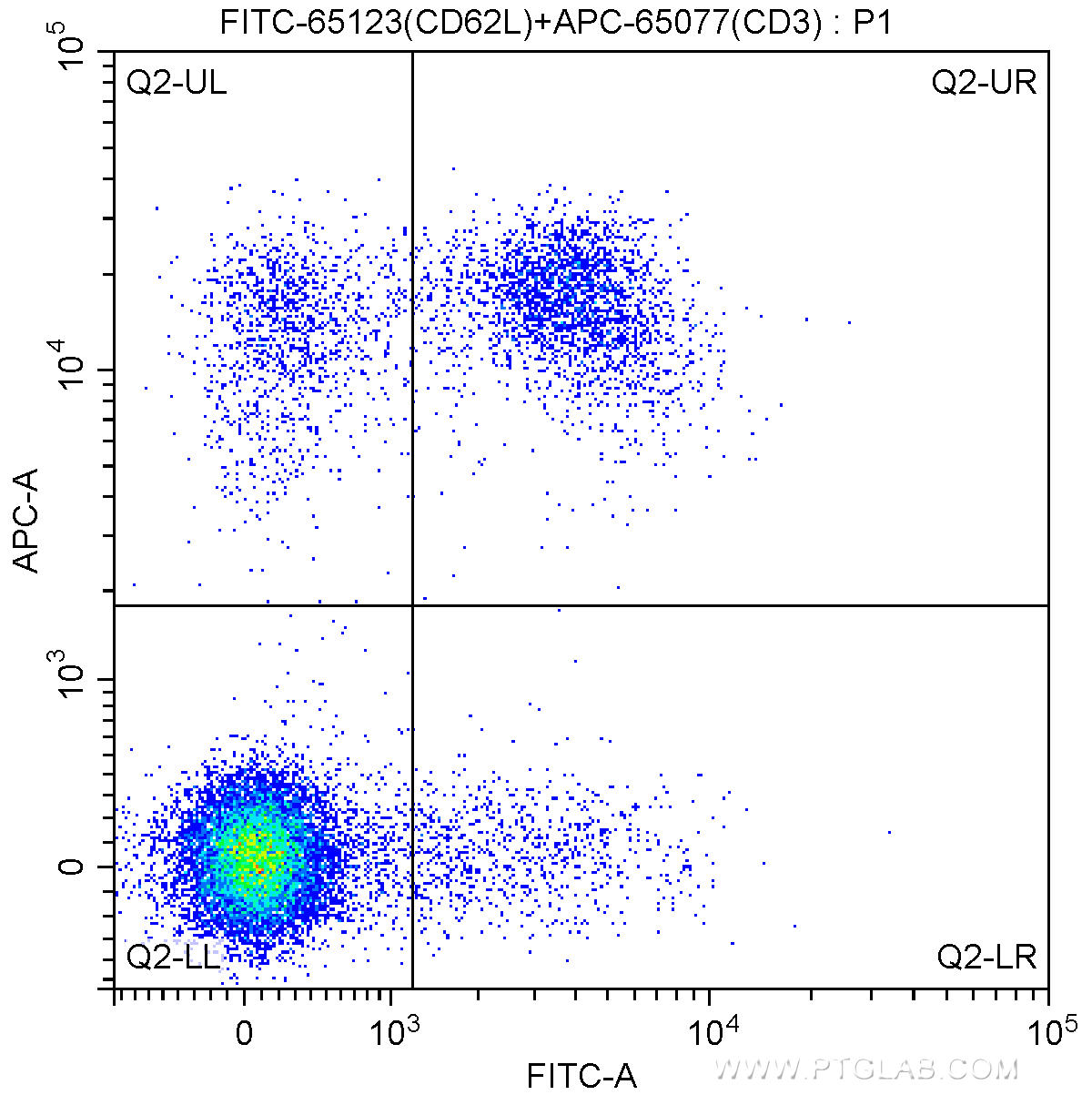

図1. CD62L抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and 0.25 ug FITC-Anti-Mouse CD62L (L-Selectin) (FITC-65123, Clone: MEL-14). Cells were not fixed.

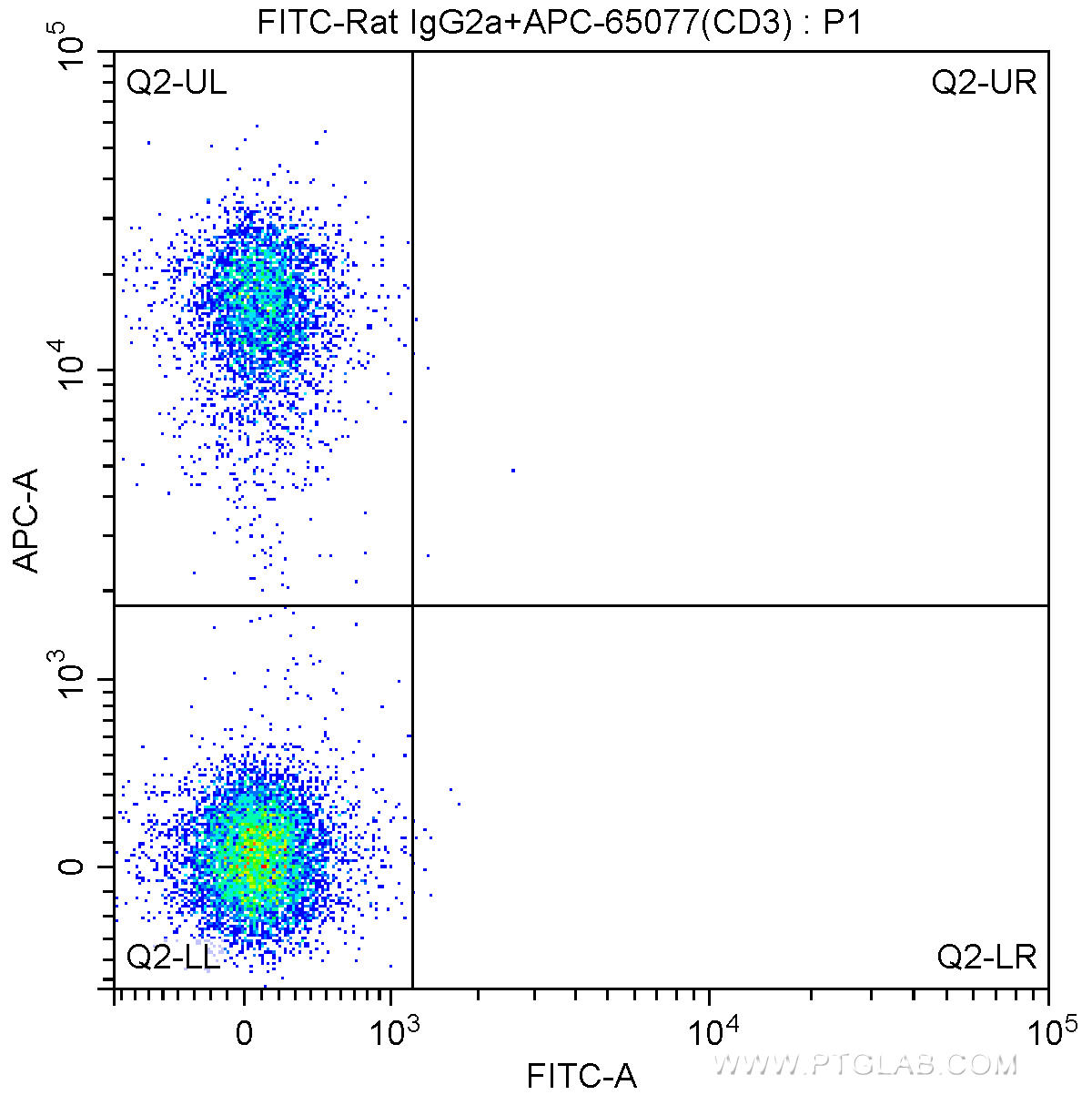

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and 0.25 ug FITC-Rat IgG2a isotype control antibody. Cells were not fixed.
■ CD62L (L-Selectin) モノクローナル抗体(品番:PE-65123)

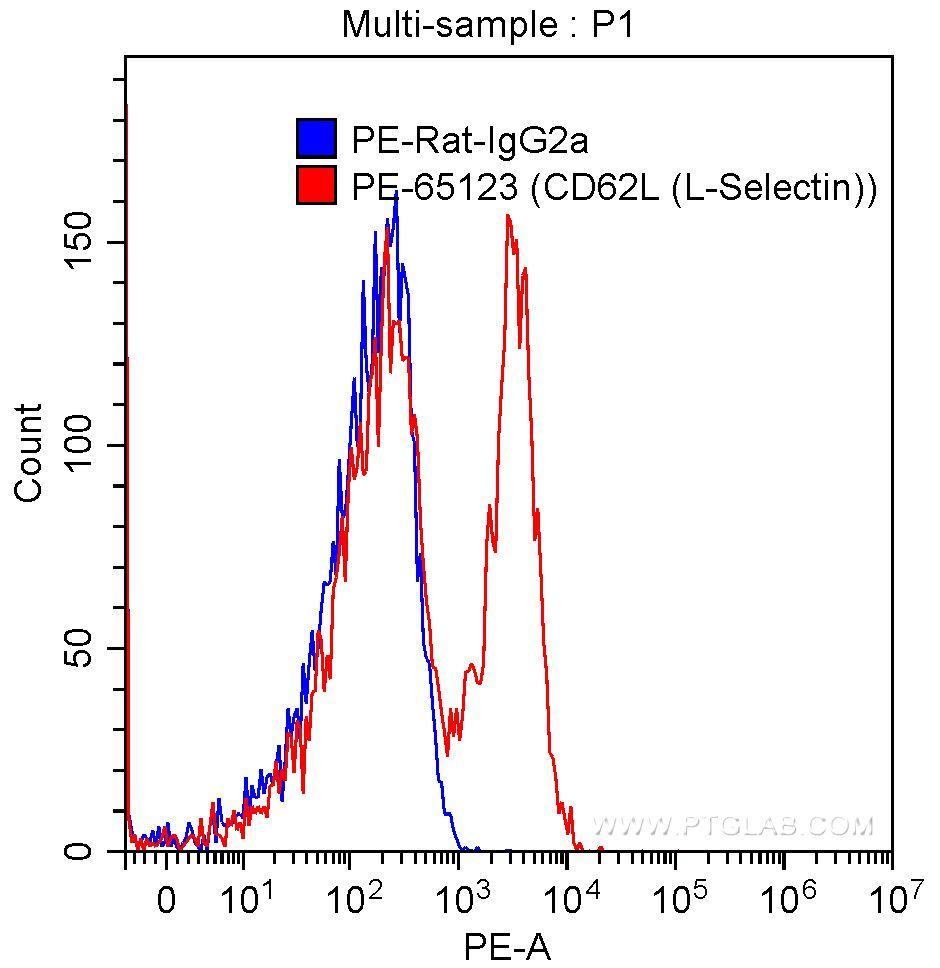

図1. CD62L抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.125 ug PE Anti-Mouse CD62L (L-Selectin) (PE-65123, Clone:MEL-14) (red) or 0.125 ug PE-rat IgG2a isotype control (blue). Samples were not fixed.
■ CD62L (L-Selectin) モノクローナル抗体(品番:APC-65123)

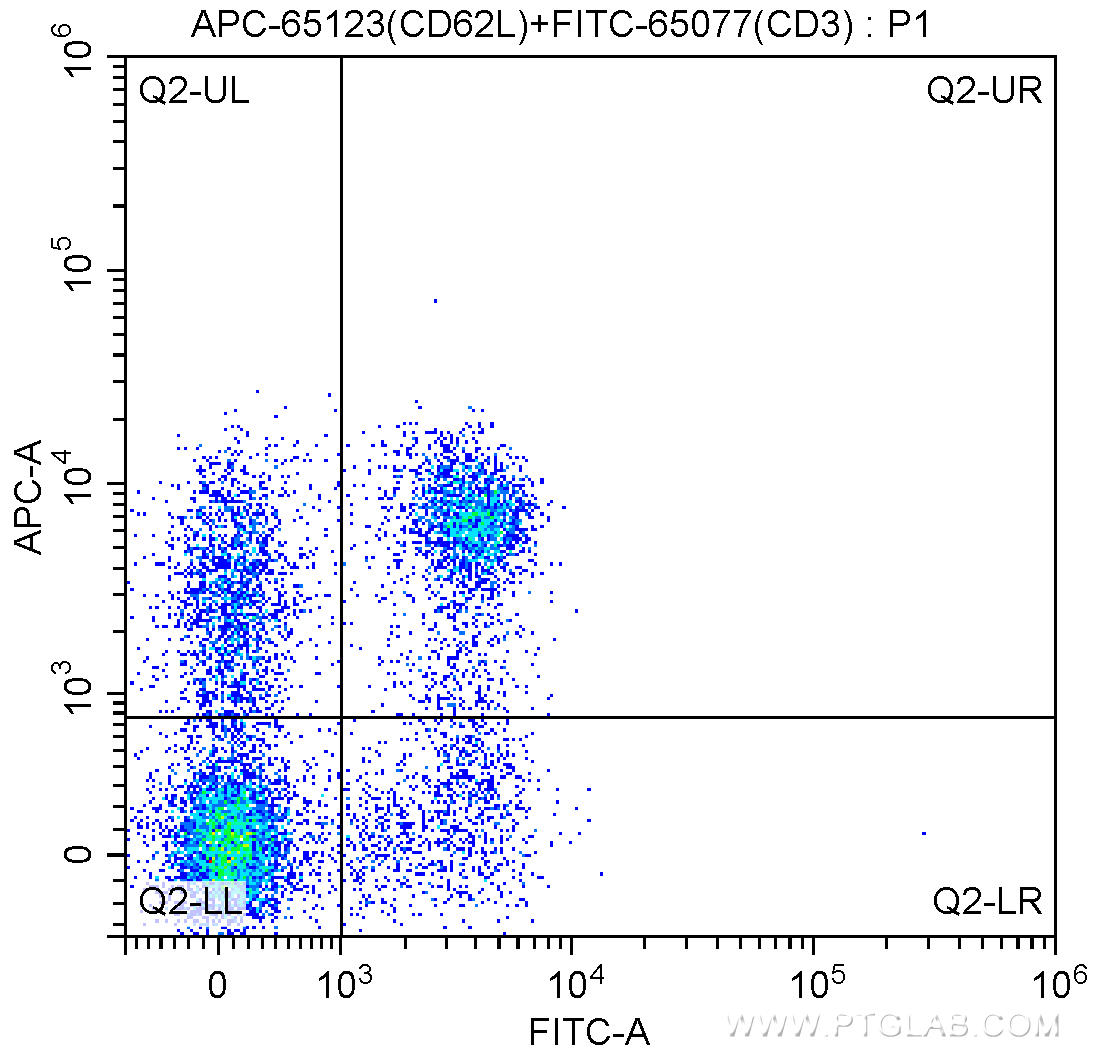

図1. CD62L抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC-Anti-Mouse CD3 (FITC-65077, Clone: 17A2) and 0.06 ug APC-Anti-Mouse CD62L (L-Selectin) (APC-65123, Clone: MEL-14). Cells were not fixed.

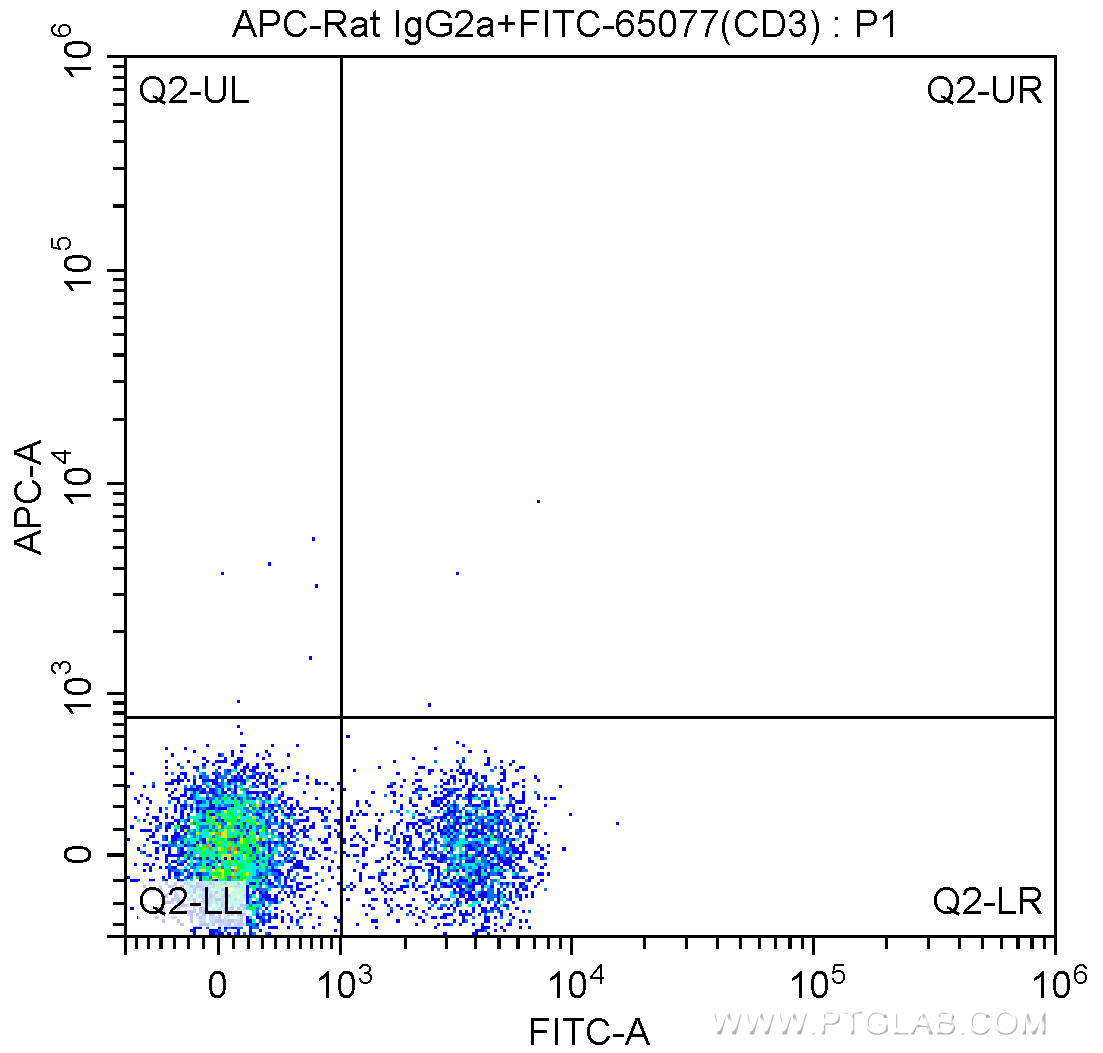

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC-Anti-Mouse CD3 (FITC-65077, Clone: 17A2) and 0.06 ug APC-Rat IgG2a isotype control antibody. Cells were not fixed.
■ CD62L (L-Selectin) モノクローナル抗体(品番:CL647-65123)

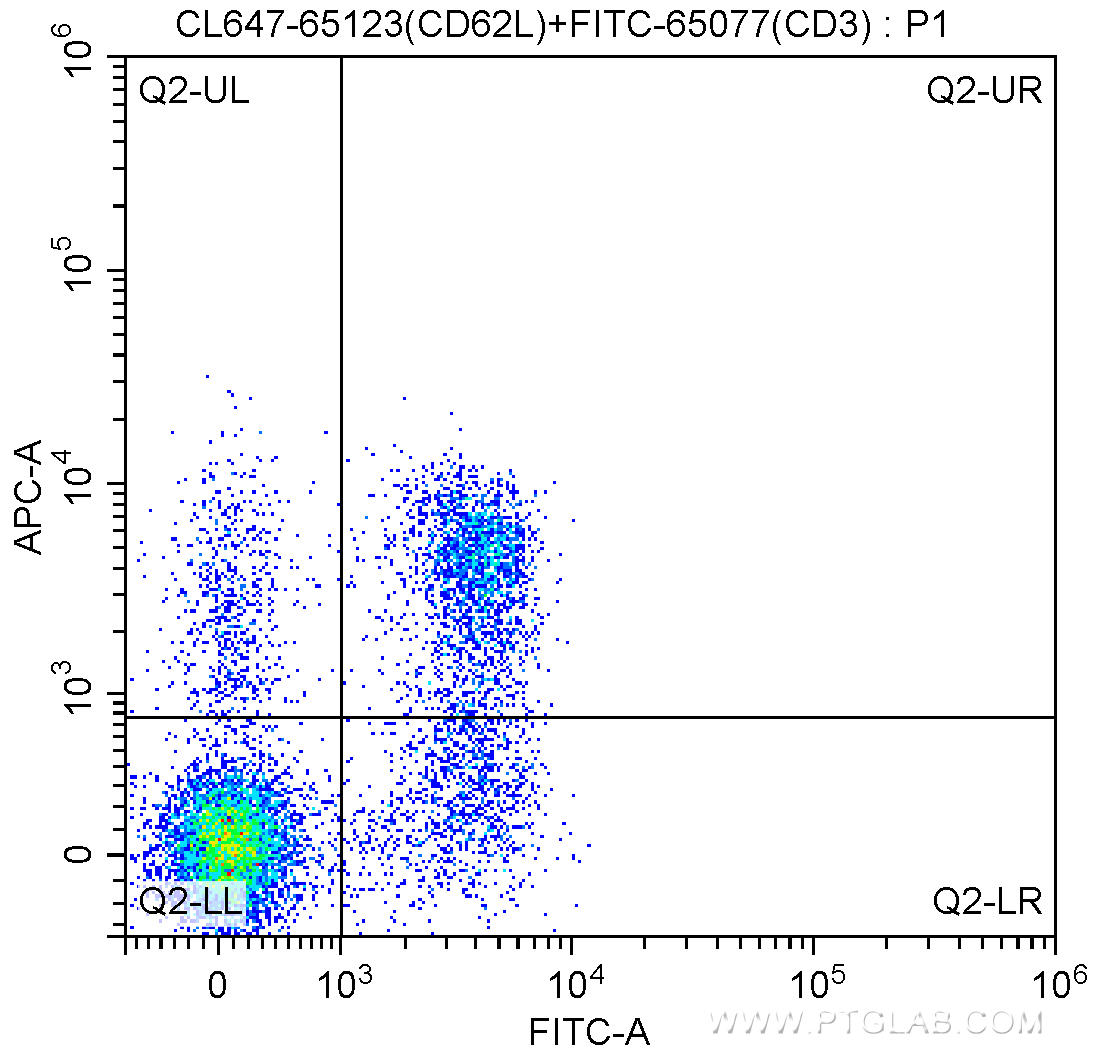

図1. CD62L抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC-Anti-Mouse CD3 (FITC-65077, Clone: 17A2) and 5.00 ul CoraLite®647-conjugated Anti-Mouse CD62L (L-Selectin) (CL647-65123, Clone: MEL-14). Cells were not fixed.
図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC-Anti-Mouse CD3 (FITC-65077, Clone: 17A2) and CoraLite®647-conjugated Rat IgG2a isotype control antibody. Cells were not fixed.
