■ MHC Class II (I-A/I-E) モノクローナル抗体(品番:65122-1-Ig)

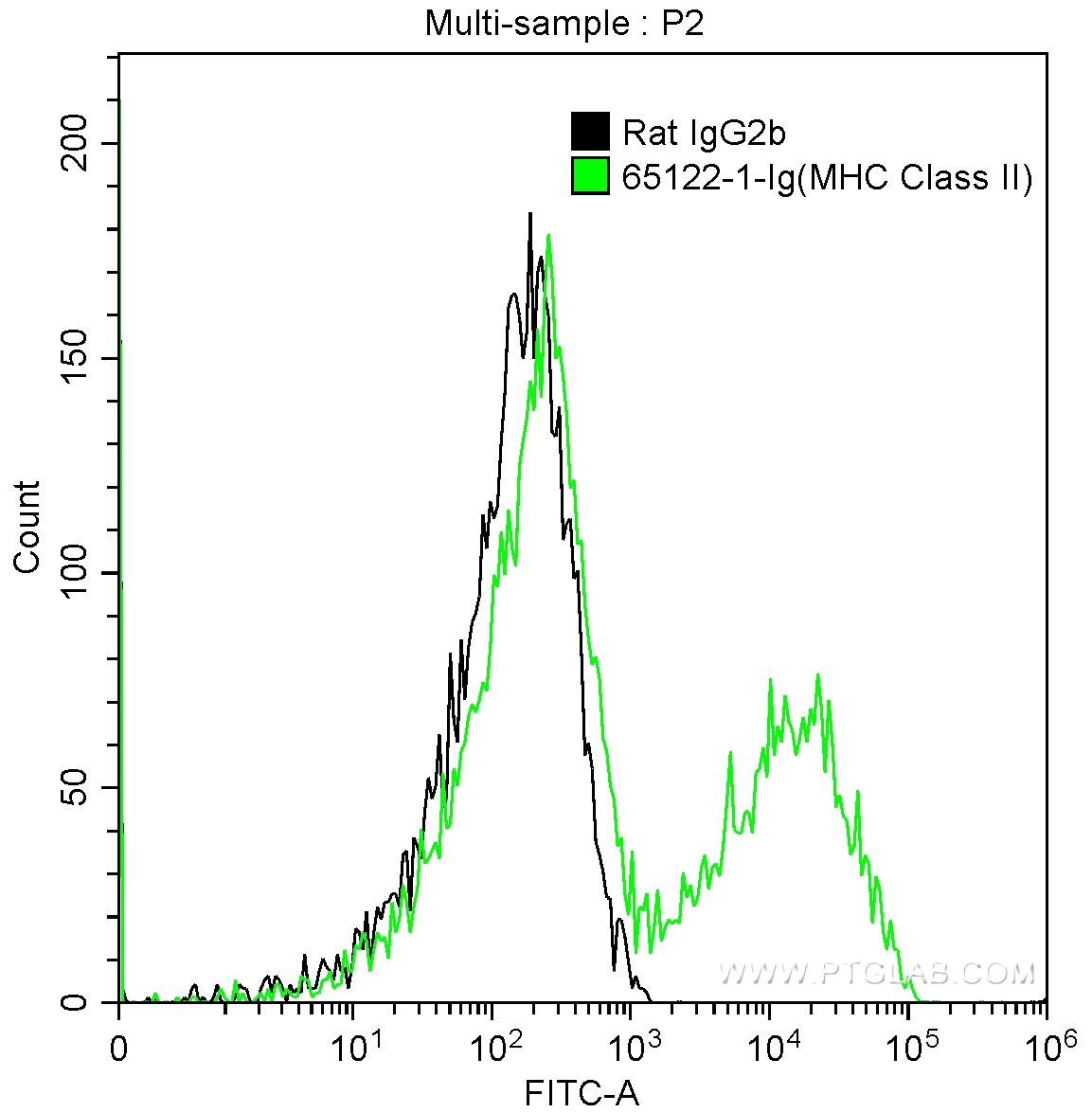

図1. MHC Class II抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 mouse splenocytes were surface stained with 0.5 ug Anti-Mouse MHC Class II (I-A/I-E) (65122-1-Ig, Clone: M5/114.15.2) and FITC anti-rat IgG2b Antibody at dilution 1:200 (green), or stained with 0.5 ug rat IgG2b isotype control antibody and FITC anti-rat IgG2b Antibody at dilution 1:200 (black). Samples were not fixed.
■ MHC Class II (I-A/I-E) モノクローナル抗体(品番:FITC-65122)

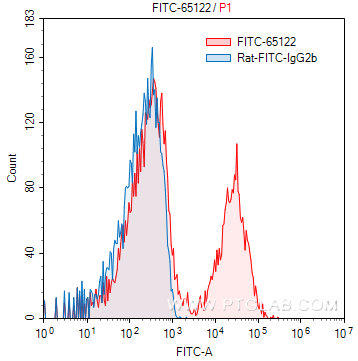

図1. MHC Class II抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug FITC-Anti-Mouse MHC Class II (I-A/I-E) (FITC-65122, clone M5/114.15.2) (red) or 0.20 ug FITC-rat IgG2b isotype control (blue). Samples were not fixed.
■ MHC Class II (I-A/I-E) モノクローナル抗体(品番:PE-65122)

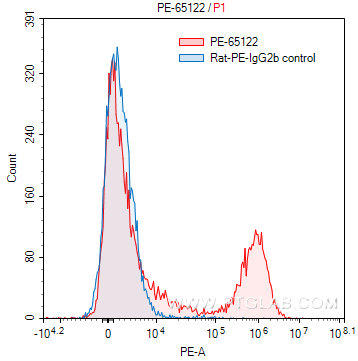

図1. MHC Class II抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug PE-Anti-Mouse MHC Class II (I-A/I-E) (PE-65122, clone M5/114.15.2) (red) or 0.20 ug PE-rat IgG2b isotype control (blue). Samples were not fixed.
■ MHC Class II (I-A/I-E) モノクローナル抗体(品番:APC-65122)

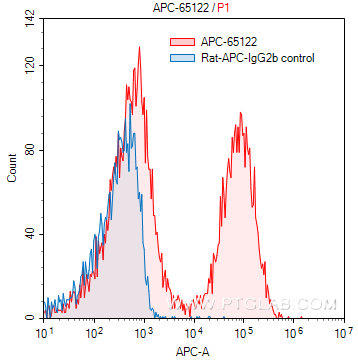

図1. MHC Class II抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with 0.20 ug APC-Anti-Mouse MHC Class II (I-A/I-E) (APC-65122, clone M5/114.15.2) (red) or 0.20 ug APC-rat IgG2b isotype control (blue). Samples were not fixed.
■ MHC Class II (I-A/I-E) モノクローナル抗体(品番:CL488-65122)

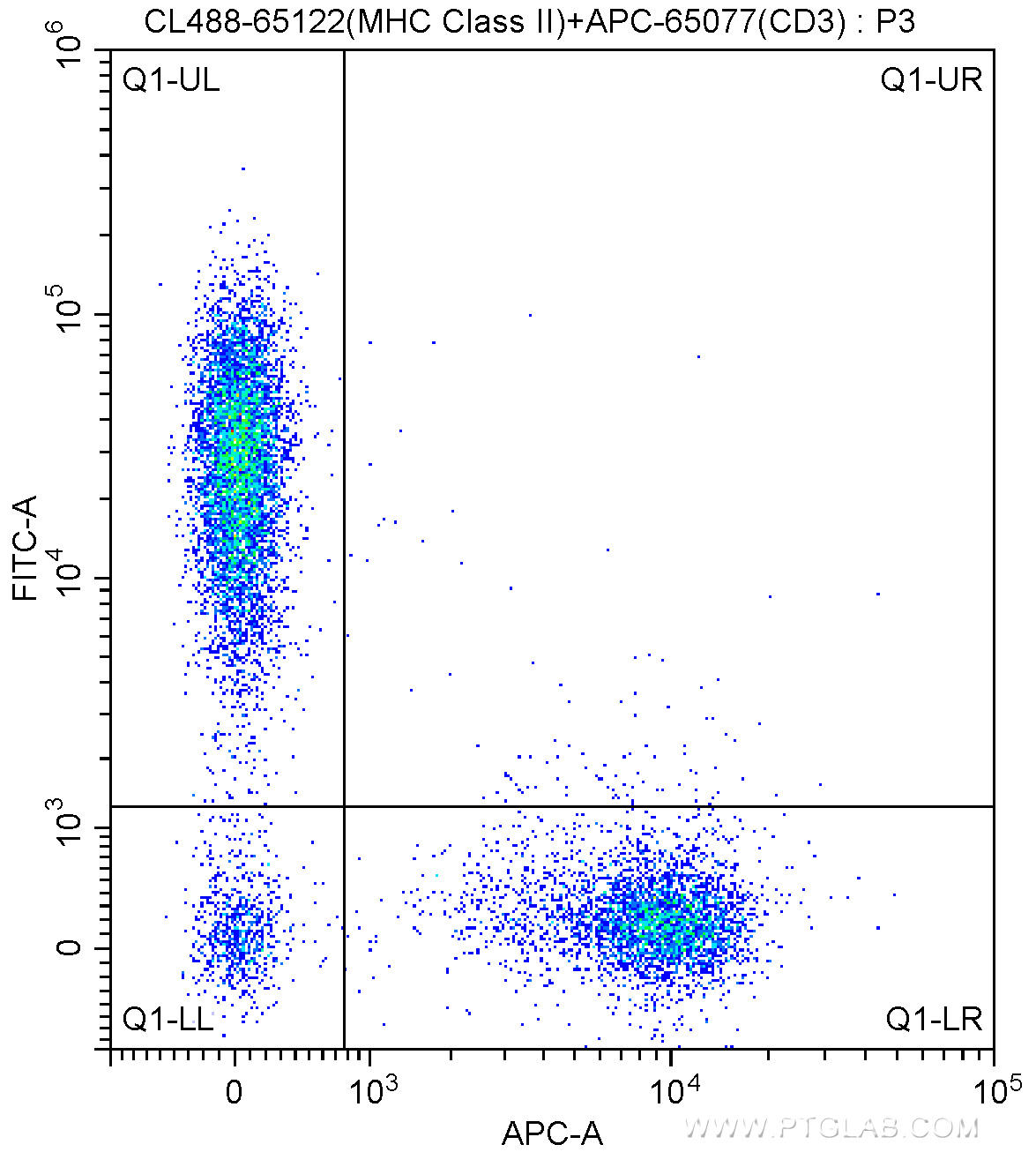

図1. MHC Class II抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and 5.00 ul CoraLite®488-conjugated Anti-Mouse MHC Class II (I-A/I-E) (CL488-65122, Clone: M5/114.15.2). Cells were not fixed.図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with APC-Anti-Mouse CD3 (APC-65077, Clone: 17A2) and CoraLite®488-conjugated Rat IgG2b isotype control antibody. Cells were not fixed.
■ MHC Class II (I-A/I-E) モノクローナル抗体(品番:CL647-65122)

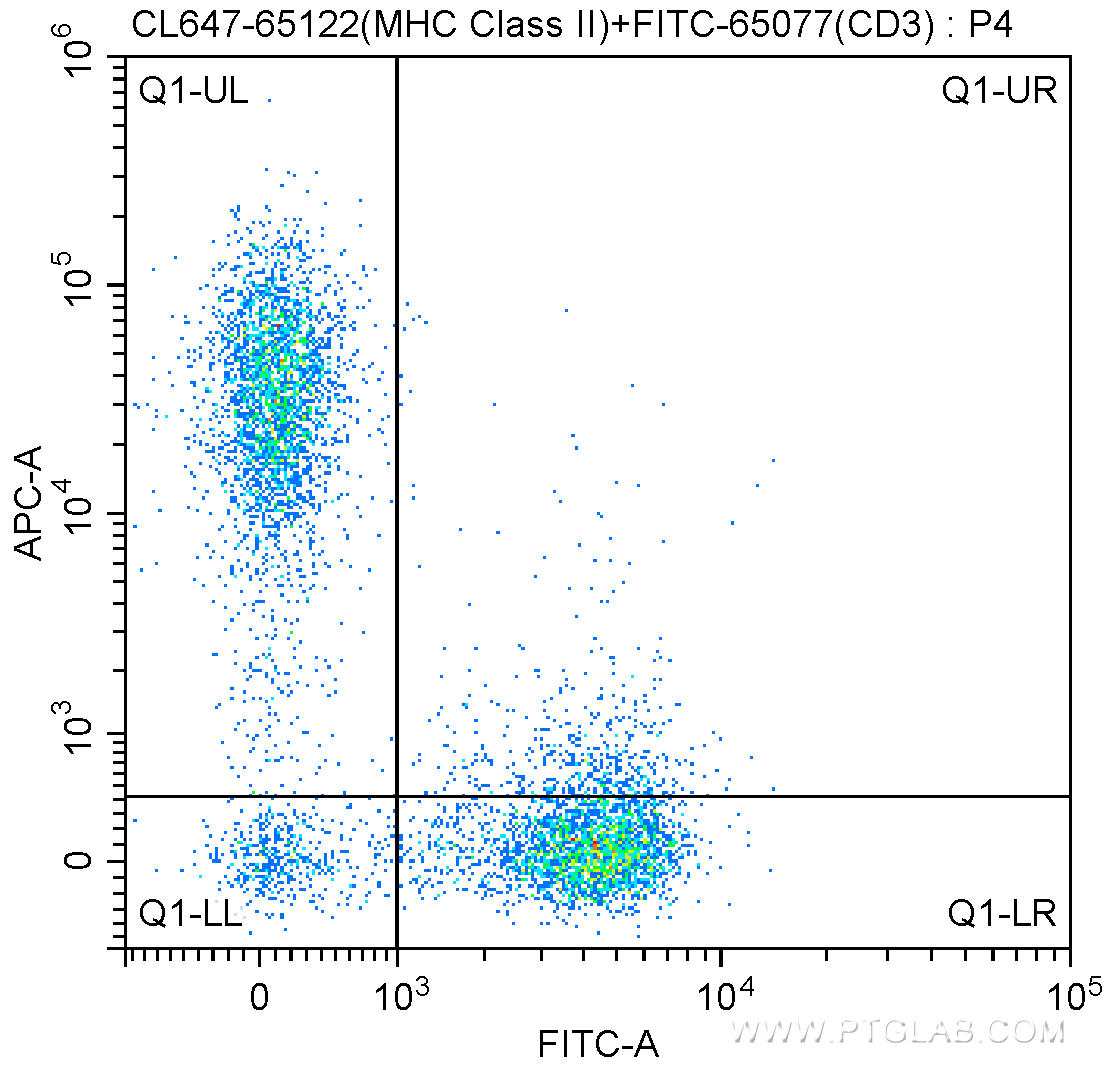

図1. MHC Class II抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC-Anti-Mouse CD3 (FITC-65077, Clone: 17A2) and 5.00 ul CoraLite®647-conjugated Anti-Mouse MHC Class II (I-A/I-E) (CL647-65122, Clone: M5/114.15.2). Cells were not fixed.図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析

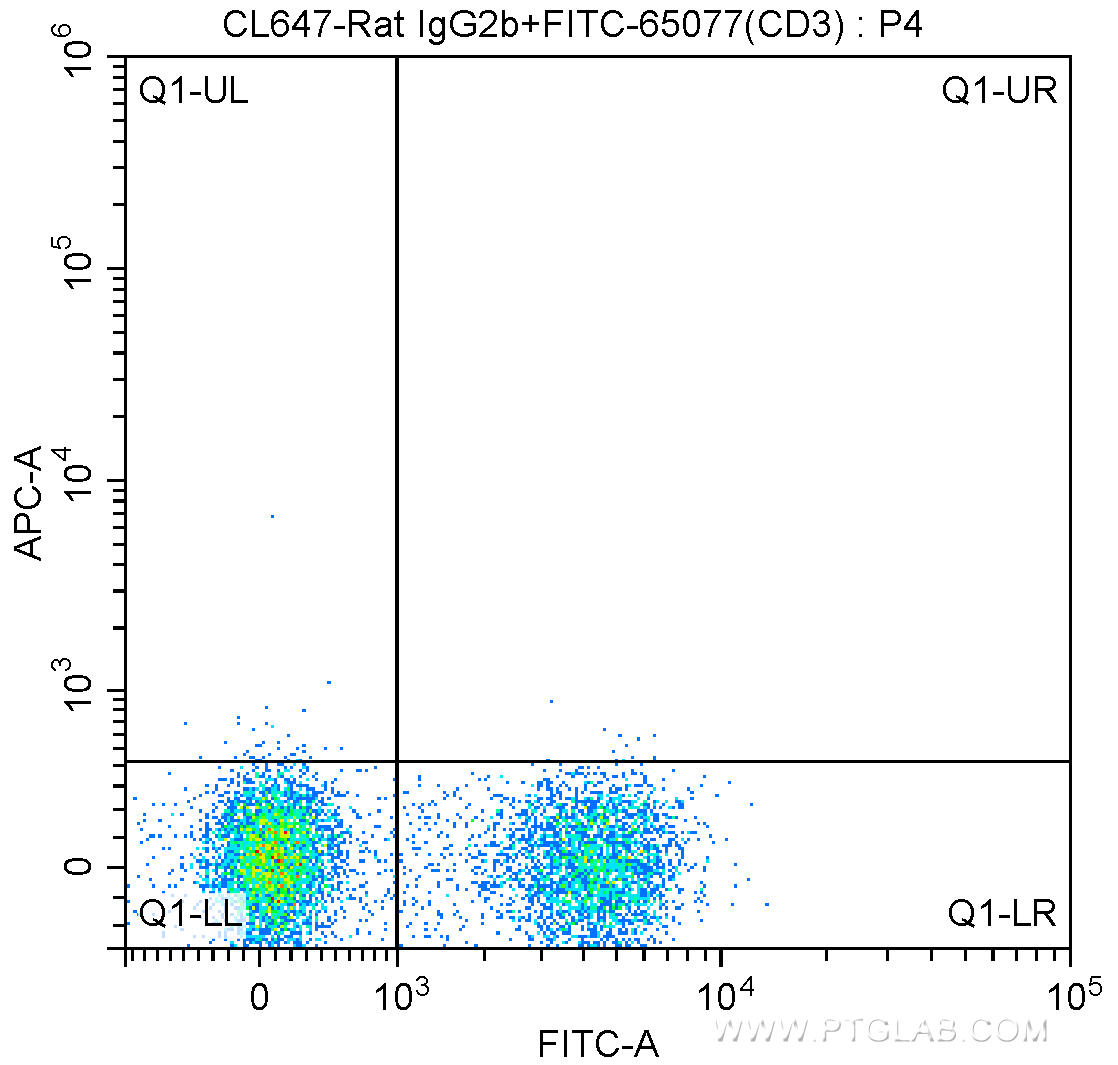

1X10^6 C57BL/6 mouse splenocytes were surface stained with FITC-Anti-Mouse CD3 (FITC-65077, Clone: 17A2) and CoraLite®647-conjugated Rat IgG2b isotype control antibody. Cells were not fixed.
