■ CD4 モノクローナル抗体(品番:65143-1-Ig)

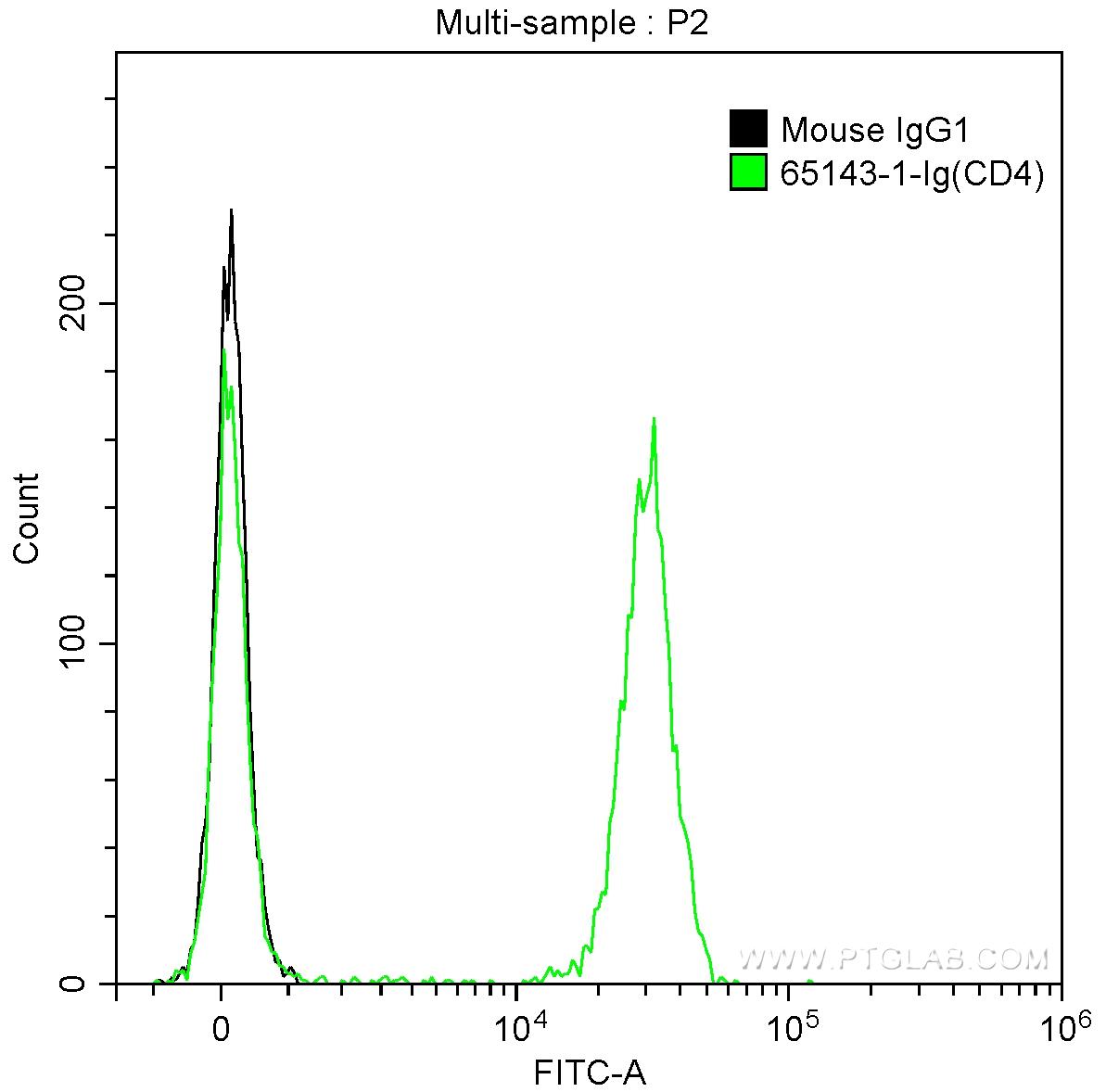

図1. CD4抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with 1 ug Anti-Human CD4 (65143-1-Ig, Clone:RPA-T4) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (green), or stained with 1 ug isotype control antibody and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (black). Samples were not fixed.
■ CD4 モノクローナル抗体(品番:FITC-65143)

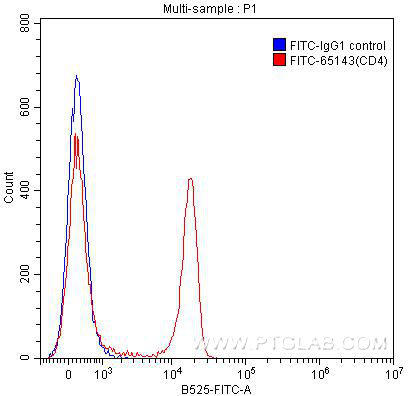

図1. CD4抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with 1 ug FITC-anti-human CD4 (FITC-65143, clone RPA-T4) (red) or 1 ug FITC-mouse IgG1 isotype control (blue). Samples were not fixed.

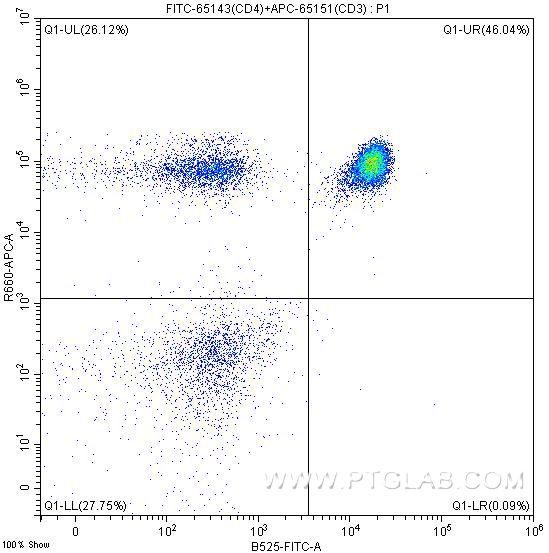

図2. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
0.1 mL human whole blood cells were surface stained with 1 ug APC-anti-human CD3 (APC-65151, clone UCHT1) and 1 ug FITC-anti-human CD4 (FITC-65143, clone RPA-T4). Samples were then treated with red blood cell lysis buffer and were gated for lymphocytes for analysis of CD3 and CD4 staining. Samples were not fixed.
■ CD4 モノクローナル抗体(品番:PE-65143)

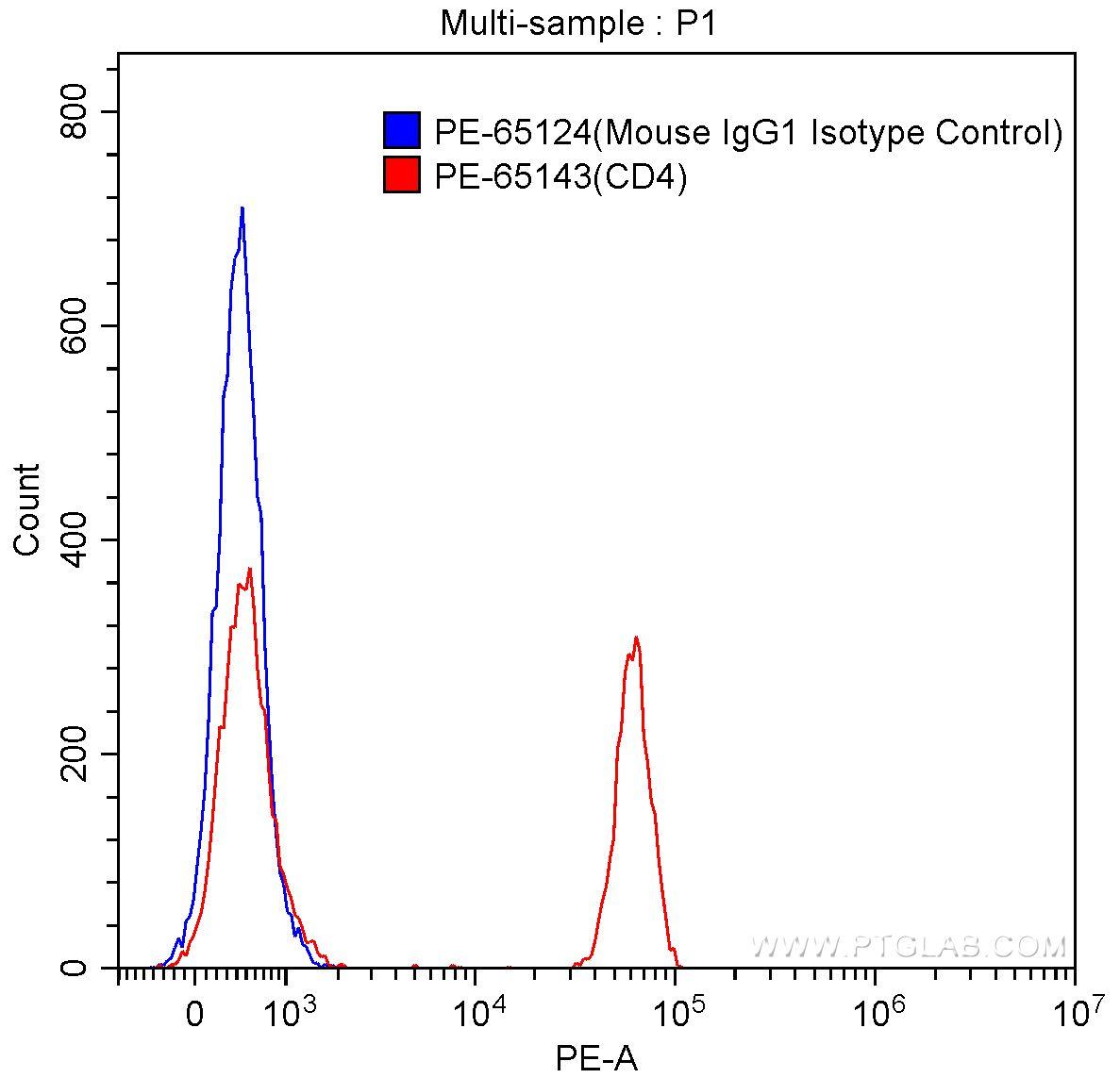

図1. CD4抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with 0.5 ug PE-anti-human CD4 (PE-65143, clone RPA-T4) (red) or 0.5 ug PE-mouse IgG1 isotype control (blue). Samples were not fixed.
■ CD4 モノクローナル抗体(品番:APC-65143)

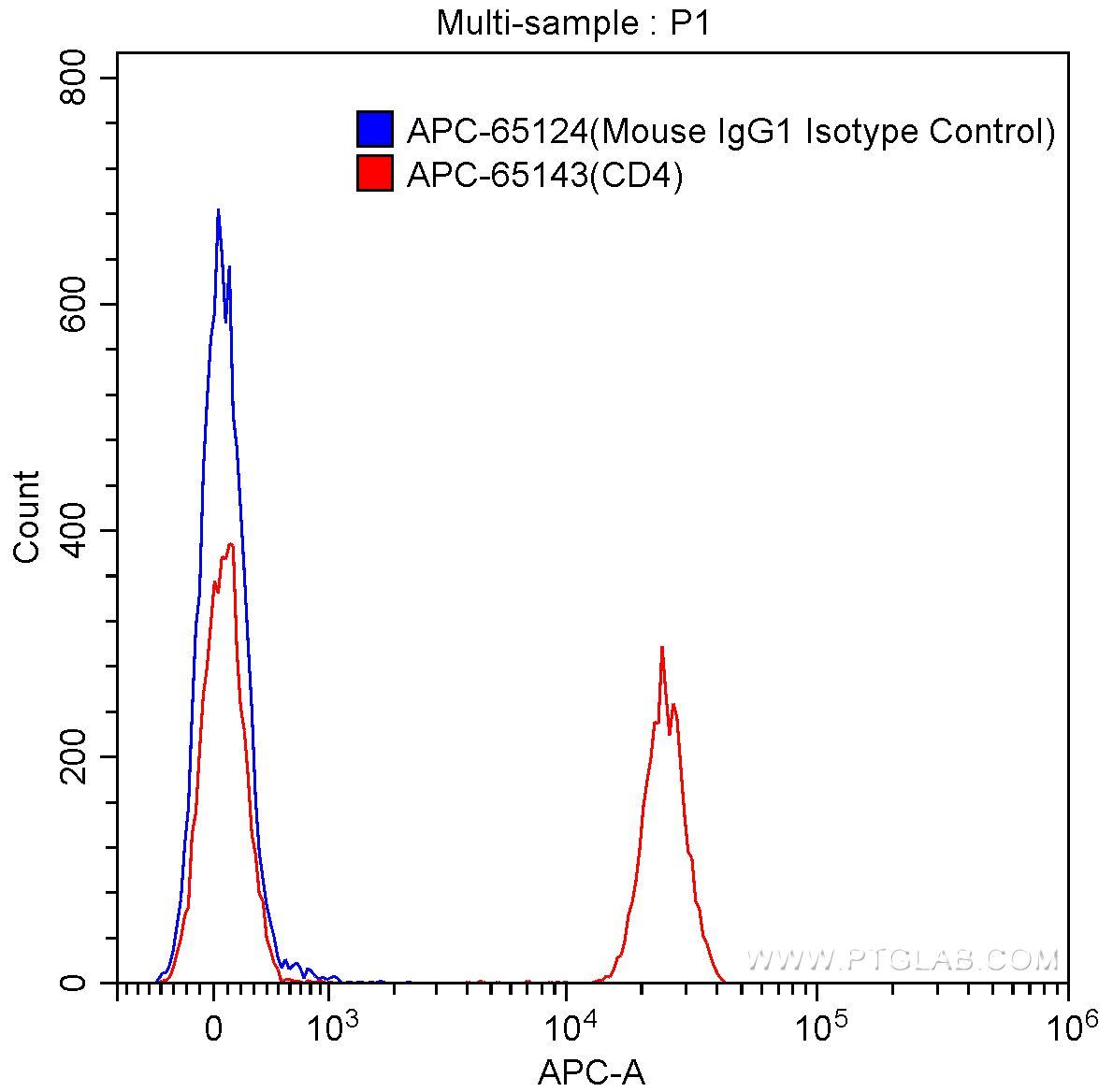

図1. CD4抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with 0.5 ug APC-anti-human CD4 (APC-65143, clone RPA-T4) (red) or 0.5 ug APC-mouse IgG1 isotype control (blue). Samples were not fixed.
■ CD4 モノクローナル抗体(品番:CL488-65143)

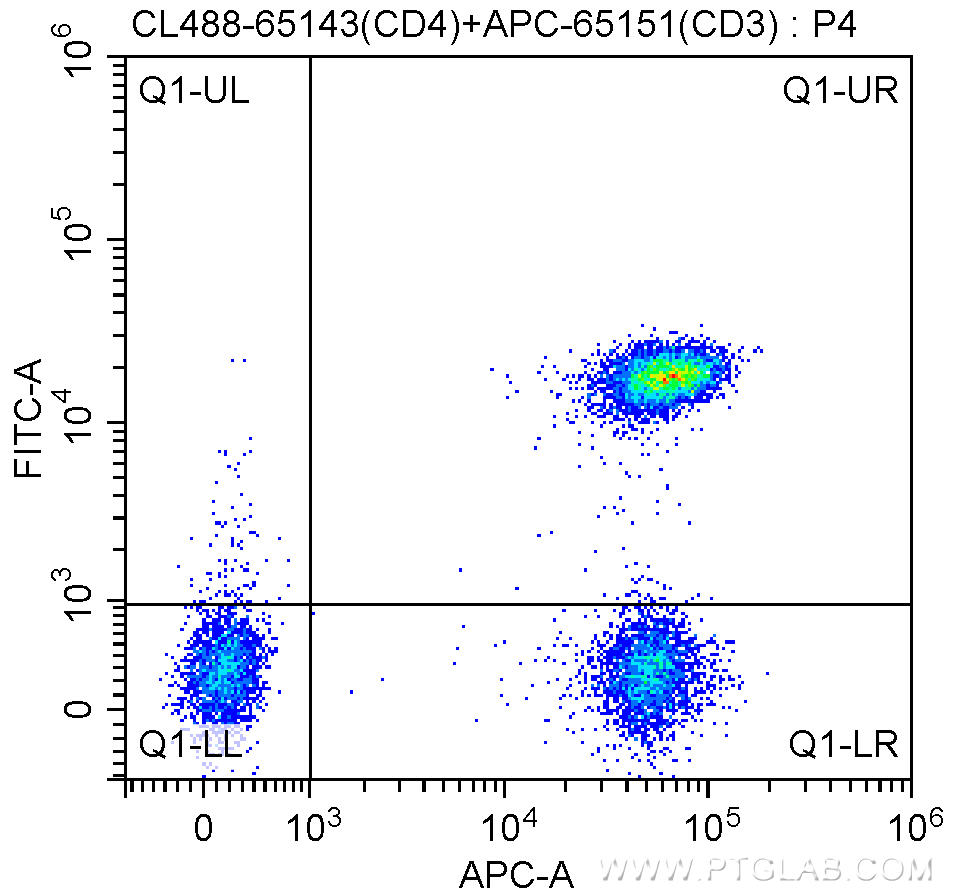

図1. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and 5.00 ul CoraLite®488-conjugated Anti-Human CD4 (CL488-65143, Clone: RPA-T4). Cells were not fixed.

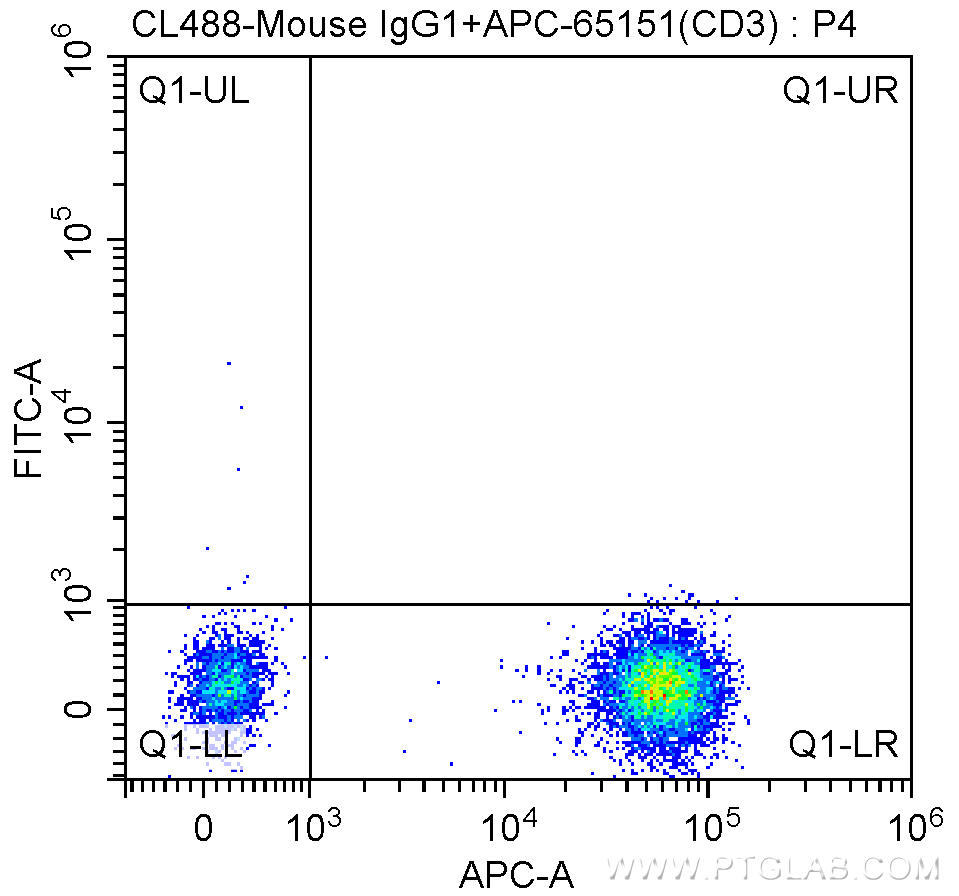

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and CoraLite®488-conjugated Mouse IgG1 isotype control antibody. Cells were not fixed.
■ CD4 モノクローナル抗体(品番:CL647-65143)

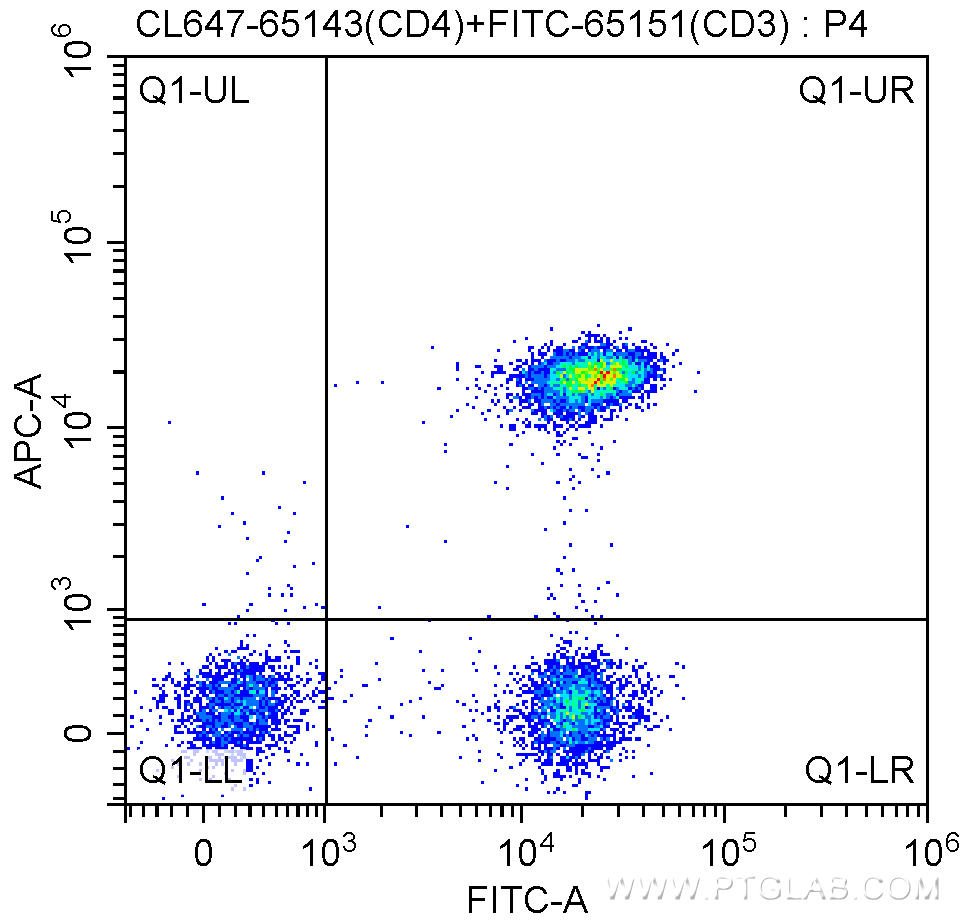

図1. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and 5.00 ul CoraLite®647-conjugated Anti-Human CD4 (CL647-65143, Clone: RPA-T4). Cells were not fixed.

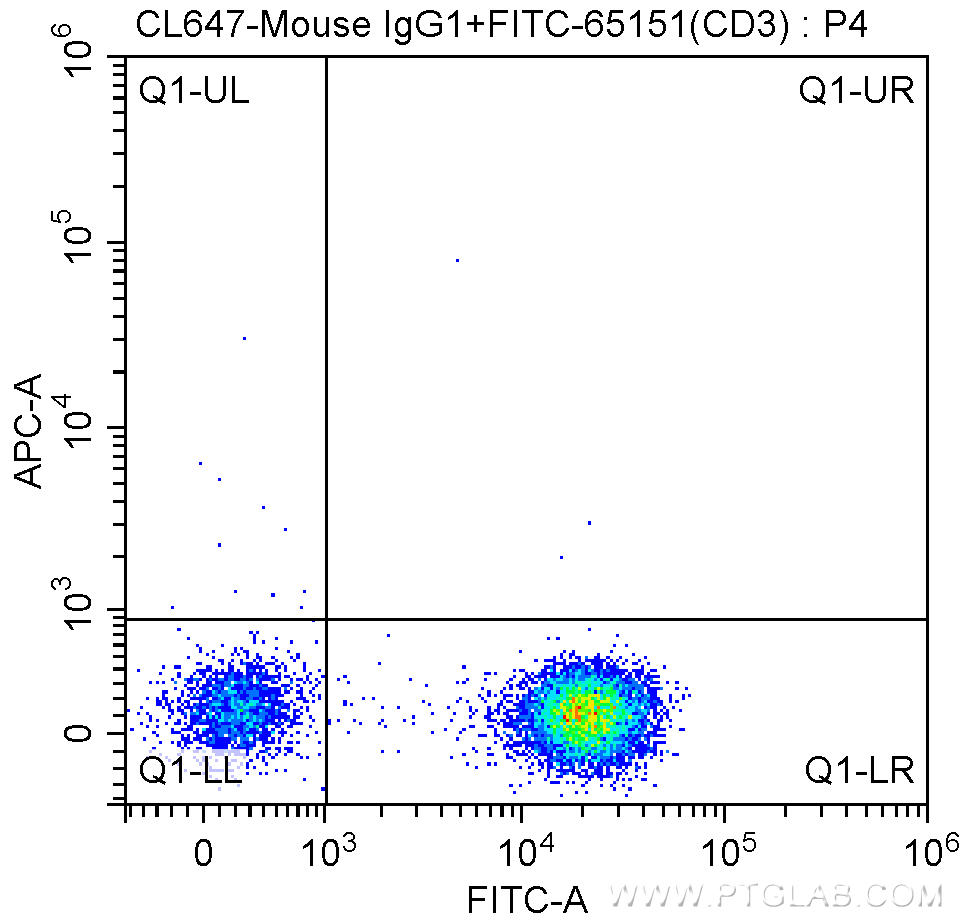

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and CoraLite®647-conjugated Mouse IgG1 isotype control antibody. Cells were not fixed.
