■ CD4 モノクローナル抗体(品番:65147-1-Ig)

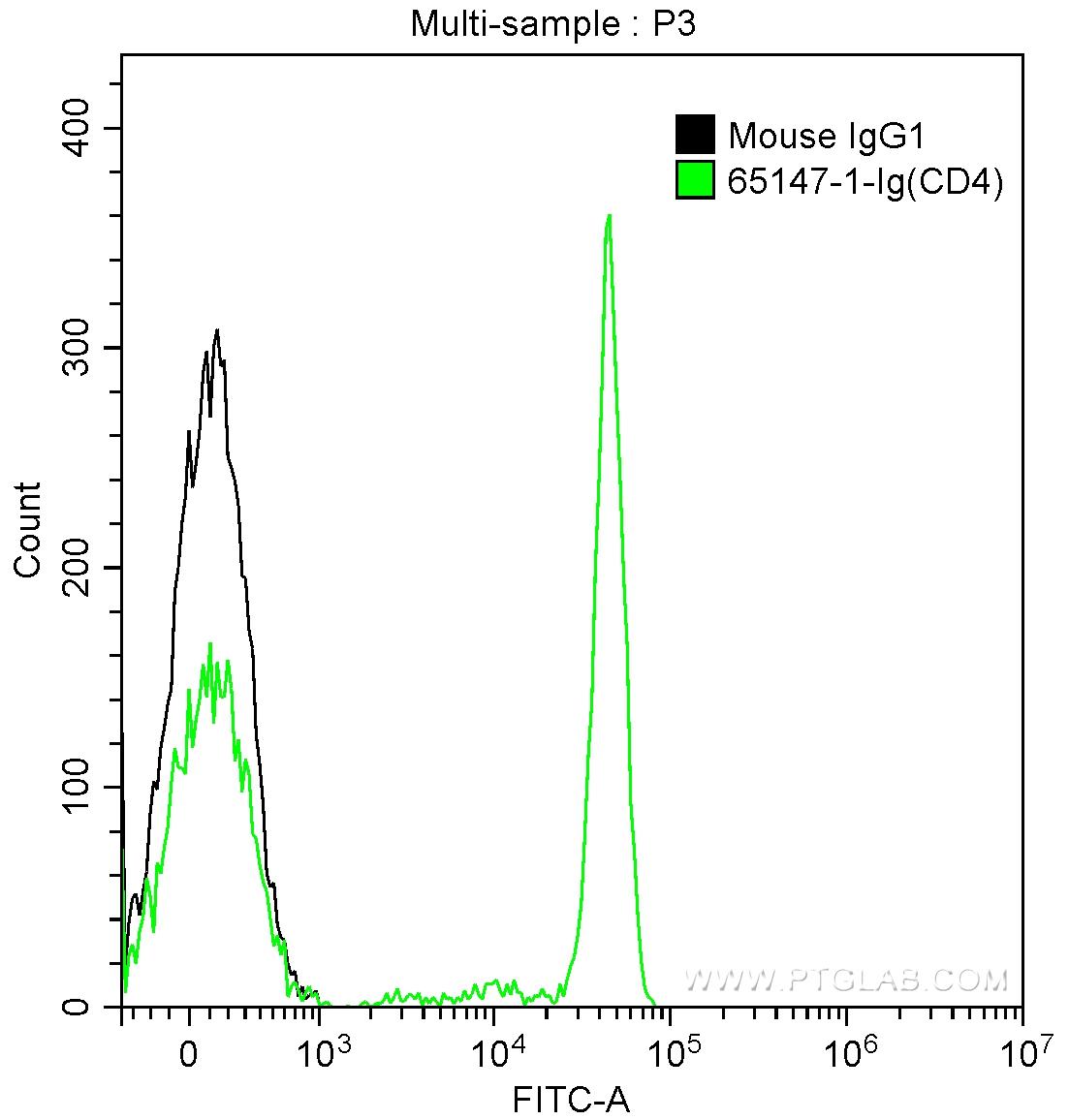

図1. CD4抗体とアイソタイプコントロール抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with 0.5 ug Anti-Human CD4 (65147-1-Ig, Clone: SK3) and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (green), or 0.5 ug Mouse IgG1 Isotype Control and CoraLite®488-Conjugated AffiniPure Goat Anti-Mouse IgG(H+L) at dilution 1:1000 (black). Samples were not fixed.
■ CD4 モノクローナル抗体(品番:FITC-65147)

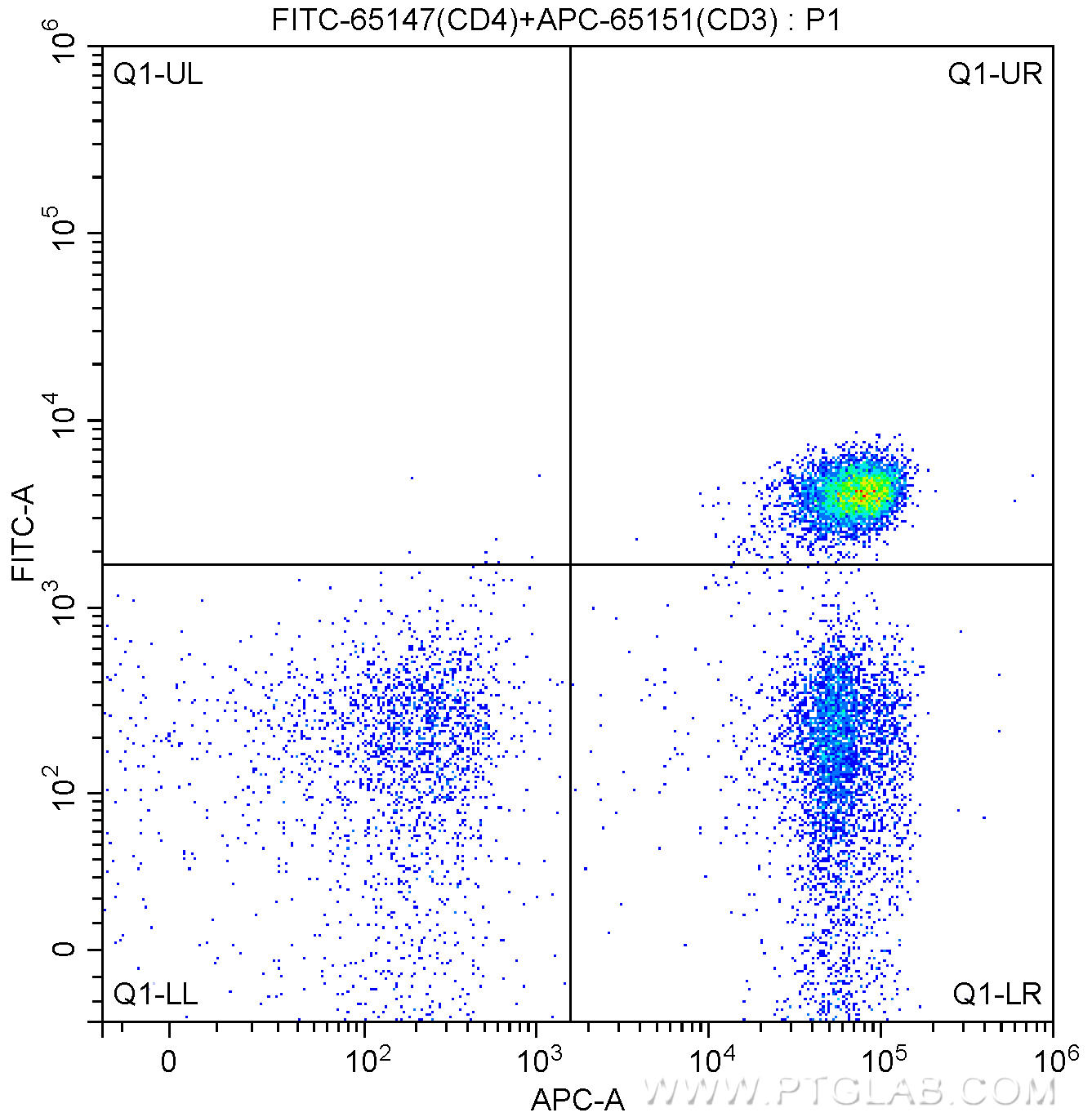

図1. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, clone UCHT1) and 5.00 ul/test FITC Anti-Human CD4 (FITC-65147, Clone:SK3). Sample were not fixed.

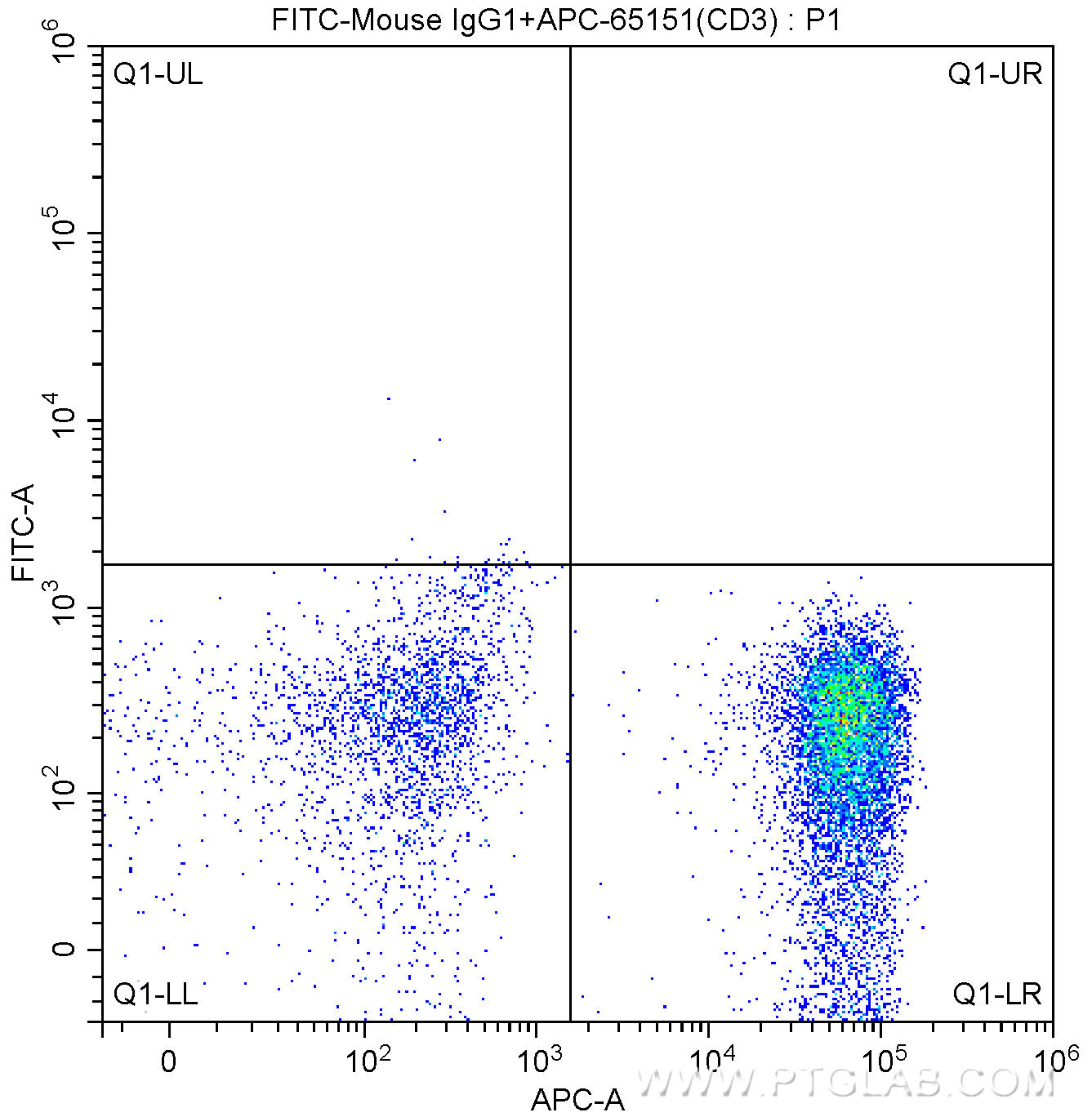

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, clone UCHT1) and FITC mouse IgG1 isotype control antibody. Sample were not fixed.
■ CD4 モノクローナル抗体(品番:APC-65147)

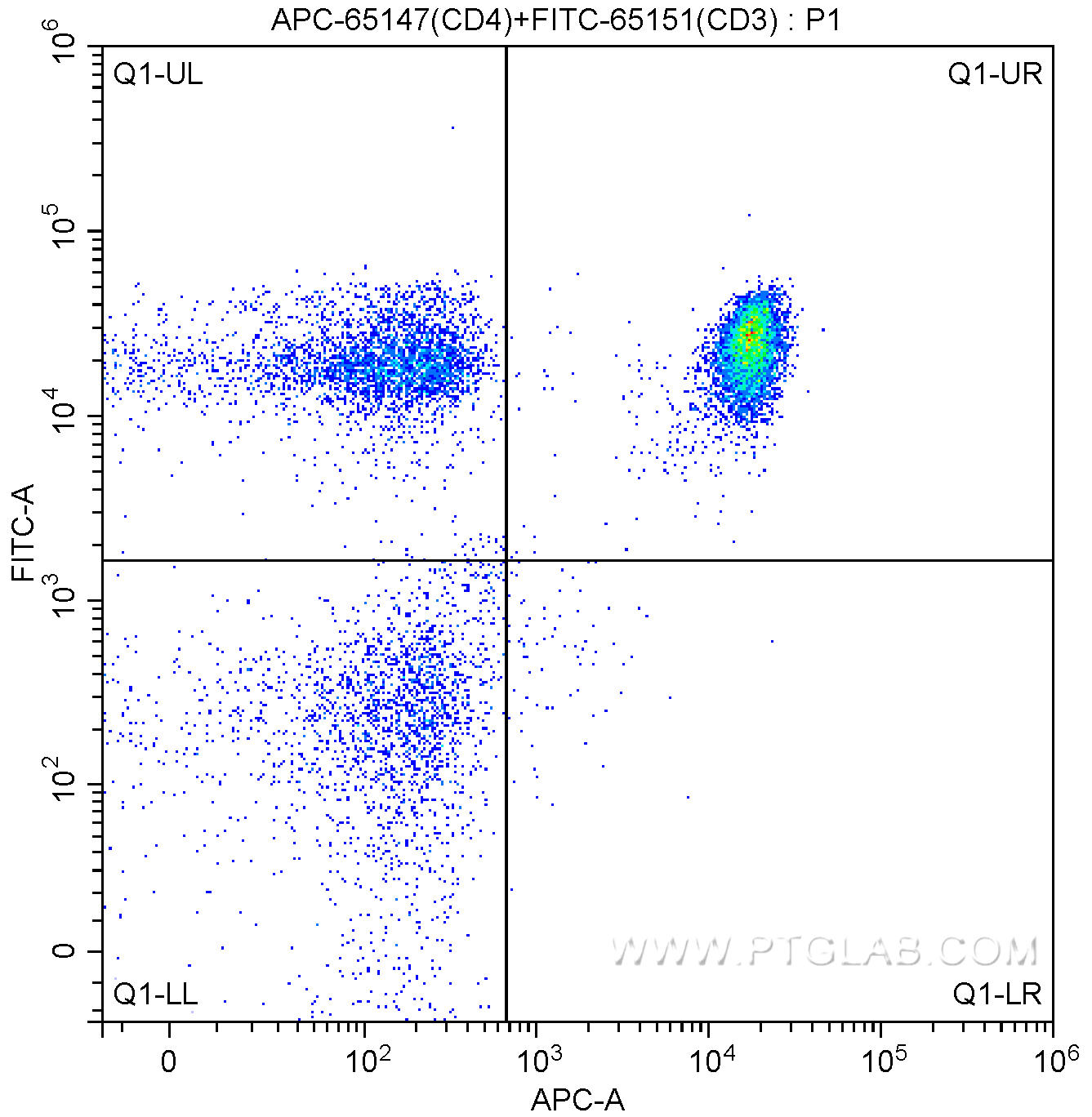

図1. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, clone UCHT1) and 5.00 ul/test APC Anti-Human CD4 (APC-65147, Clone:SK3). Sample were not fixed.

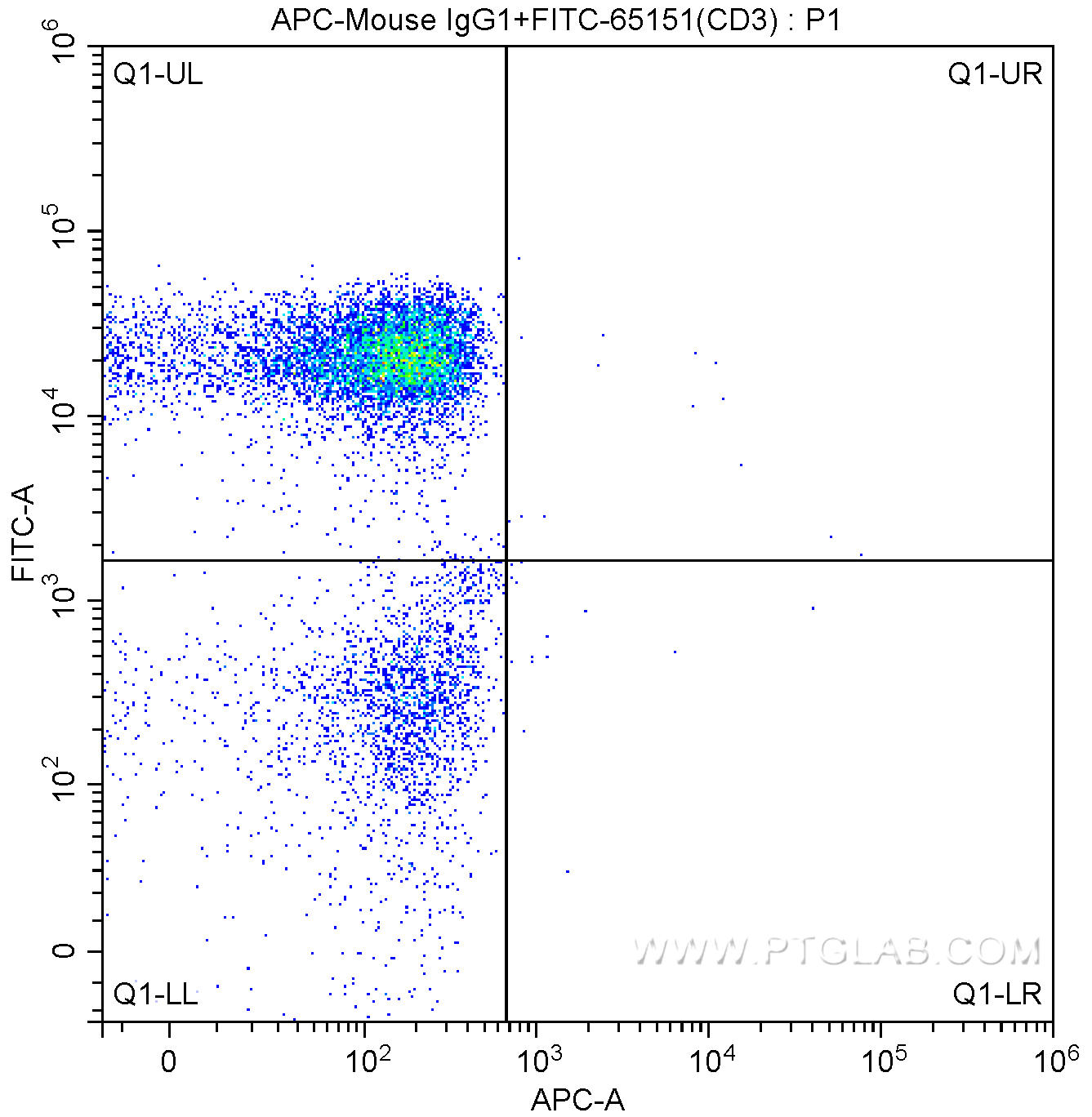

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, clone UCHT1) and APC mouse IgG1 isotype control antibody. Sample were not fixed.
■ CD4 モノクローナル抗体(品番:CL488-65147)

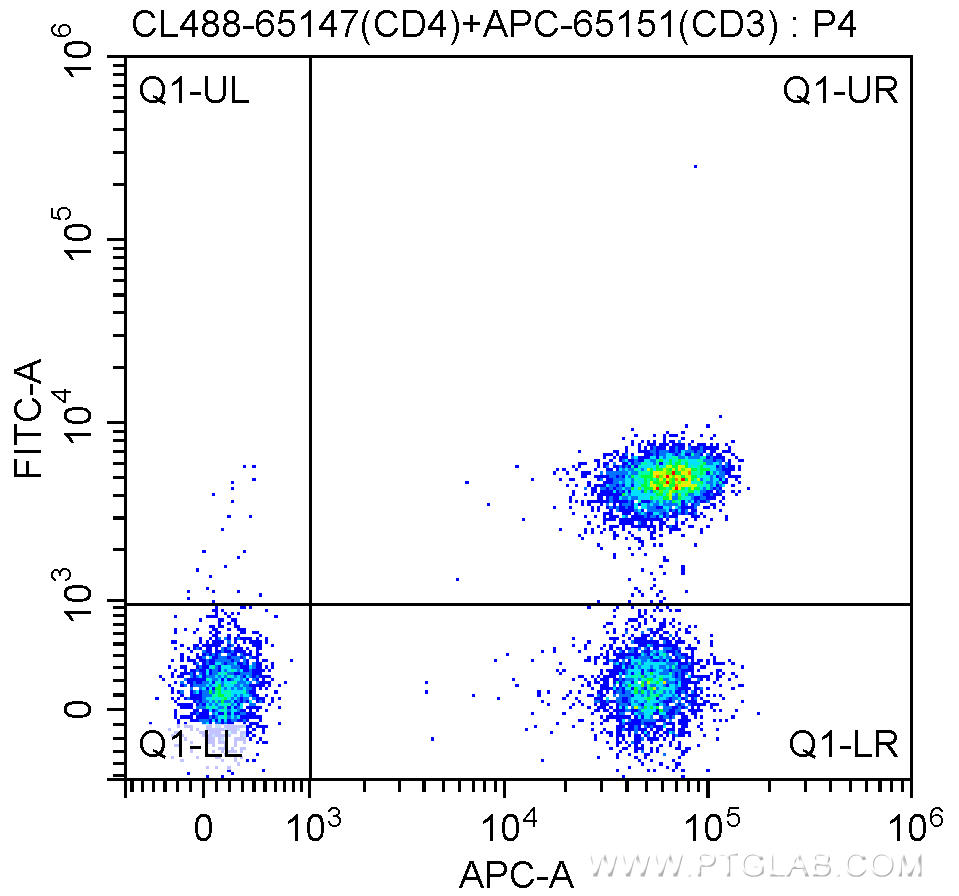

図1. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and 5.00 ul CoraLite®488-conjugated Anti-Human CD4 (CL488-65147, Clone: SK3). Cells were not fixed. .

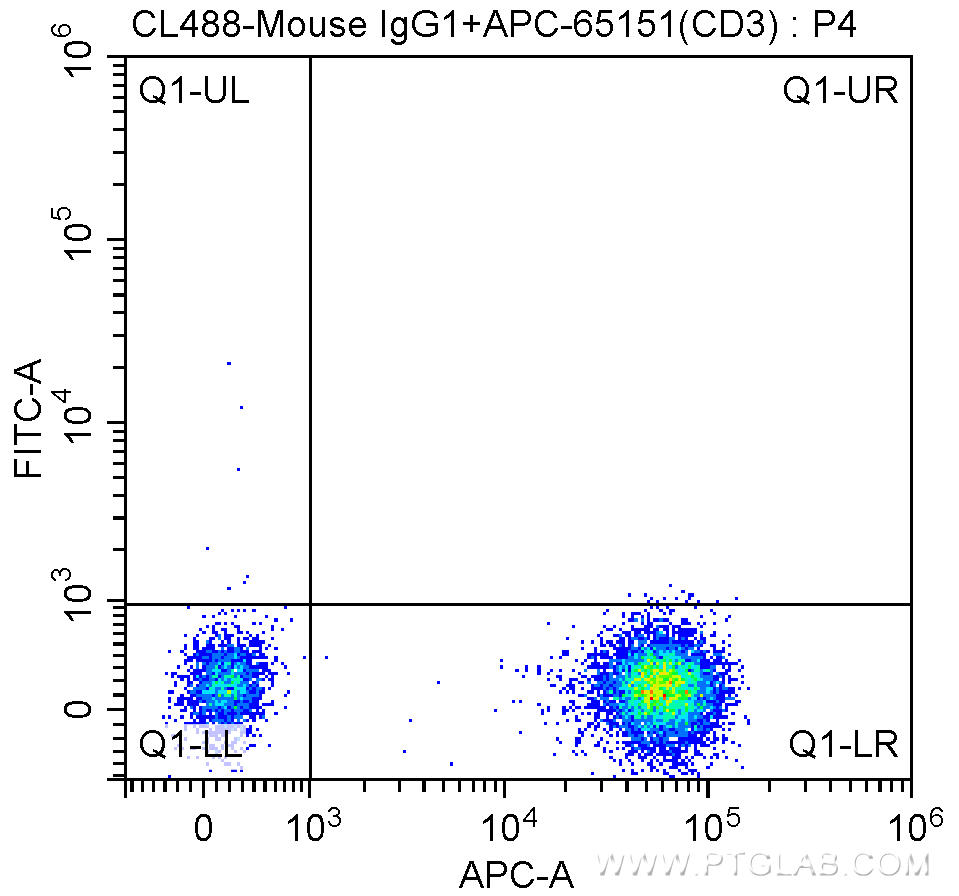

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with APC Anti-Human CD3 (APC-65151, Clone: UCHT1) and CoraLite®488-conjugated Mouse IgG1 isotype control antibody. Cells were not fixed.
■ CD4 モノクローナル抗体(品番:CL647-65147)

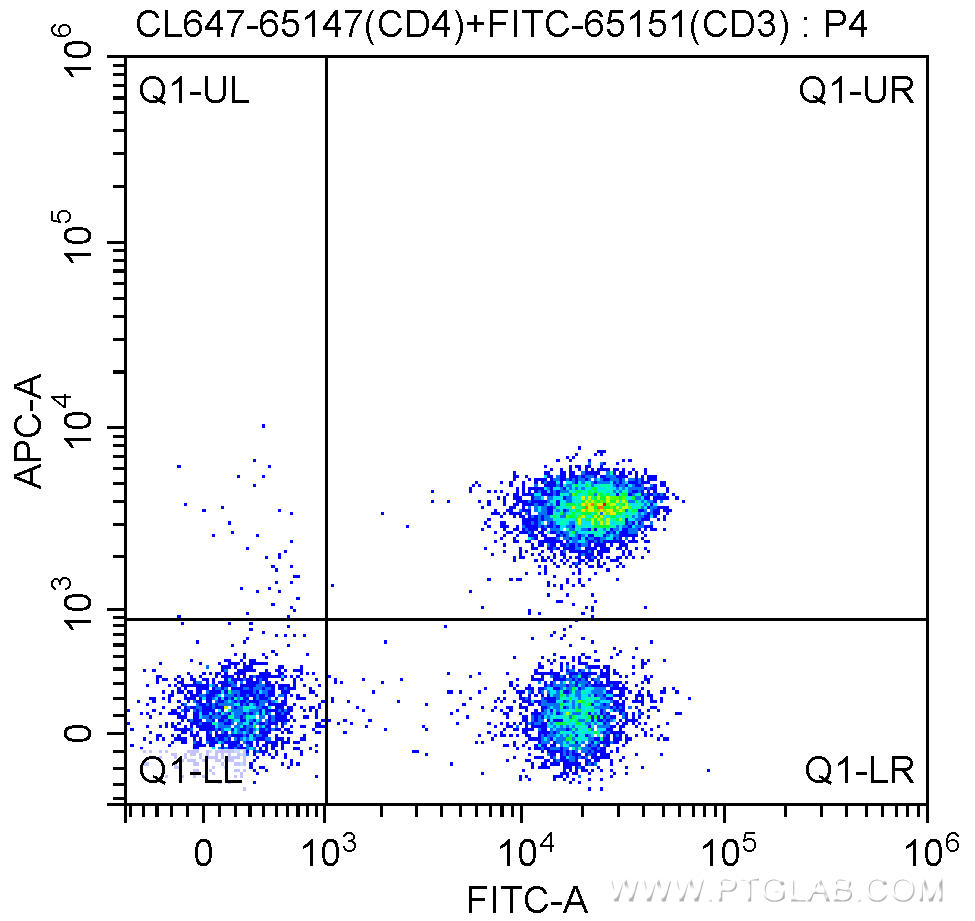

図1. CD4抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and 5.00 ul CoraLite®647-conjugated Anti-Human CD4 (CL647-65147, Clone: SK3). Cells were not fixed.

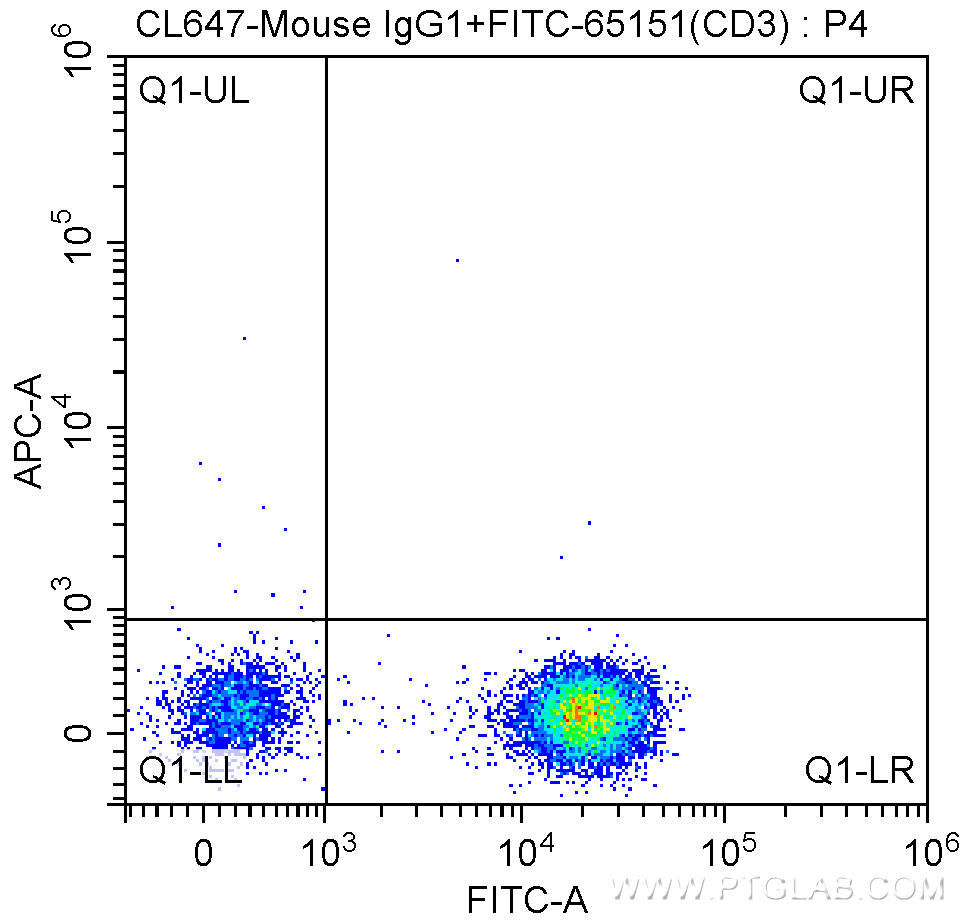

図2. アイソタイプコントロール抗体とCD3抗体を用いた細胞表面マーカー解析
1X10^6 human peripheral blood lymphocytes were surface stained with FITC Anti-Human CD3 (FITC-65151, Clone: UCHT1) and CoraLite®647-conjugated Mouse IgG1 isotype control antibody. Cells were not fixed.
